This kit provides for the installation of a 3/4" thick
custom grille panel to span the combined width of a
side by side installation. Use this kit in combination
with 3/4" custom panel kits, ZKTR36LH and ZKTR36RH.
Tools and materials Required:
• #1 and #2 Phillips screwdrivers or sockets
• 1/4" angled wrench and 1/2" open ended
wrench
• Drill and appropriate bits
• Custom grille panel
• Safety glasses
• Gloves to protect against
sharp edges

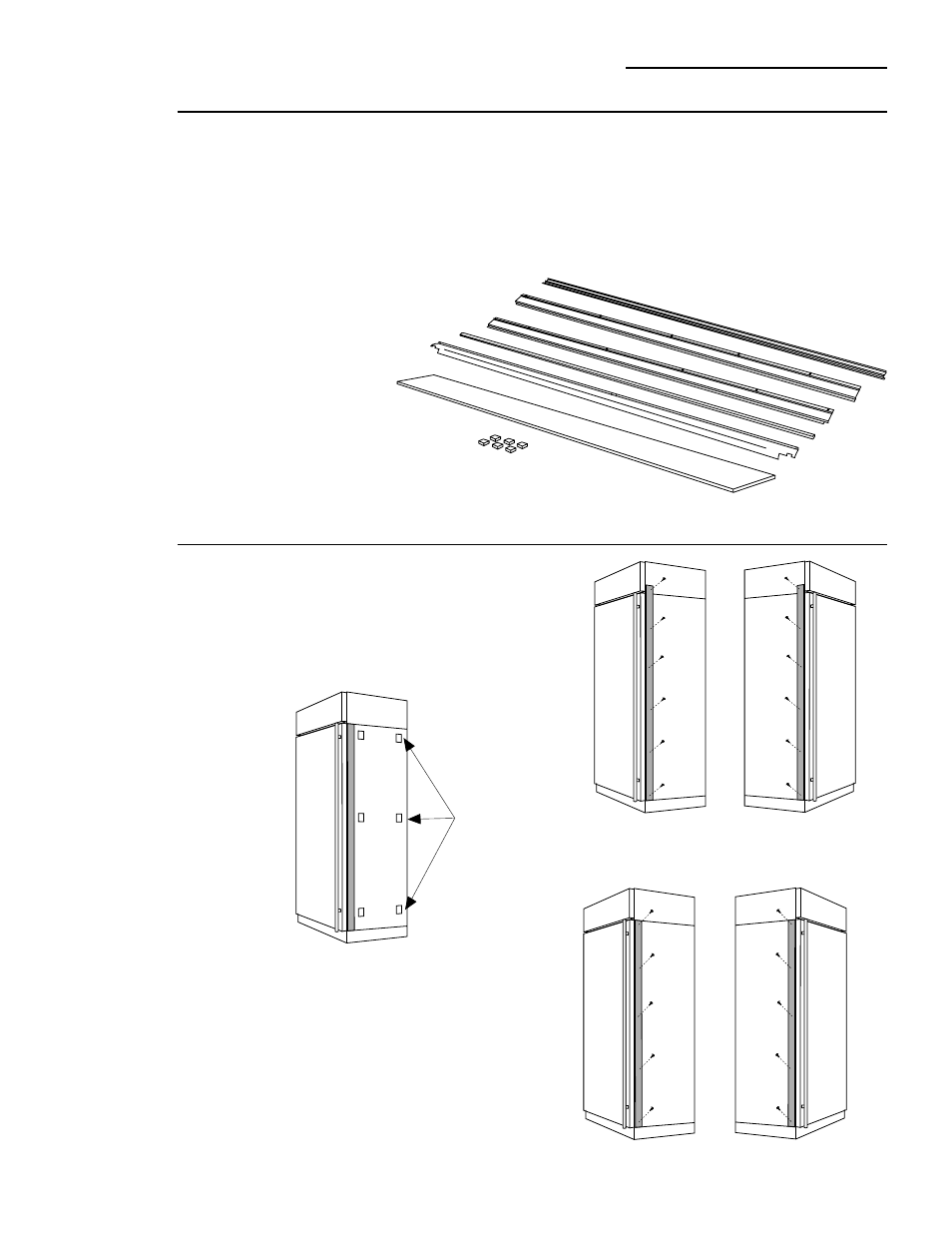

Parts List:
A. Soffit Vent Top
B. Left Side Case Trim
C. Right Side Case Trim
D. Center U-Shape Trim
E. Grill Base Wrap
F. Custom Grille Panel Support
G. Foam Spacer Pads
Completion Time: Allow approximately 3 hours to install
this kit.
IMPORTANT: 2 People are required to install this kit.
CAUTION: Disconnect power before you begin.
Step 1
Install
Spacer Pads,
Replace Side
Case Trims CAUTION: Handle parts with care to avoid scratching.
In a side by side installation, the inside case trim of
both products will be removed and replaced with a
shorter trim.
• Lift up to remove the supplied grille panel assembly
on both products. Discard both assemblies.
• Apply the supplied foam spacer pads to the mating
side of one product as shown.
• Remove the Phillips head screws from the inside case
trim of each product as shown. Remove and discard
side trim. Retain screws.
• Install new side case trim with notches towards the
bottom. Install with original screws.
Foam
Spacer
Pads
A
B
C
D
E
F
G
ZUG75 Trim Kit
Unified 3/4" Custom Grille Panel Kit
