24

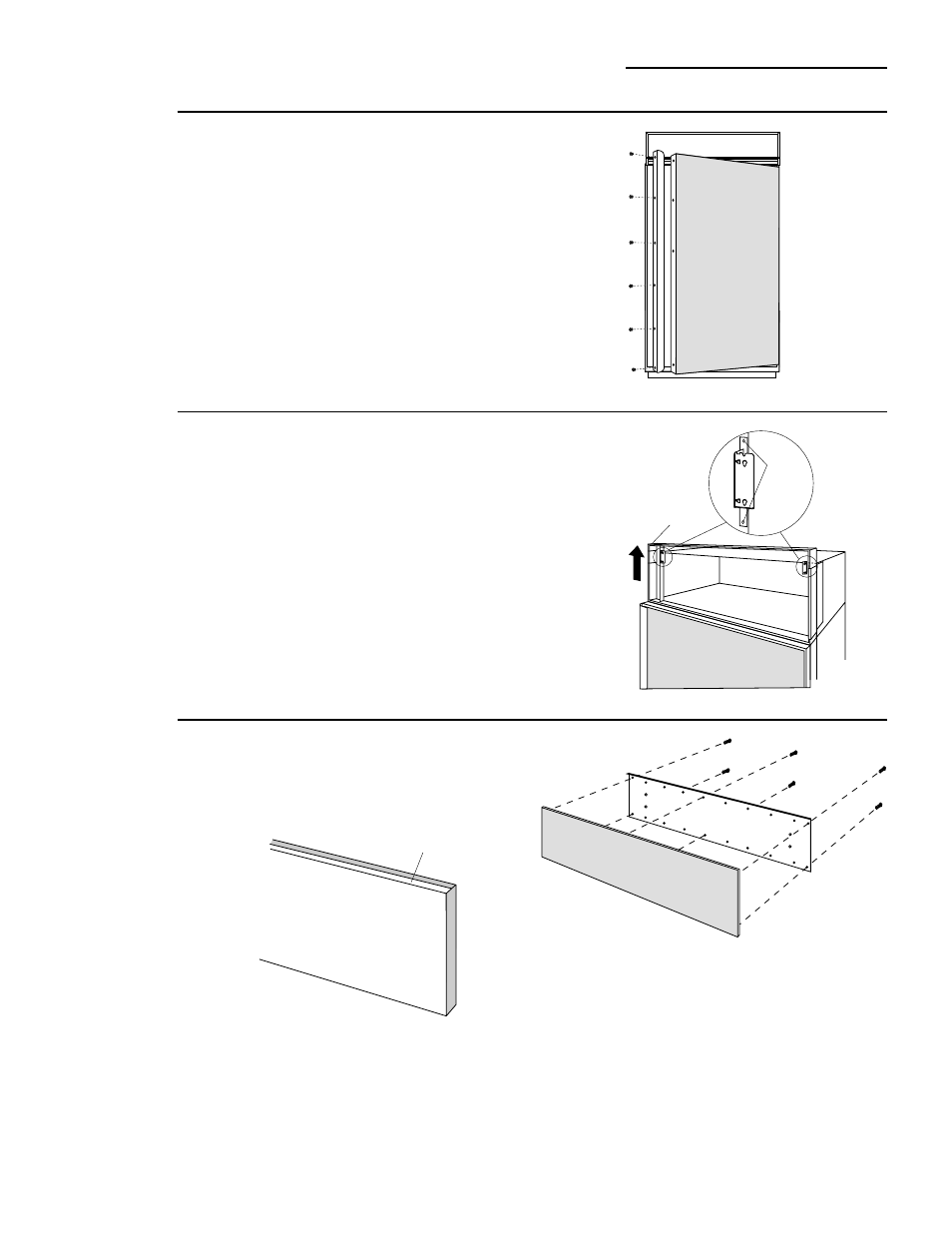

Step 5
Install
handles
Step 6
Adjust
grille
panel height
• Install new door handle using original screws.
• Secure the grille panel support to the back side of the
3/4" custom panel with #6 screws.
• Be sure the lip of the support is over the top of the
wood panel.
Step 7
Secure 3/4"
panel to
grille panel
support
• For shipping purposes, the top case trim is secured at
the 84" installation height.
• Loosen 2 screws on both sides of the case trim and
raise or lower trim to meet soffit height, from 83-1/2"
to 84-1/2".
• Tighten all 4 screws.
IMPORTANT: Maintain 1-1/2" min. gap between top of door
and bottom of grille panel.
Panel Support
Overlaps Top
Screws
Top Case Trim
Raise To
Installation
Height
ZKTR36LH/ZKTR36RH Trim Kit
3/4" Custom Panels
