Stud
Spacer
Block
Refrigerator
Cabinet
Door
37

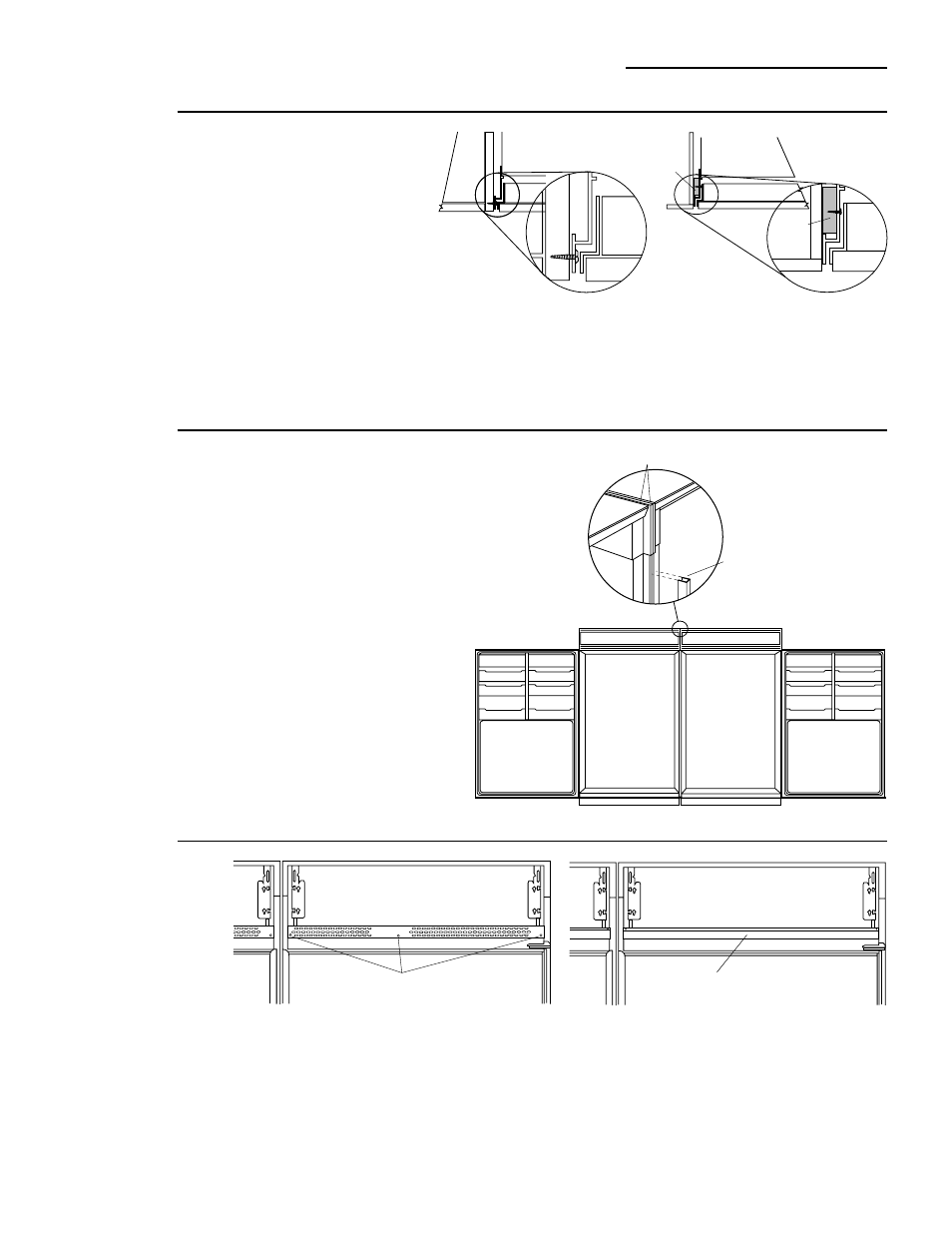

Step 5
Install Center
Trim Strip • Open doors fully.
• Starting at the top, press trim strip over inside case
trims of both products.
• Continue pressing trim until you reach the bottom of
the case trims. The trim will align with the top and
bottom of the case trim.
Case Trim
U-Shape
Trim
Step 6
Remove
Wire Fence
and
Switch Cover
• Remove 3 screws holding the wire fence on both
products. Retain fences and all screws.
Remove
3 Screws
Grill Base Cover
• Lift off grille base covers. Discard covers.
Step 4
Secure
Products
To Sides NOTE: This step can be used as
an alternative to Step 2, Anti-Tip
bracket installation, whenever
brackets cannot be used.
Whenever possible, perform
this step for additional anti-tip
security.
OR
When using 1/2" to 3/4" thick side panels, the front
flange of the case trim is attached to the side panel.
• Open door to access case trim.
• Drill hole in trim slightly below the interior opening.
• Drive screw through the trim and into the side panel.
• Follow the same procedure on the opposite outside
product trim.
If the product is installed between cabinets with no side
panels or into a custom enclosure, install a spacer
block as shown.
ZUG75 Trim Kit
Unified 3/4" Custom Grille Panel Kit
