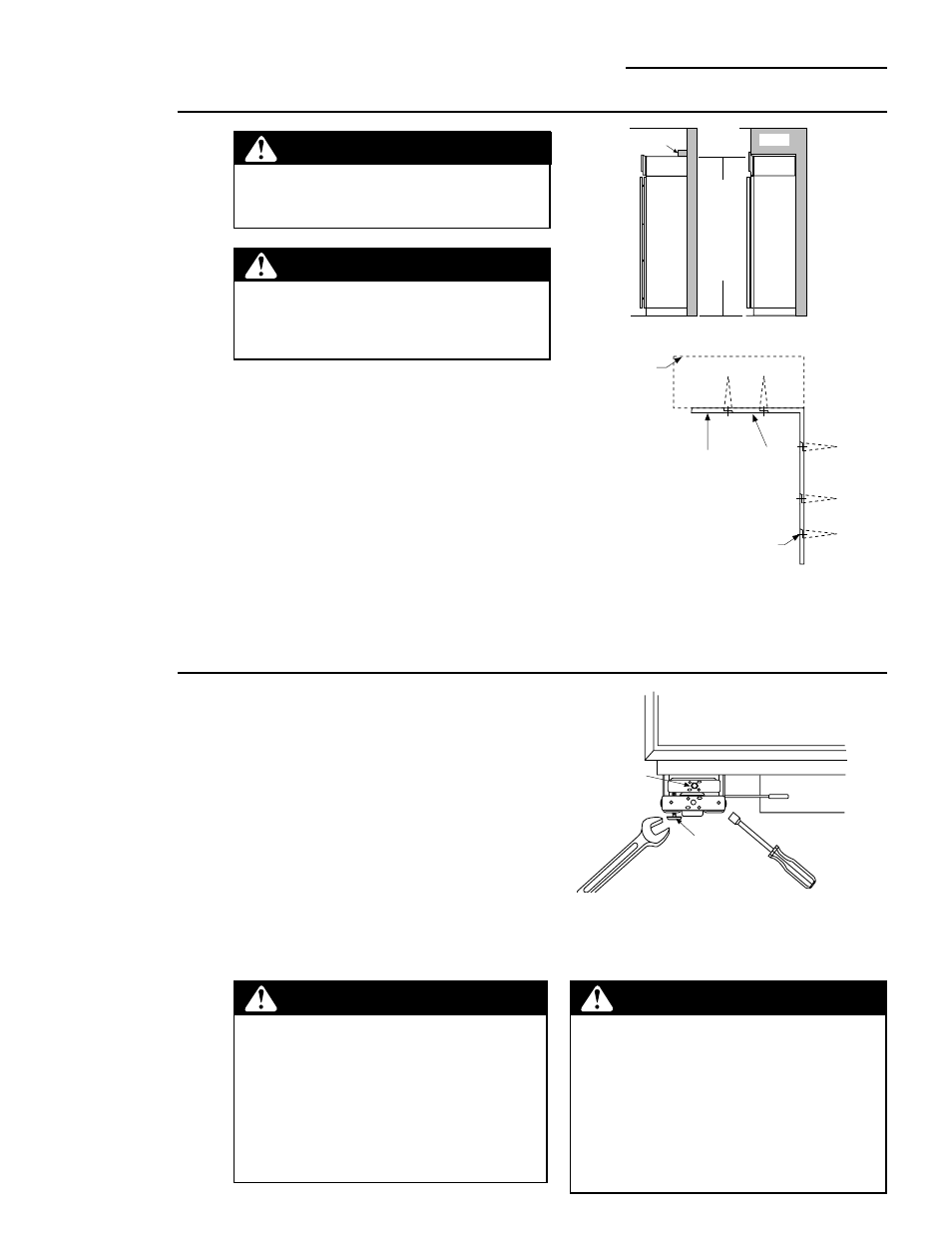

36
• Cut a 2"x4" block, 71" long. Secure the 2"x4" to the 4
mounting brackets provided using #12 or #14 wood
screws.
• Secure the brackets with wood block to the back
wall so that it is 84" (or your installation height) from
the finished floor. Use #12 or #14 wood screws. See
illustration.
• Screws must penetrate at least one inch into vertical
wall studs.
Roll Both Products into Opening
• Gently push each product into opening with hands
against front corners. Push back into the opening until
it is flush or semi-flush with adjacent cabinets.
Step 2
Install
Anti-Tip
Brackets
Step 3
Level Both
Products Both products MUST BE LEVEL AND PLUMB with each
other and adjacent cabinetry on each side. Toekick
heights should align with cabinetry.
• Adjust carefully. Both models have 4-point leveling.
The front is supported by leveling legs, the rear is
supported by wheels.
• Raise units to the same level, aligning with adjacent
toekick heights.
• Adjust rear wheels beneath the product to just barely
touch the 2x4 block.
• Turn the 7/16" hex nut located above the front wheels
to raise or lower the back of the refrigerator.
• To adjust the front leveling legs: Use a 1/4" angled
wrench to turn the top of the leveling leg, or turn the
bottom of the legs with a 1-1/4" wrench.
IMPORTANT NOTE: When the products are installed
under a soffit or if there is not enough height for this
method of security, use Step 4 as an alternative. The
refrigerator and freezer must be secured to prevent
tipping.
Leveling Leg
Hex Nut Adjusts
Rear Wheels
Units must be 1" apart and evenly aligned at top
and bottom. The inside case trims must align, top and
bottom.
Mounting
Bracket
2 x 4 Cut
71" Length
Installation
Height
From Floor
Screws Mounted into
Vertical Wall Studs
Block
Soffit
Side View
Height
From
Floor
to
Bottom
of Wood
Block
Brackets
Required
Brackets
Not Required
Beneath a
Soffit
CAUTION PRUDENCE
The rear leveling wheels and front leveling legs
are limited to a maximum height adjustment of 1".
If the installation requires more than 84-1/2" height,
the installer should elevate the refrigerator on a
sheet of plywood or runners. Cabinetry trim could
also be added across the top of the opening to
shorten the opening. If you attempt to raise the
refrigerator more than 1", you will damage
the front leveling legs and the rear leveling
wheels. Les roues de nivellement arrière et les pattes de
nivellement avant permettent un réglage maximal
de 25 mm (1 po). Si l’ouverture pour le réfrigérateur
a une hauteur supérieure à 2,15 m (84-1/2 po),
l’installateur doit élever le réfrigérateur sur une
feuille de contre-plaqué ou des glissières. Il est
également possible d’ajouter des baguettes de
finition des placards sur le haut de l’ouverture afin
de la réduire. Lever le réfrigérateur de plus de 25
mm (1 po) endommage les pattes de nivellement
avant et les roues de nivellement arrière.
ZUG75 Trim Kit
Unified 3/4" Custom Grille Panel Kit
PRECAUTIONS CONTRE LES BASCULEMENTS
Le réfrigérateur est beaucoup plus lourd en haut et il
faut le maintenir en place pour éviter la possibilité
de son basculement vers l’avant.
ATTENTION
ANTI-TIP PRECAUTIONS
These products are heavy at the top and must be
secured to prevent the possibility of tipping over.
WARNING
