3
Design Information
36" Refrigerators, Freezers
Flush or
Semi-Flush
Enclosure
Installations
Side Panel Requirements:
• Side panels are not required whenever the
refrigerator is installed into an enclosure or between
pantry and oven cabinets.
• Side panels are required whenever the sides of the
refrigerator are exposed.
• Side panel sizes vary depending on the type of
installation being made.
To accomplish an attractive installation, you must:
1. Determine the need for side panels.
2. Determine side panel thickness.
3. Order matching side panels from the cabinet
manufacturer. Be sure to provide the exact
dimensions.

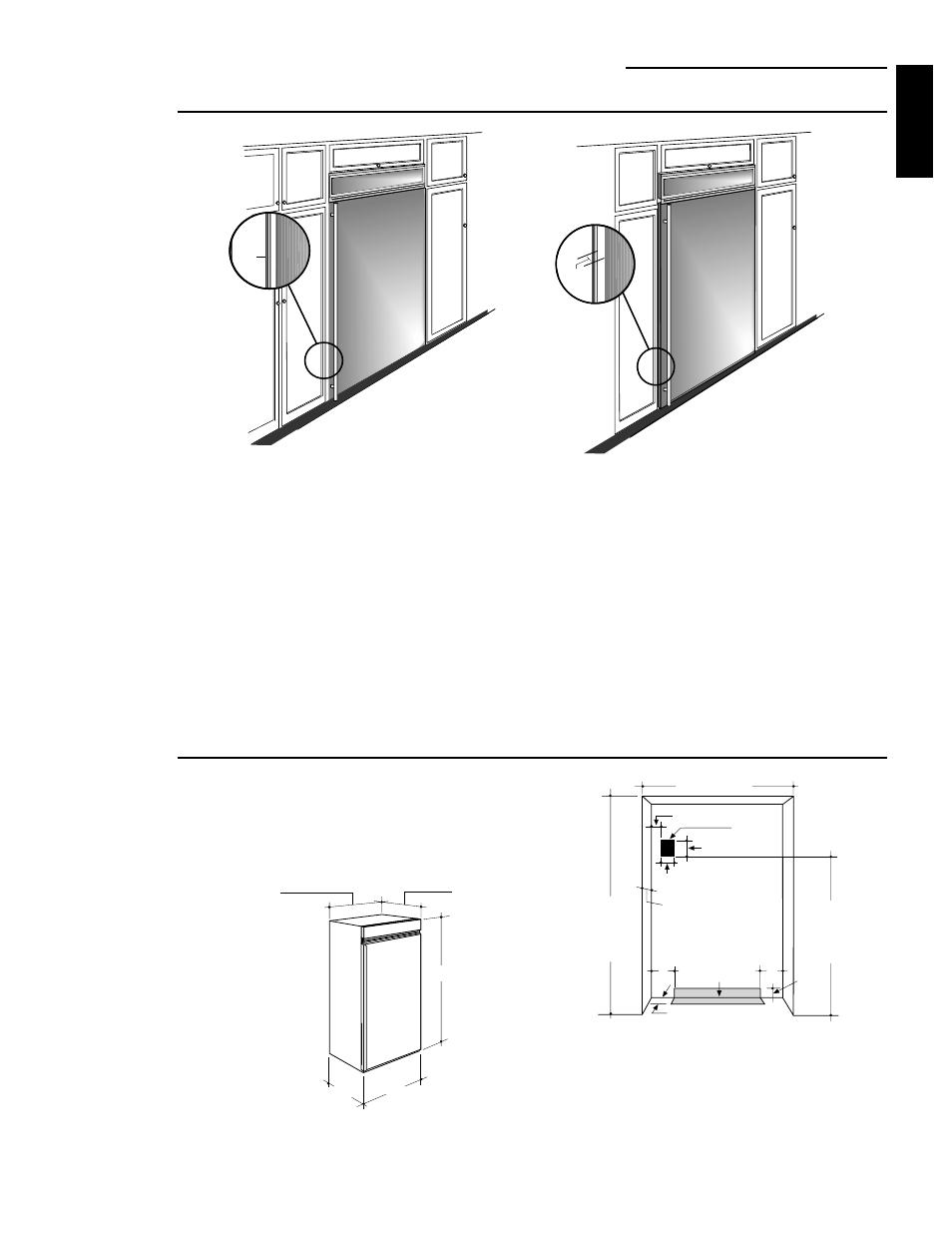

True Flush Installation
In a flush installation,
the refrigerator doors
will align evenly with the front
face of adjacent cabinet doors.
The refrigerator blends into the
surrounding cabinetry.
Semi-Flush Installation
These refrigerators
can also be installed
semi-flush into an enclosure
using the minimum cutout
width. The case trim creates a
frame around the opening.
Monogram built-in refrigerators and freezers can be
installed flush with typical 24-3/4" deep cabinetry.
When installed semi-flush, the case trim will conceal
slight gaps around the enclosure. The refrigerator or
freezer will project forward approximately 3/4" beyond
the front face of surrounding cabinetry.
In any installation situation, a wide range of appearance
options can be accomplished through the use of one or
more trim kits. See trim kit descriptions and appearance
options on page 6.
Enclosure
Cutout and
Product
Dimensions • To achieve a flush fit the finished cutout width must be
at least 36" wide.
• A semi-flush installation requires 35-1/2" min. finished
cutout width.
• The electrical and water locations must be located as
shown for either type of installation.
*36" Min. for a flush installation
35-1/2" Min. for a semi-flush installation
NOTE: Additional cutout width may be required when
side panels are used. Add side panel thickness to
the finished cutout to calculate rough-in width.
See installation examples on the following page.
Advance Planning
*Shipped at 84" installation height.
Can be adjusted to 83-1/2" or 84-1/2" with grille panel kits.
0"
3/4"
36"
Frame to Frame
84"*
26-1/4"
Including
Handle
35"
Case
Width
24-3/4"
Case
Depth
75" From Floor
to Bottom
of Electrical
Area
84 1/2" max
83 1/2" min
Finished
Opening
*Finished Width
Electrical
Area
5" 5"
3 1/2"
24 3/4" Total
Depth
Water Supply
3 1/2"
Wall View 2 1/2"
5"
6"
