29

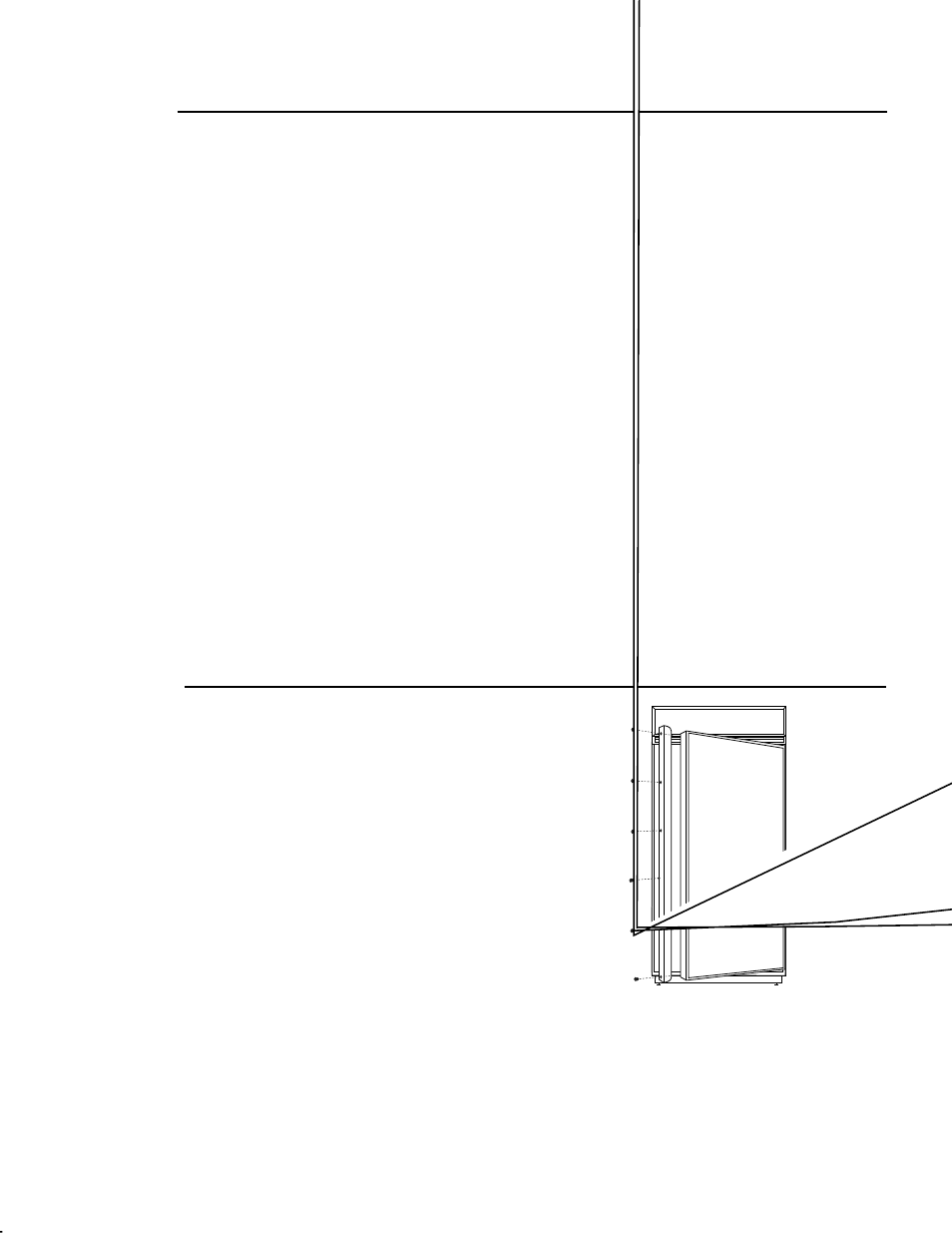

Step 1
Remove
handle
Right hand door swing models are illustrated in these
instructions. Follow these instructions for left hand
models.
NOTE: It is best that 2 people install this kit.
Tools and materials required:
• #2 Phillips screwdriver
• Drill and appropriate bits
• Custom door panel
• Safety glasses
• Center punch
• Masking tape
• Hammer
• Pencil
• 1/2" thick 12" x 12" min. piece of plywood to protect
floor when drilling
• For stainless steel panel, wear gloves to protect
against sharp edges.
Parts List:
A. Handle extrusion (for left hand models)
B. Handle extrusion (for right hand models)
C. Door handle
D. 6 Spacer rings (for Stainless Panels ONLY)
(4 required, 2 extra)
E. 4 Handle standoffs
F. 6 Screws for mounting handle standoffs
(4 required, 2 extra)
G. 6 Set screws (4 required, 2 extra)
H. 3/32" Allen wrench for set screws
This kit provides for the installation of a Tubular
Stainless Steel handle on 1/4" thick decorator door
panel. The door extrusions allow the handle to be
secured to the door structure, rather than to the
custom panel.
• Select extrusion for your model, discard other
extrusion.
• Open fresh food door to 90°. Remove the screws from
the full-length handle.
• Retain screws, discard handle.
