Custom Door Panel Dimensions Using Standard Trim
1/4" thick panels
or
Panels secured to 1/4" thick backing
ZIR36N Refrigerator
ZIF36N Freezer
• 1/4" Panel: Cut panels to size.
• Custom handle with 1/4" door panel requires Trim kits
ZKHR1 or ZKHRSS1 for tubular stainless steel handles.
Standard Trim with Panels secured
to 1/4" thick backing
• Applying a raised panel design to a 1/4" thick backing
(screws or glued): Cut 1/4" thick panels to size.
Fabricate the raised panel to permit at least 2" fingertip
clearance of the standard handle. 1-1/4" clearance
from the hinge side to avoid striking adjacent
cabinetry and 5/16" from the top and bottom edges to
allow for the trim flange.
NOTE: ZKHTR1 custom handle kit cannot be used in this
configuration.
IMPORTANT: Maximum total weight for assembled
door panel is 67 lbs., maximum grille panel weight
is 9 lbs.
Installation Height Panel Height
83-1/2" 7-1/2"
84-1/2" 8-1/2"
The grille panel frame is factory assembled for 84"
installation height. If installation height varies, order
ZGC2 trim kit that provides optional side trim pieces.
Cut grille panel to sizes shown below.

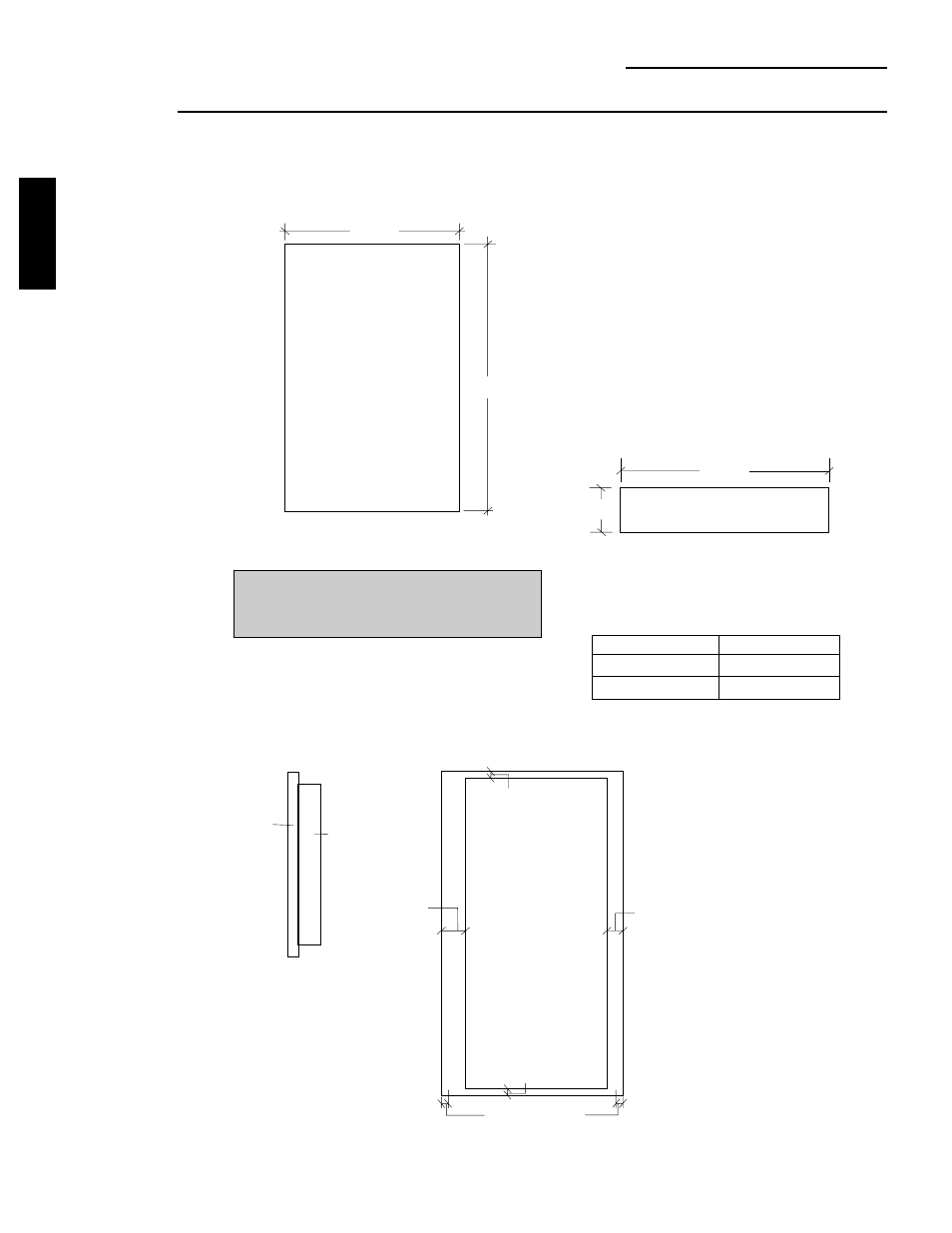

35 1/8"
8" 1/4" Thick Panel
Custom Grille Panel
1-1/4"
Clearance
hinge side
Appearance
Panel
1/4"
Thick
Backing
Raised Panel on 1/4" Thick Backing
Using Standard Handles
2" Clearance
handle Side
Raised Panel
on 1/4" Thick
Backing With
Standard
Handles
5/16" Clearance
5/16" Clearance
5/16" Clearance
1/4" Thick
Custom Panel
35-1/16"
68-7/8"
CUSTOM P
A
NEL
DIMENSIONS
Custom Panel Dimensions
36" Refrigerators, Freezers
