5

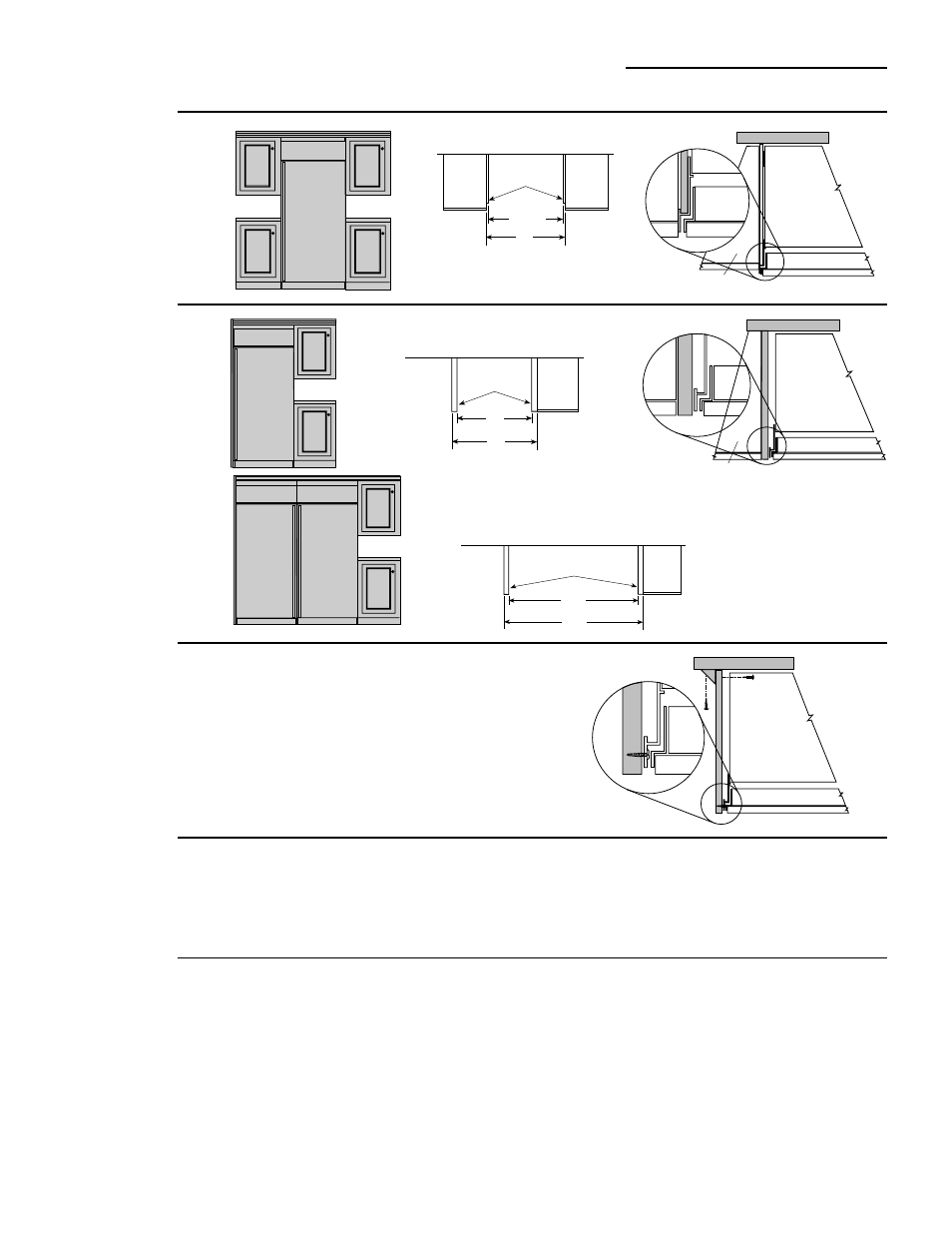

Installation
At End-of-Run
Frameless
Cabinets
NOTE: 1/2" thick side panels shown.
Side panels can be any thickness.
Add side panel thickness to outside
trim width, (36” or 72" for two
models) to calculate the rough-in
dimension. The leading (front)
edge must be finished to match
surrounding cabinetry.
Side panels, 1/2" minimum thickness are required when
using frameless cabinets. The side panel acts as a
spacer between the cabinet and the case trim and
prevents interference with cabinet door swing. The
leading (front) edge must be finished to match
surrounding cabinetry.
1/2" To 3/4" Side Panels. Leading
Edge Flush With Cabinet
Accessory
Panel Kits These refrigerators and freezers require field installed
door and grille panels. The factory installed trim will
accept accessory panel kits. White or black Lexan
® and
stainless steel kits are available. Panels are cut to size
and ready to install. Panel kits must be ordered
separately.
ZWBR36, Black Lexan ® Panels
ZWWR36, White Lexan ® Panels
ZWSR36, Stainless Steel Panels
Refrigerator or Freezer
Refrigerator and Freezer
installed side-by-side
These refrigerators and freezers are designed to be
customized with decorator door and grille panels. Field
installed custom door and grille panels are required.
Door and grille panel sizes vary to accommodate the kit
being used. Sizes are provided in this booklet.
CAUTION: Maximum door panel weight is 50 pounds.
Side panels must be used whenever the sides of the
refrigerator will be exposed. Side panel sizes vary
depending on the installation.
Advance
planning
exterior
appearance
options 3/4" thick custom panels-Without trim kits
A raised panel design, screwed or glued to a 1/4" thick
backing can be used. See page 8.
You should:
1. Select the appearance option.
2. Order the trim kit for that option.
3. Order the custom door and grille panels from the
cabinet manufacturer. The exact dimension for each
trim kit application is provided in this booklet. Find
and pull out the page for your application and fax or
send it to the cabinet manufacturer.
4. Determine the final installation situation and order
matching side panels.
73"
1/2" Thick
Side Panels
72" Finished Dim.
Rough-In Dim.
Refrigerator
Cabinet
Refrigerator door
37"
1/2" Thick
Side Panels
36" Finished Dim.
Roughed-In Dim.
Installation
Between
Base and
Wall Cabinets
NOTE: 1/4" thick side panels can be inserted into
the case trim, making the rough-in the same as
the outside trim width, 36”.
Refrigerator or Freezer
1/4" Thick
Side Panels
35-1/2" Finished Dim.
36" Rough-In Dim.
Cabinet
Refrigerator
Cabinet
Refrigerator door
Cabinet
Door
Refrigerator
Cabinet
Design Information
36" Refrigerators, Freezers
