Genie Z-45 - Manual (Page 9)

Part No. 82600 Genie Z-45/25 & Genie Z-45/25J 7
Operator's Manual Second Edition · Second Printing
Controls

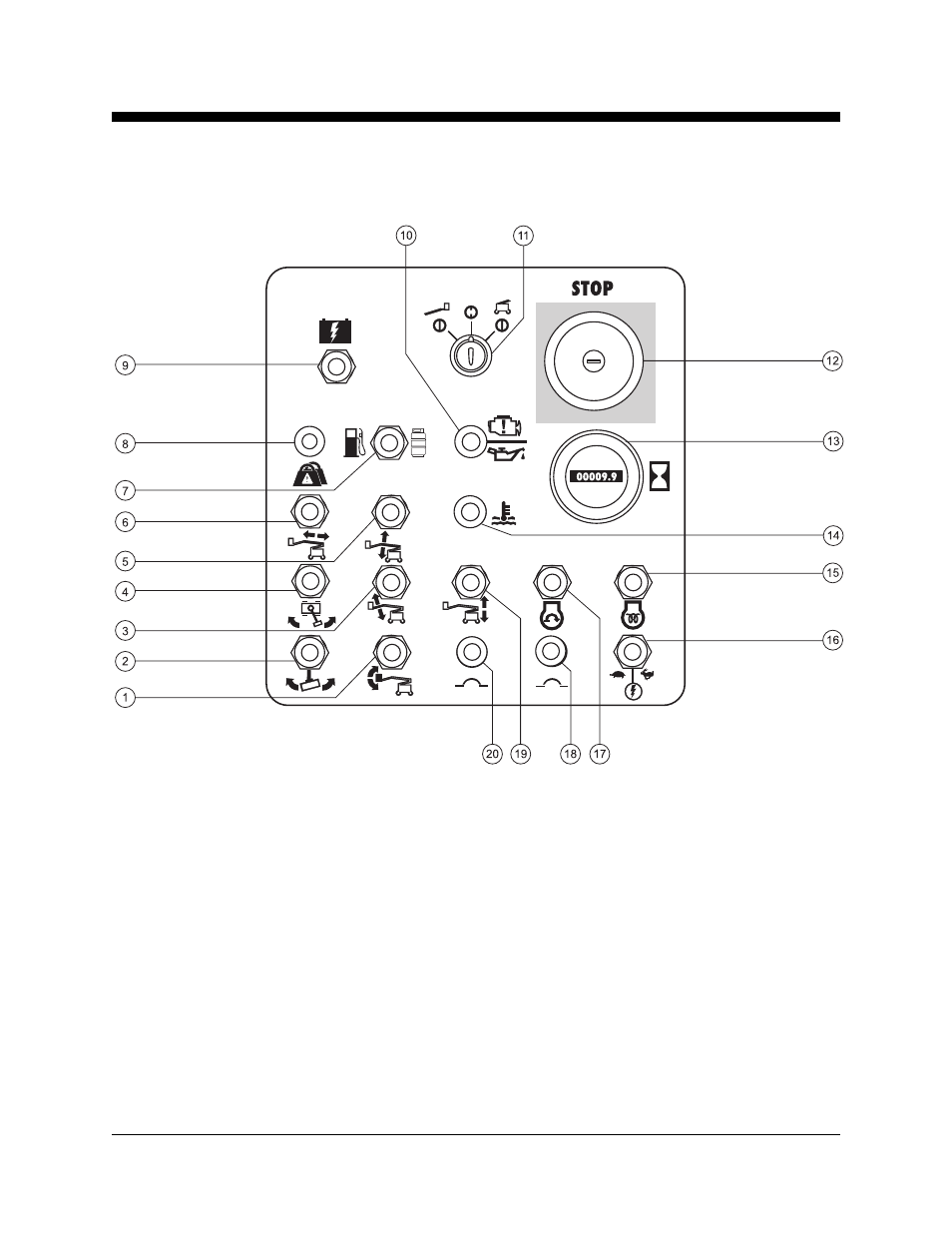

Ground Control Panel
1 Platform level switch
2 Platform rotate switch
3 Z-45/25J models only: Jib boom up/down switch
4 Turntable rotate switch
5 Primary boom up/down switch
6 Primary boom extend/retract switch
7 Gasoline/LPG models: Fuel select switch
8 Platform overload indicator light (if equipped)
9 Auxiliary power switch
10 Gasoline/LPG models: Check engine light
Diesel models: Oil pressure light
11 Key switch for platform/off/ground selection
12 Red Emergency Stop button
13 Hour meter
14 Diesel models: Water temperature light
15 Diesel models: Glow plug switch (if equipped)
16 Function enable switch
17 Engine start switch
18 15A breaker for engine electrical circuits
19 Secondary boom up/down switch
20 15A breaker for control electrical circuits
