Part No. 82600 Genie Z-45/25 & Genie Z-45/25J 37
Operator's Manual Second Edition · Second Printing

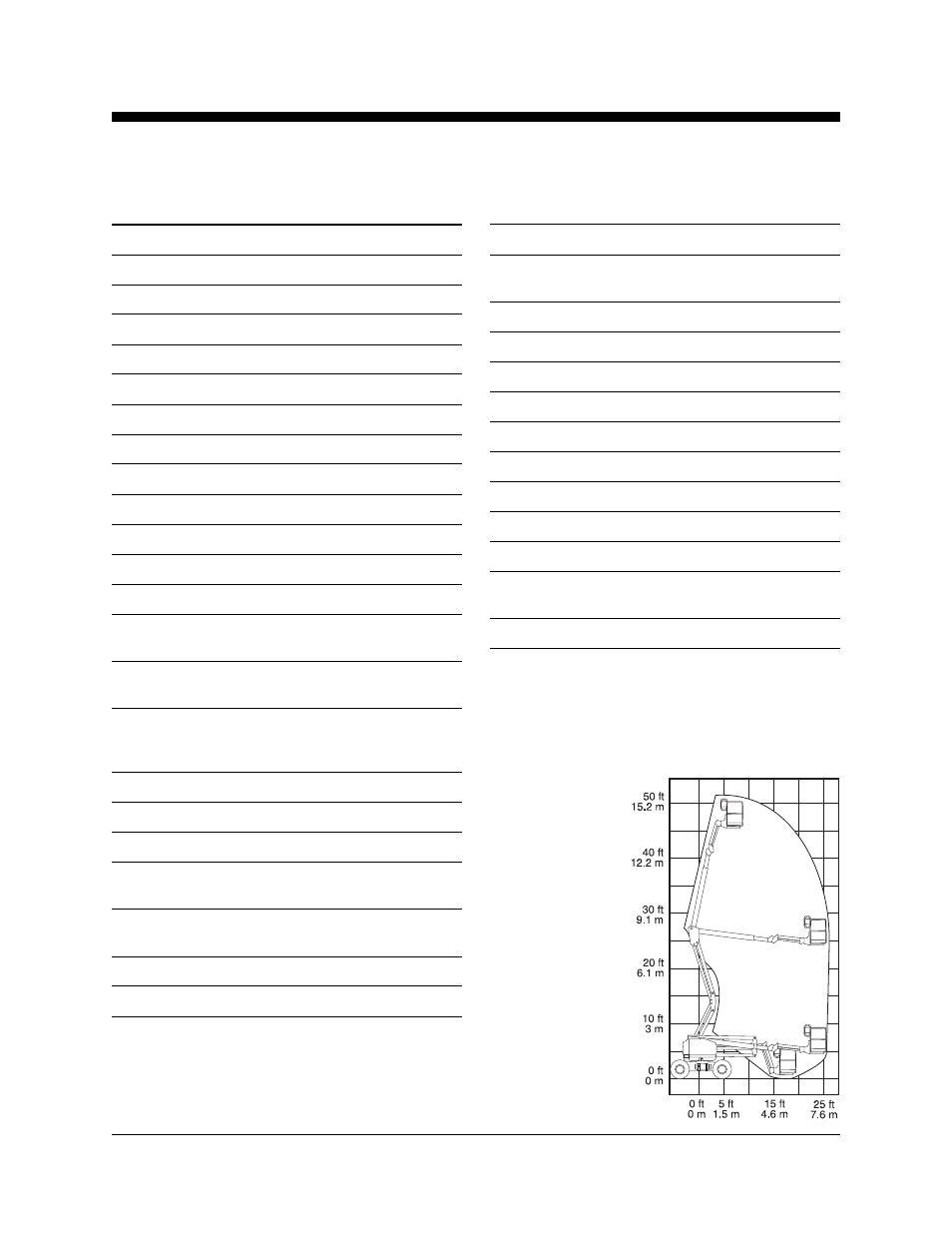

SPECIFICATIONS
Standard Base Models Z-45/25J (jib)
Height, working maximum 51 ft 6 in 15.69 m
Height, platform maximum 45 ft 6 in 13.8 m
Height, stowed maximum 6 ft 10 in 2.1 m
Horizontal reach maximum 25 ft 3 in 7.7 m
Width 7 ft 4 in 2.2 m
Length, stowed 22 ft 3 in 6.8 m
Maximum load capacity 500 lbs 227 kg
Wheelbase 6 ft 8 in 2.0 m
Turning radius (outside) 15 ft 4.5 m
Turning radius (inside) 4 ft 6 in 1.4 m
Turntable rotation (degrees) 359°
Turntable tailswing 0 in 0 cm
Drive speed, stowed 4.8 mph 7.7 km/h
40 ft/6 sec 12.2 m/6 sec
Drive speed, 0.6 mph 1 km/h
booms raised 40 ft/45 sec 12.2 m/45 sec
Airborne noise emissions 73 dB
Maximum sound level at normal operating workstations
(A-weighted)
Ground clearance, center 13.25 in 33.6 cm
Ground clearance, minimum 10 in 25.4 cm
Controls 12V DC proportional
Weight See Serial Plate
(Machine weights vary with option configurations)
Platform dimensions, 6 foot 72 in x 30 in
(length x width) 1.8 m x 76 cm
Platform leveling self-leveling
Platform rotation 160 degrees
AC outlet in platform standard
Hydraulic pressure, maximum 3200 psi 221 bar
(boom functions)
System voltage 12V
Tire size, 4WD & 2WD RT 14-17.5 14 ply
Gradeability, stowed, 2WD 30 %
Gradeability, stowed, 4WD 45 %
Fuel tank capacity 17 gallons 64.3 liters
Floor Loading Information
GVW+Rated Load 14,500 lbs 6577 kg
Axle load, maximum 11,600 lbs 5260 kg
Wheel load, maximum 7200 lbs 3265 kg
Localized pressure per tire 50 psi 3.51 kg/cm 2
345 kPa
Occupied floor pressure 199 psf 10.75 kPa
Note: Floor loading information is approximate and
does not incorporate different option configurations. It
should be used only with adequate safety factors.
Continuous improvement of our products is a Genie policy. Product
specifications are subject to change without notice or obligation.
