Genie Z-45 - Manual (Page 11)

Part No. 82600 Genie Z-45/25 & Genie Z-45/25J 9
Operator's Manual Second Edition · Second Printing

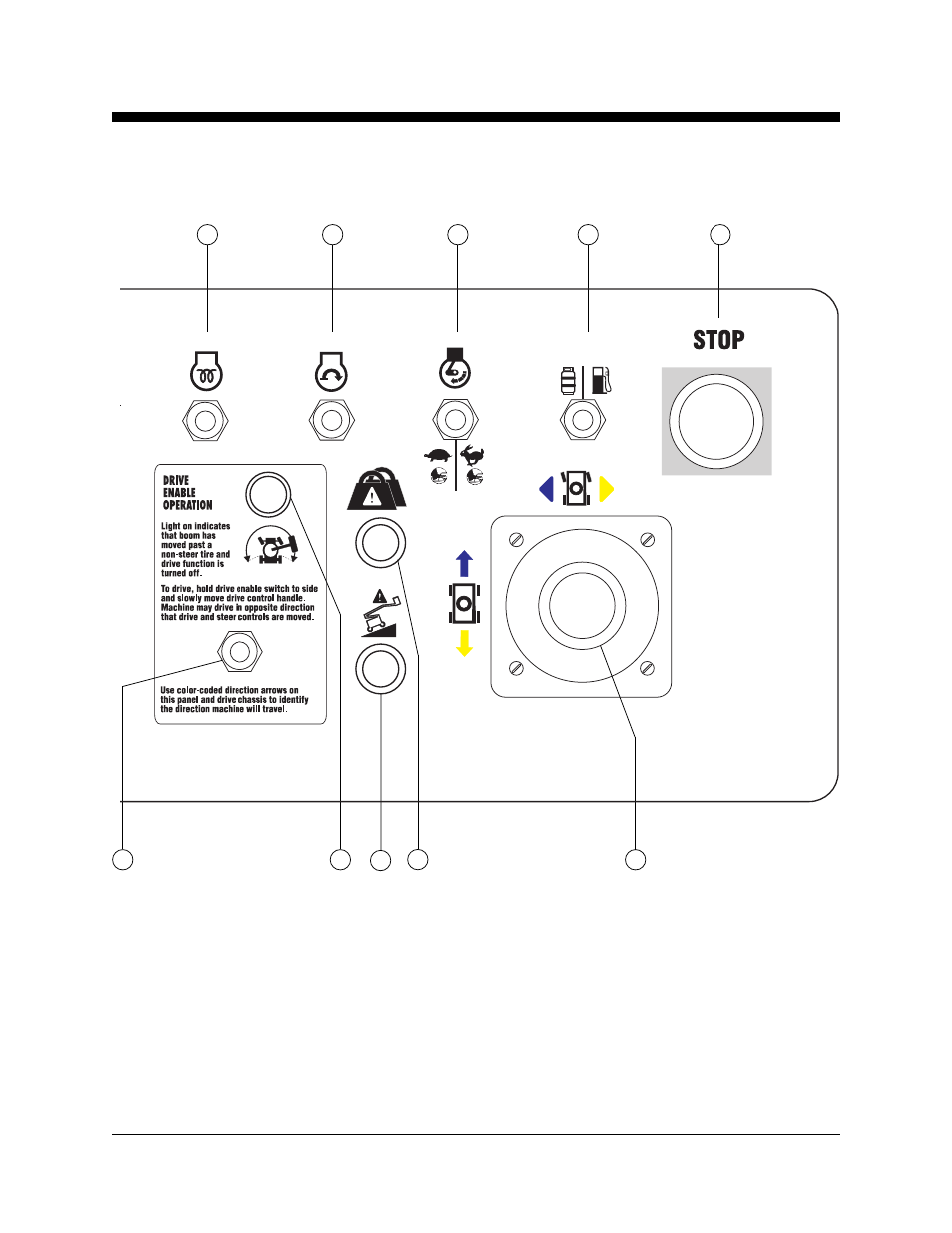

CONTROLS
11 Red Emergency Stop button
12 Dual axis proportional control handle for drive
and steer functions
OR Proportional control handle for drive function
and thumb rocker for steer function
13 Platform overload indicator light (if equipped)
14 Machine not level indicator light (if equipped)
15 Drive enable indicator light
11 7 8 9 10
12 16 15
16 Drive enable switch
17 Proportional control handle for secondary boom
up/down function
18 Primary boom extend/retract switch
19 used for optional equipment
20 Dual axis proportional control handle for primary
boom up/down and turntable rotate
left/right functions
13 14
