GS
TM
-2032 -2632
SELF-PROPELLED SCISSOR LIFTS
MODELS GS TM -2032 GS TM -2632
GS32 3.5K 0605A. Part No. 109378 www.genieindustries.com

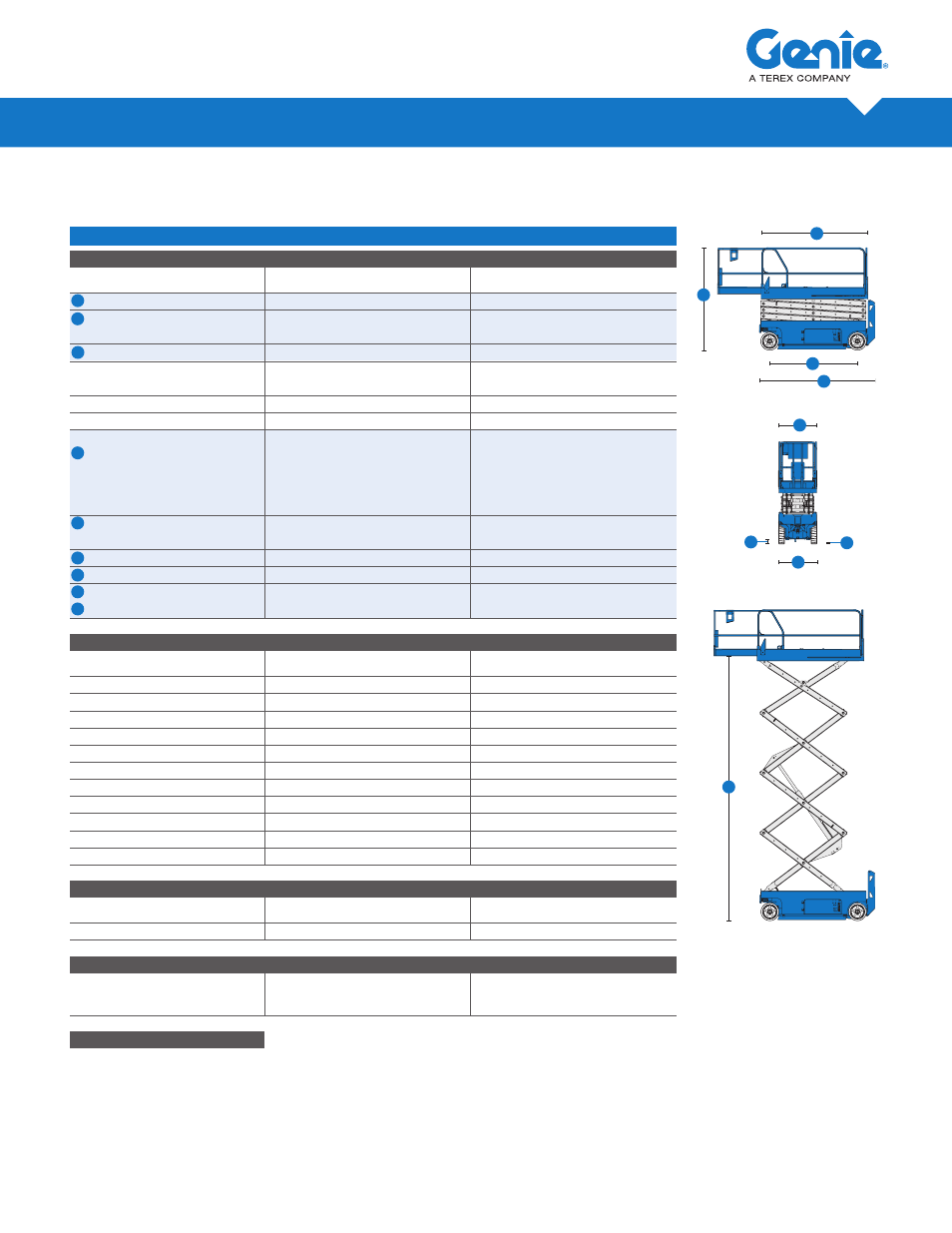

Specifications
C
D
E
A
B
F
G
H
I
* The metric equivalent of working height adds 2 m to platform height. U.S. adds 6 ft to platform height.
** Gradeability applies to driving on slopes. See operator’s manual for details regarding slope ratings.
*** Weight will vary depending on options and/or country standards.
C
D
E
B
F
G
H I
A
MEASUREMENTS US Metric US Metric
Working height max* 26 ft 8.10 m 32 ft 9.92 m
Platform height max 20 ft 6.10 m 26 ft 7.92 m
Platform length - outside 7 ft 5 in 2.26 m 7 ft 5 in 2.26 m
extended 10 ft 5 in 3.18 m 10 ft 5 in 3.18 m
Platform width - outside 2 ft 8 in .81 m 2 ft 7 in .79 m
Guardrail height: ANSI, CSA 3 ft 3 in .99 m 3 ft 3 in .99 m
CE 3 ft 7 in 1.10 m 3 ft 7 in 1.10 m
Roll-out platform extension 3 ft .91 m 3 ft .91 m
Toeboard height 6 in .15 m 6 in .15 m
Height - stowed: platform 3 ft 3 in .99 m 3 ft 9.5 in 1.16 m
solid rails-ANSI/CSA/AUS 6 ft 8 in 2.03 m ——— ———
solid rails-CE 7 ft 2.13 m ——— ———
folding guardrails 7 ft 2.13 m 7 ft 5 in 2.26 m
rails folded 5 ft 10 in 1.78 m 6 ft 3 in 1.91 m
Length - stowed 8 ft 2.44 m 8 ft 2.44 m
Length - extended 10 ft 11 in 3.33 m 10 ft 11 in 3.33 m
Width 2 ft 8 in .81 m 2 ft 8 in .81 m
Wheelbase 6 ft 1 in 1.85 m 6 ft 1 in 1.85 m
Ground clearance - center 3.5 in .09 m 3.5 in .09 m
- with pothole guards deployed .88 in .02 m .88 in .02 m
PRODUCTIVITY
Lift capacity 800 lbs 363 kg 500 lbs 227 kg
Extension deck capacity 250 lbs 113 kg 250 lbs 113 kg
Drive speed - stowed 2.2 mph 3.5 km/h 2.2 mph 3.5 km/h
Drive speed - raised 0.5 mph 0.8 km/h 0.5 mph 0.8 km/h
Gradeability** 30% 25%
Turning radius - inside zero zero zero zero
Turning radius - outside 7 ft 2.13 m 7 ft 2.13 m
Raise / lower speed 30 / 26 sec 30 / 26 sec 37 / 24 sec 37 / 24 sec
Controls proportional proportional
Drive dual front wheel dual front wheel
Multiple disc brakes dual rear wheel dual rear wheel
Tires - solid non-marking 15 x 5 x 11 in 38 x 13 x 28 cm 15 x 5 x 11 in 38 x 13 x 28 cm
POWER
Power source 24 V (four 6 V 225 Ah batteries) 24 V (four 6V 225 Ah batteries)
Hydraulic system capacity 7.5 gal 28.4 L 5.5 gal 20.8 L
WEIGHT***
ANSI, CSA 3,574 lbs 1,621 kg 4,413 lbs 2,002 kg
CE, AUS 4,024 lbs 1,825 kg 4,313 lbs 1,956 kg
STANDARDS COMPLIANCE ANSI A92.6, CSA B354.2, CE Compliance, AS 1418.10
