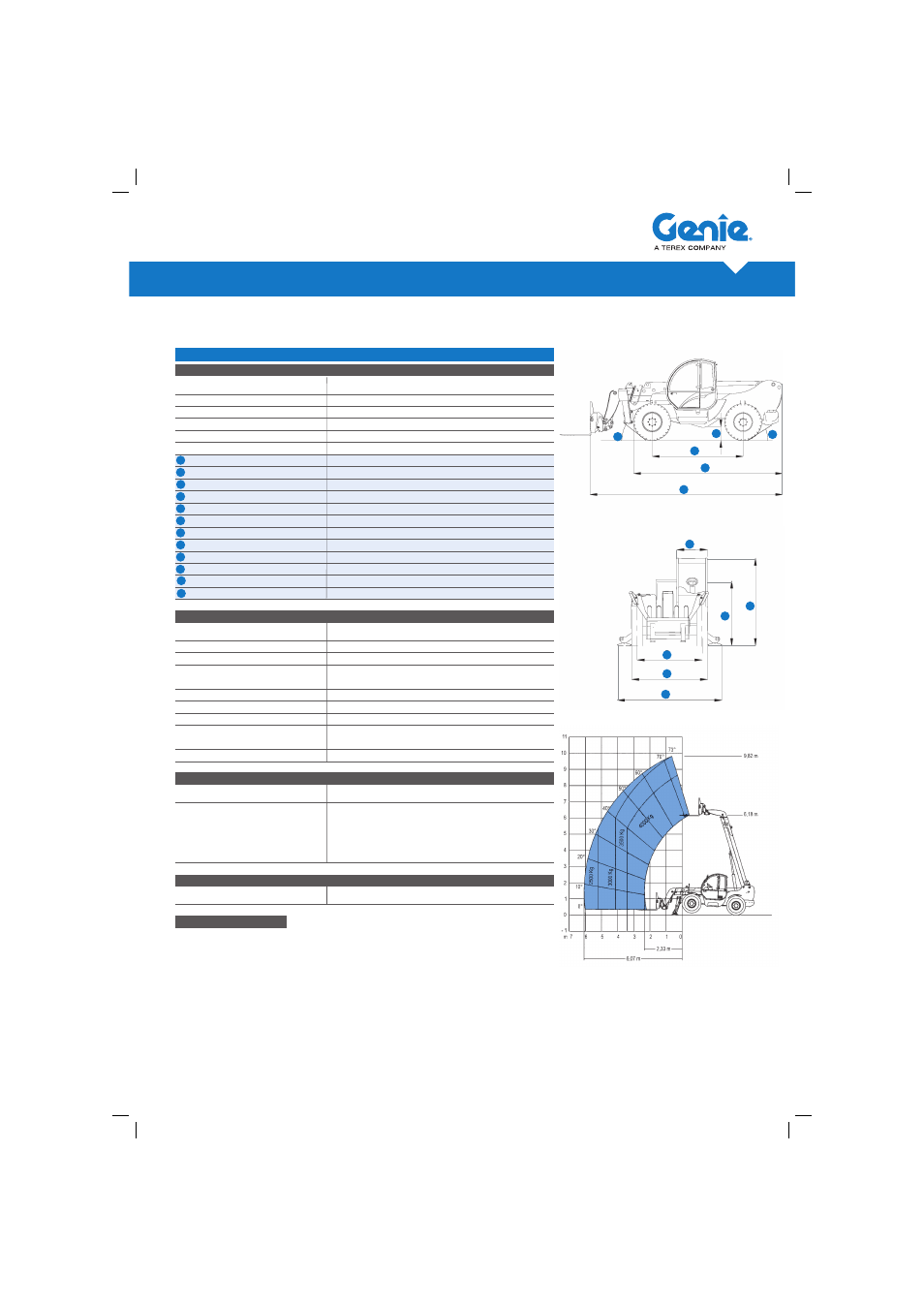

Gth-4010, Specifications, High reach rough terrain telehandler

background image

Lift capacity chart (with stabilisers)

EN1459, Annex B

GTH-4010

MODEL

GTH-4010

06/06. Part No. B108016UK

C

D

E

A

B

F

www.genieindustries.com

Specifications

G

H

I

L

HIGH REACH ROUGH TERRAIN TELEHANDLER

B

E

C

D

G

F

I

M2

M1

L

M1

M2

H

A

MEASUREMENTS

Metric

Imperial

Lifting height (max)

9.82 m

32 ft 3 in

Lifting capacity (max)

4,000 kg

8,818 lbs

Lift capacity at maximum height

3,500 kg

7,715 lbs

Lift capacity at maximum reach

2,500 kg

5,511 lbs

Forward reach (max)

6.07 m

19 ft 11 in

Reach at maximum height

85 cm

2 ft 9 in

Height

2.45 m

8 ft

Height at steering wheel

1.84 m

6 ft

Width

2.25 m

7 ft 5 in

Inside cab width

86 cm

2 ft 10 in

Track

1.85 m

6 ft 1 in

Wheelbase

2.75 m

9 ft

Length at stabilisers

4.44 m

14 ft 7 in

Length at fork-holder plate

6.13 m

20 ft 1 in

Ground clearance

43 cm

1 ft 5 in

Overall width, stabilisers extended

2.93 m

9 ft 7 in

Obstruction angle

37°

37°

Departure angle

39°

39°

PRODUCTIVITY

Lifting/lowering speed

13 sec./8 sec.

13 sec./8 sec.

Extension/retraction speed

20 sec./24 sec.

20 sec./24 sec.

Inside/outside turning radius

2.42 m/4.5 m

7 ft 11 in/14 ft 9 in

Break out force

4,500 kg

9,920 Ibs

(with 500L shovel SAE J 732/80)

Towing capacity at dynamometer

8,200 kg

18,076 Ibs

Travel speed

30 km/h

18.6 mph

Fork-holder plate rotation

145°

145°

Floating forks

L 1200 mm

L 3 ft 11 in

Section 120x50 mm

Section 5 in x 2 in

Tyres (DIN 70361)

405/70-20” PR16 8 holes wheel disc

POWER

Engine

Deutz Turbo Diesel 60 kW (81.5 HP)

Tank capacities

Fuel

92

L

20

gal

Engine oil

8 L

1.75 gal

Hydraulic oil

90 L

19.8 gal

Hydraulic output/pressure

82 L/min-280 bars

18 gal/min-4,061 psi

WEIGHT

Weight*

9,300 kg

20,500 lbs

STANDARDS COMPLIANCE

Operating cab conforms to ISO3471 (ROPS) and ISO3449 (FOPS)

Low emission engine conforms to UE 97/68 directives.

* Weight will vary depending on options and/or country standards
