Part No. 82600 Genie Z-45/25 & Genie Z-45/25J 31
Operator's Manual Second Edition · Second Printing
Observe and Obey:
Only qualified riggers should rig and lift the
machine.
Be sure the crane capacity, loading surfaces
and straps or lines are sufficient to withstand
the machine weight. See serial plate.
Lifting Instructions
Fully lower and retract the boom. Fully lower the jib
(if equipped). Remove all loose items on the
machine.

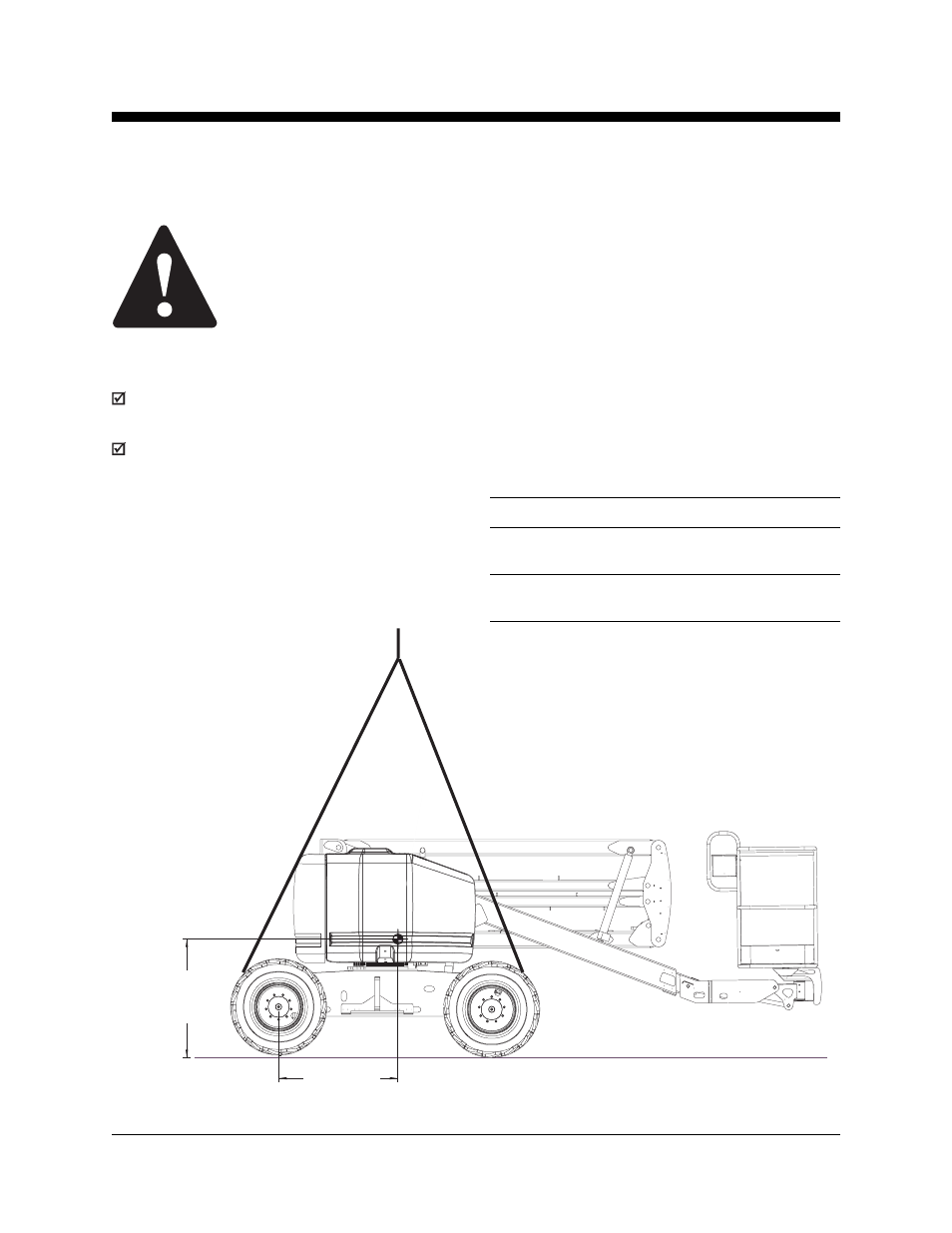

Determine the center of gravity of your machine
using the table and the picture on this page.
Attach the rigging only to the designated lifting
points on the machine. There are four lifting points
on the chassis.
Adjust the rigging to prevent damage to the
machine and to keep the machine level.
X Axis Y Axis
Z-45/25 47 in 42 in
1.19 m 1.06 m
Z-45/25J 49 in 44.5 in
1.24 m 1.13 m
TRANSPORT AND LIFTING INSTRUCTIONS
X Axis
Y Axis
