1.1 purpose and scope

oF the Manual

These Installation Instructions have been prepared

especially for the purpose of familiarizing installers

and owners of the applicable equipment with the

product's installation requirements. Give serious

consideration to all information and instructions in

the manual, both for safety and for continued reliable

operation of the equipment.
Because of the different recreational vehicle mod-

els and the variations between the models, it would

be extremely difficult, if not impractical, to provide

detailed instructions for every possible installation.

For that reason, instructions and illustrations in this

manual are general in nature. Illustrations are not

intended to serve as detailed installation blueprints.
The installation should comply strictly with all appli-

cable codes, standards and regulations pertaining

to the installation and use of this product. If any

portion of this manual appears to be in conflict with

such codes, standards or regulations, the applicable

codes, standards or regulations must take prece-

dence over the manual.

1.2 saFety

Before handling, installing, operating or servicing this

equipment, carefully read the “Notice to Installer”

and “Safety Rules” on Pages 18 and 19. Comply with

all safety rules to prevent death, personal injury or

damage to equipment and/or property. Stress safety

to all installers, operators and service technicians

who work on this equipment.

1.3 standards booklets

Installation, use and servicing of this equipment

should comply strictly with published standards, as

well as the manufacturer's recommendations. The

following standards booklets (latest revision) are

available from the sources indicated:
1. NFPA Standard 501C, “Standard for Recreational

Vehicles,” available from the National Fire

Protection Association, Batterymarch Park,

Quincy, MA 02269.

2. NFPA 70, “NFPA Handbook of the National

Electric Code,” available same as Item 1.

3. ANSI C1-1975 and ANSI 119.2-1975, available

from the American National Standards Institute,

1430 Broadway, New York, NY 10018.

4. ANSI A119.2/NFPA 501C, available from the

Recreational Vehicle Association, 1896 Preston

White Drive, Reston, VA 22090.

5. California Administrative Code, Title 25, avail-

able from the State of California, Documents

Section, P.O. Box 1015, North Highlands,

CA 95660.

6. CSA Electrical Bulletin 946, available from the

Canadian Standards Association, Housing and

Constructions Materials Section, 178 Rexdale

Boulevard, Rexdale, Ontario, Canada, M9W 1R3.

1.4 equIpMent descrIptIon

Instructions and information in this section pertain

to air-cooled generators. This generator is designed

specifically for installing in recreational vehicles. This

generator operates 120-volts, single-phase, 60-Hertz,

AC electrical loads that require 28.3 amps.

1.5 generator engIne

operatIng speed

The generator’s revolving field (rotor) is driven by a

single-cylinder, four-cycle engine. The generator sup-

plies 120 volts AC at 60 Hertz when the rotor is oper-

ating at 3,600 rpm.

1.6 generator ac

connectIon systeM

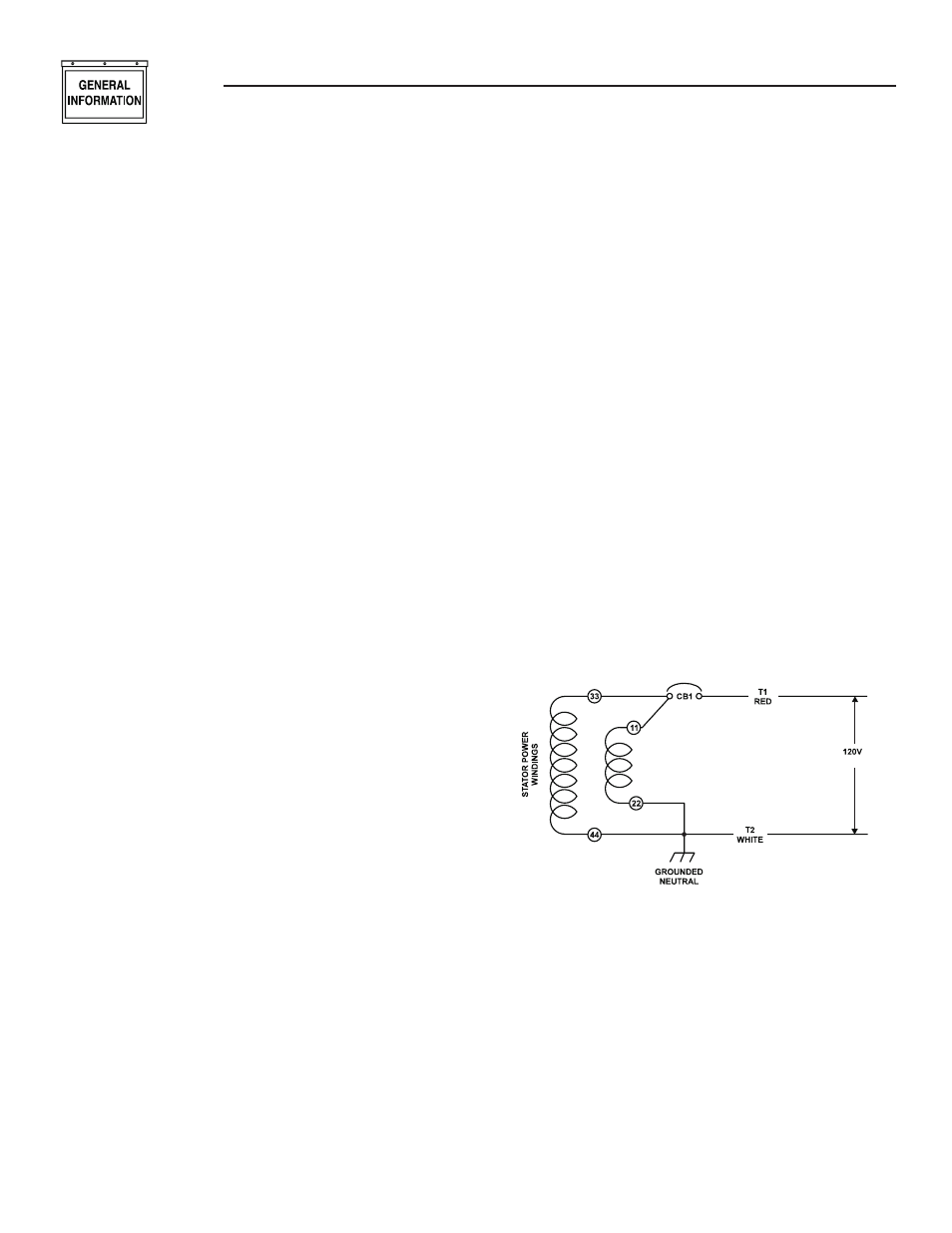

The generator is equipped with dual stator power

windings as shown in Figure 1.1.

Figure 1.1 – 120-volt Single Voltage Connection

28.3 AMP

• The AC connection system on all air-cooled genera-

tors uses a GROUNDED neutral.

• A separate green ground wire is connected to the

recreational vehicle’s junction box.

NOTE:

Do NOT connect loads in excess of circuit

breaker ratings.

section 1 – general Information

recreational vehicle generator
