SERvICING INSTRUCTIONS
REPLACING PARTS
28
1. GENERAL
1.1 To service any of the following parts of the fire, it will be
necessary to remove the burner unit from the firebox. To
remove the burner refer to previous section SERvICING.

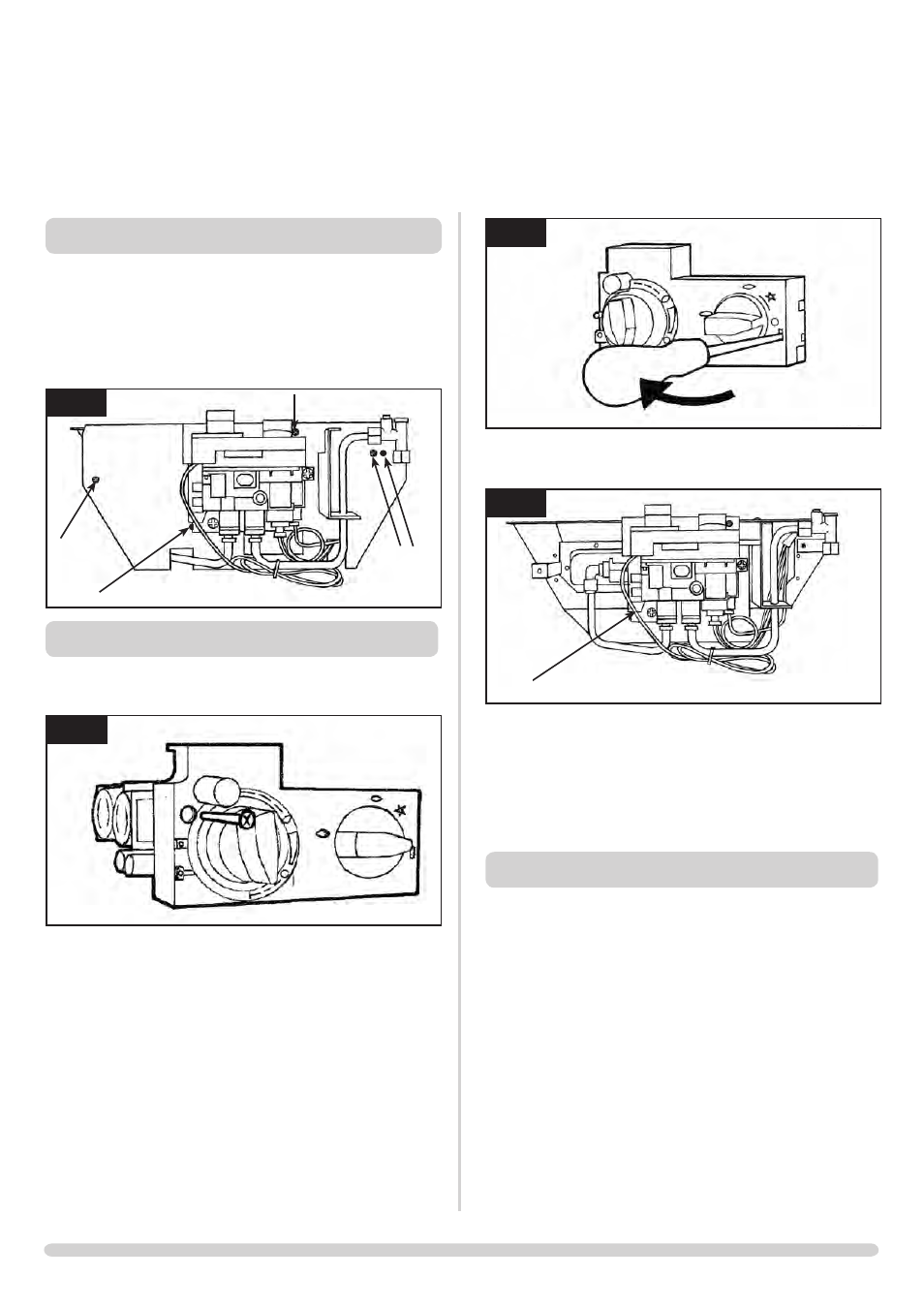

1.2 The heat shield will need to be removed from the burner
for servicing. To do this remove the five screws indicated in
diagram 1 and slide the shield forward. Note: E-Studio only
has three screws.
1
AR1370
2. IGNITION LEAD
2.1 Undo the single screw that secures the left hand side of the
control cover, Diagram 2.
2
AR0915
2.2 To release the right-hand side of the control cover insert the
narrow blade screwdriver into the slot shown in diagram 3,
lever it gently and pull from the right-hand side at the same
time. The cover will now come off, there is a small
cylindrical metal spacer inside the cover, this must be kept
and replaced on the fixing screw during re-assembly.
3
AR0916
2.3 Disconnect the ignition lead from the gas valve and the
pilot, Diagram 4 arrow A.
4
AR1371
A
2.4 Replace with a new ignition lead following the same route
as the old one. Replace the valve cover and refit the
burner.
2.5 Check the operation of the new ignition lead.
2.6 Replace the fire frame.
3. PIEzO
3.1 The piezo assembly used on this fire is not serviceable and
is unlikely to fail. If a new piezo is required it will be
necessary to change the gas valve, refer to section 5.
