GXV3140 USER MANUAL

www.grandstream.com

SOFTWARE VERSION 1.0.0.44

[email protected]

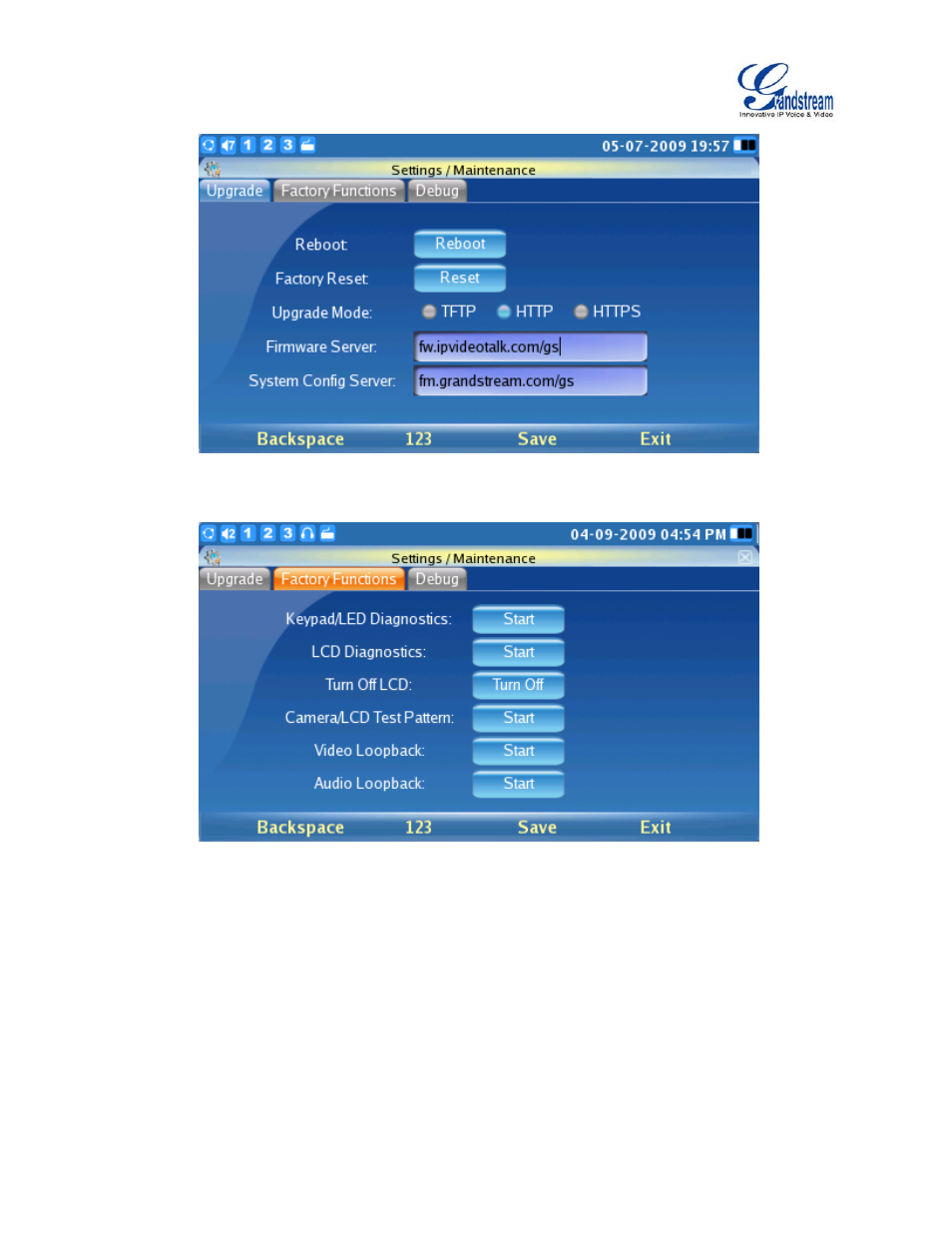

The Factory Functions page provides some testing diagnostics for the LCD, camera and
audio on the GXV3140. (As shown in the figure below)

The Debug page (as shown in the figure below) contains the built-in debug tools for the
GXV3140. The debug tools make it more convenient to obtain corresponding information and
traces when the system encounters problems. To start capturing traces, users need to Enable
Application Debug and press the Start button next to the Capture Packets option. The
captured traces are available for download through the web configuration interface and can
be sent to Grandstream support for troubleshooting.
