Gateway 600YG2 User Manual
Page 73
68
Replacing Gateway 600YG2 Components
www.gateway.com
15

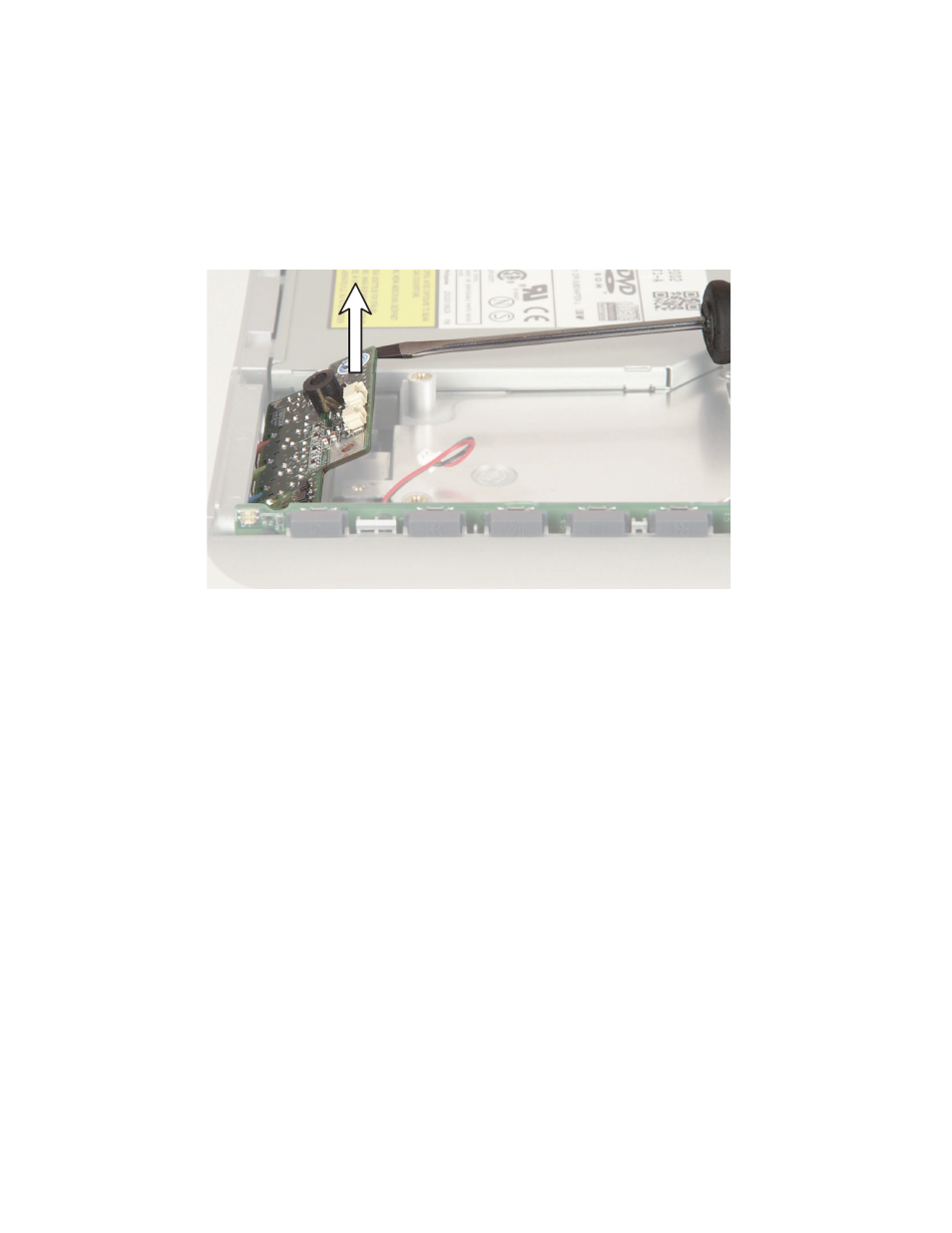

On the right side of the board where the connector is located, use a
flat-blade screwdriver or non-marring tool to carefully pry the audio board
up. Then lift the audio board completely out of the notebook.
16
Align the new audio board’s screw hole with the hole on the notebook,
then press the board into place.
17
Replace the screw.
18
Plug the connectors for each speaker into the audio board. The left speaker
should be attached to the connector furthest from you.
19
Replace the four screws that secure the left speaker to the notebook.
