Replacing the LCD panel assembly
www.gateway.com
16

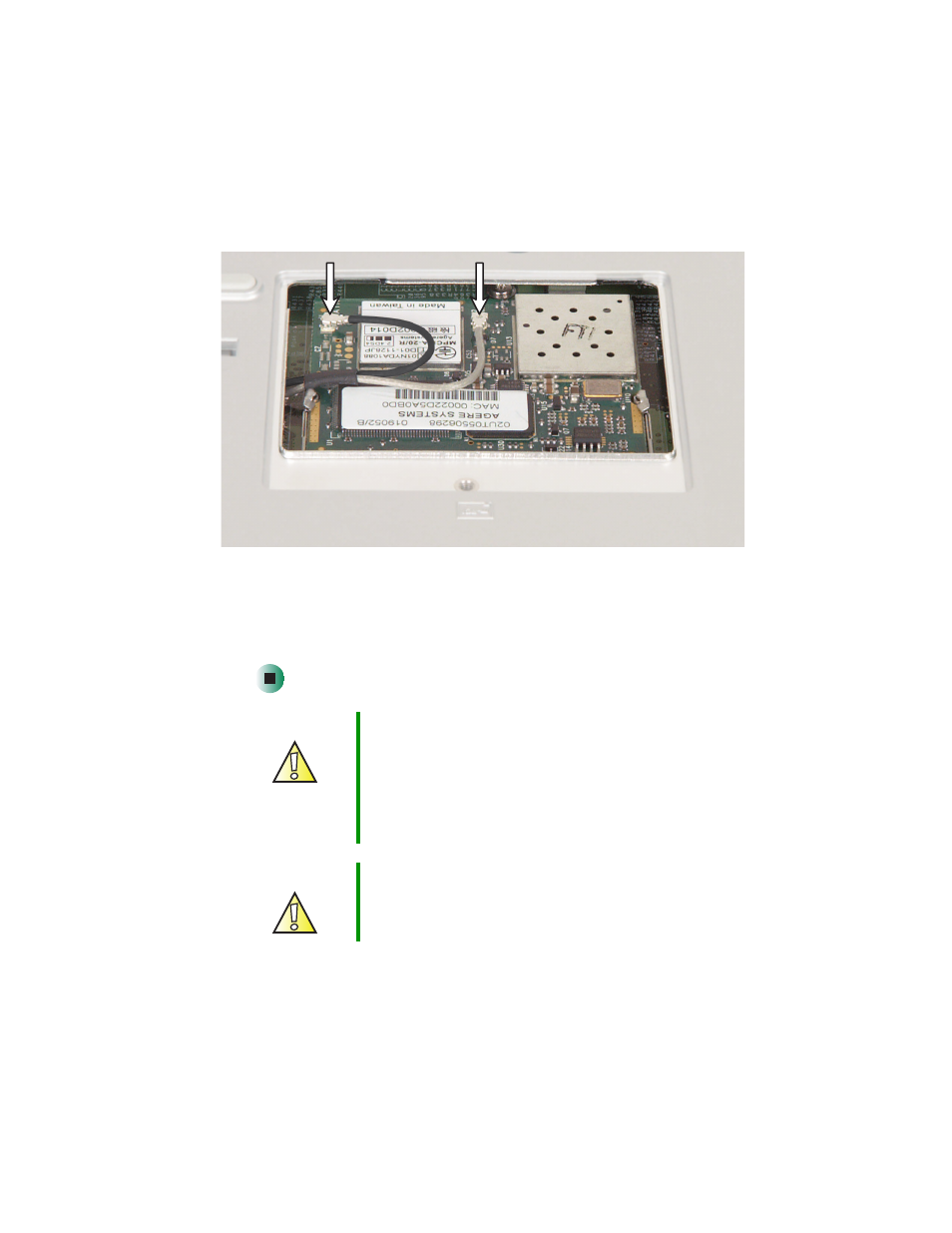

If the notebook has IEEE 802.11 built in, slide the cable wrap down about
two inches from the connectors to allow the connectors to widely separate.
17
Reattach the black antenna cable to the connector labelled MAIN or M,
then reattach the light gray antenna cable to the connector labelled AUX
or A.
18
Reassemble the notebook.
Caution
Legal requirements dictate that a security screw (or other
means) be used to attach the mini-PCI cover to the chassis
in a manner that restricts end user access. End users are
strictly prohibited from having access to the wireless card.
Due to manufacturing process changes, Gateway 600YG2
notebooks manufactured after August 7, 2003 require a
Torx head security screw to attach the mini-PCI cover.
Caution
Legal requirements dictate the mini-PCI cover be in place
during any and all operation of the notebook’s wireless
feature.
