D-108 Owner’s manual (Punch In/Out Recording)
When you finish storing and adjusting the respective edit points, you can proceed to the Auto Punch In/Out
operations. In this example, we will re-record part of the guitar phrase on track 3, chosen from all the recordings

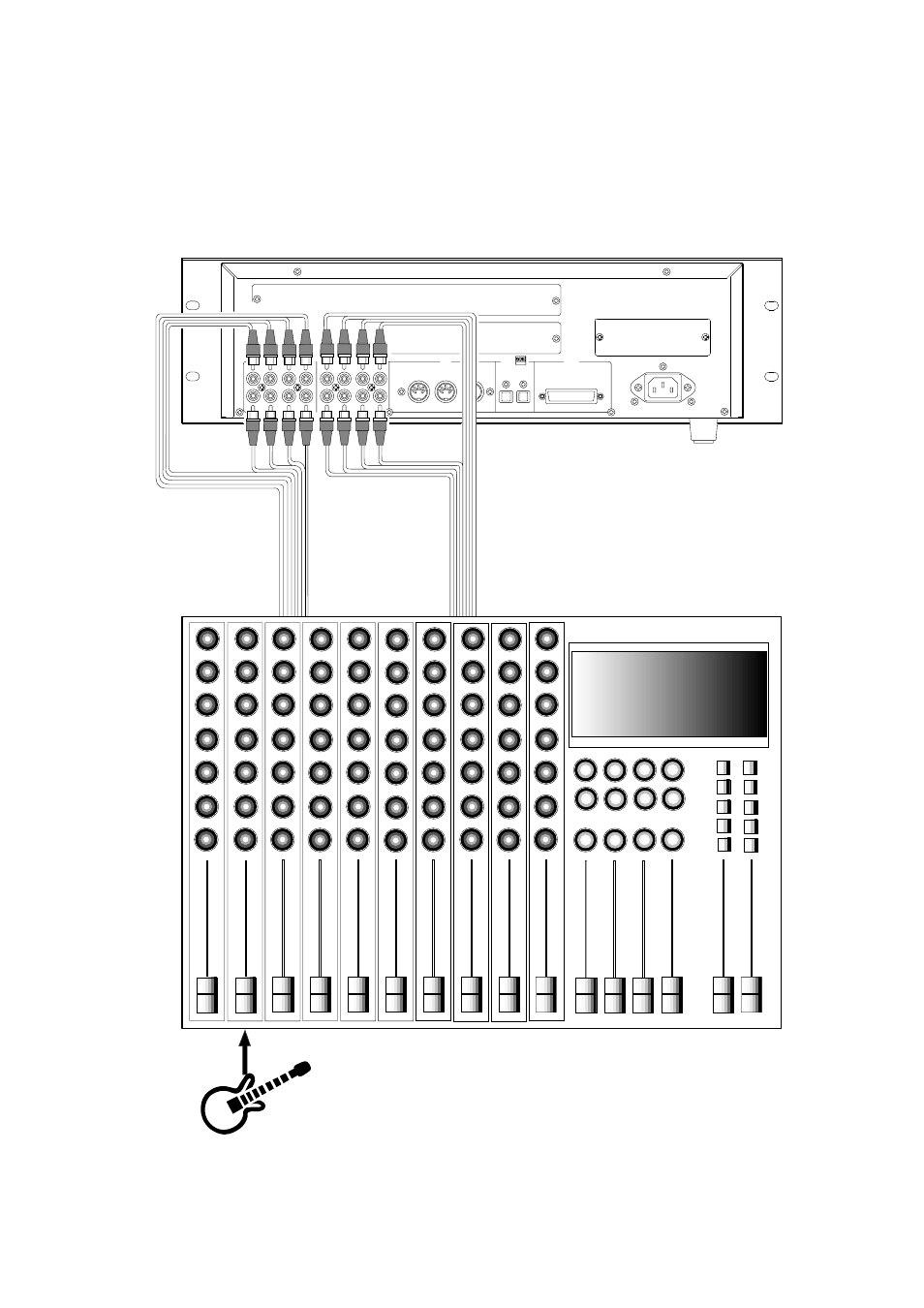

on tracks 1-8. Prior to proceeding with this operation, check to see that an external mixer is connected to D-108
as shown in the figure. then confirm that the guitar to record on track 3 is connected to the input jack of the
mixer.
AC IN
MIDI
SCSI
OUTPUT
INPUT
DATA
OPTICAL
OUTPUT
INPUT
BUSS OUT (GROUP OUT) 1~8
TAPE IN 1~8
D-108
Mixing console
