2. RADAR OPERATION


2-3

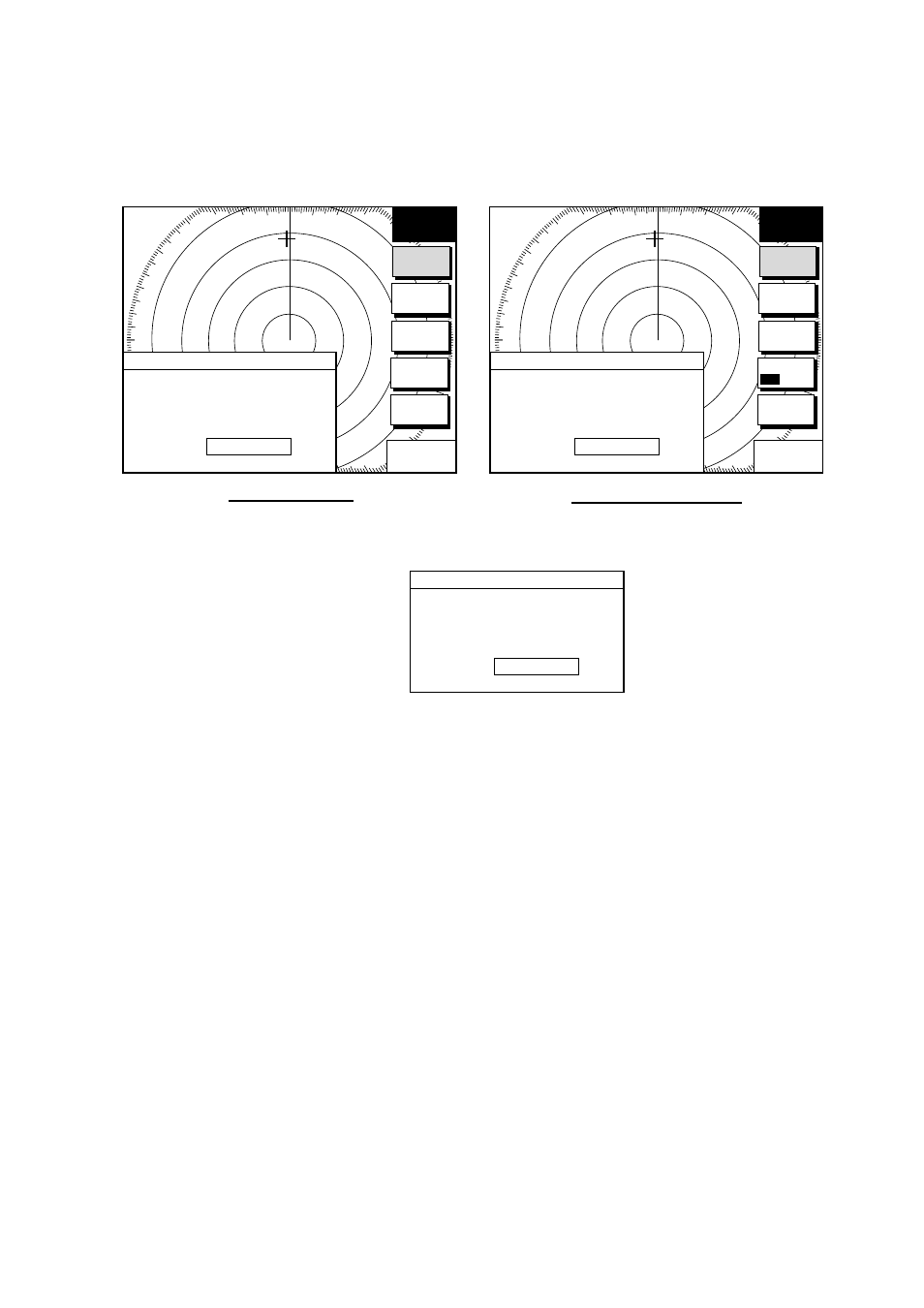

1. Press the [GAIN] key to show the “gain adjustment” soft keys, and the

last-used adjustment window appears. The example below shows the gain
sensitivity adjustment window. The gain soft keys shown depend on radar
source as shown below.

Model 1800/1900 series

GAIN
ADJUST

GAIN

RETURN

319. 9

°

M

359.9 ˚R

11.70

nm

+

Model 1700 series

GAIN
ADJUST

GAIN

RETURN

12/

H-UP

3nm
LP

359.9 ˚R

11.70

nm

+

A/C
SEA

A/C
RAIN

FTC

A/C
SEA

A/C
RAIN

A/C AT

ON

/OFF

12/

H-UP

3nm
LP

319. 9

°

M

GAIN SENSITIVITY

¤

AUTO ROUGH

¡

AUTO MODERATE

¡

AUTO CALM

¡

MAN

0

GAIN SENSITIVITY

¤

AUTO ROUGH

¡

AUTO MODERATE

¡

AUTO CALM

¡

MAN

0

Gain adjustment soft keys

2. Press the GAIN soft key to show the gain sensitivity setting window.

GAIN SENSITIVITY

¤

AUTO ROUGH

¡

AUTO MODERATE

¡

AUTO CALM

¡

MAN

0

Gain sensitivity window

3. Use the trackball to select AUTO ROUGH, AUTO MODERATE, AUTO CALM,

or MAN (manual) as appropriate. Select an AUTO option according to the
sea state.

4. For manual adjustment, rotate the [ENTER] knob to adjust, while observing

the radar echo. The range of adjustment is 0-100(%).

5. Press the [GAIN] key on the front panel or the RETURN soft key to finish.
