SYSTEM CONFIGURATIONS
All NavNet products incorporate a “network circuit board” to integrate each NavNet product
on board through an optional LAN cable (Ethernet 10BASE-T). Each NavNet product is
assigned an IP address to enable transfer of images between other NavNet products. For
example, video plotter pictures can be transferred to a radar and vice versa. Pictures
received via the NavNet may be adjusted at the receiving end.
A NavNet system may consist of up to four NavNet display units and one network sounder.
For a system incorporating three or more products, a “hub” is required to process data.

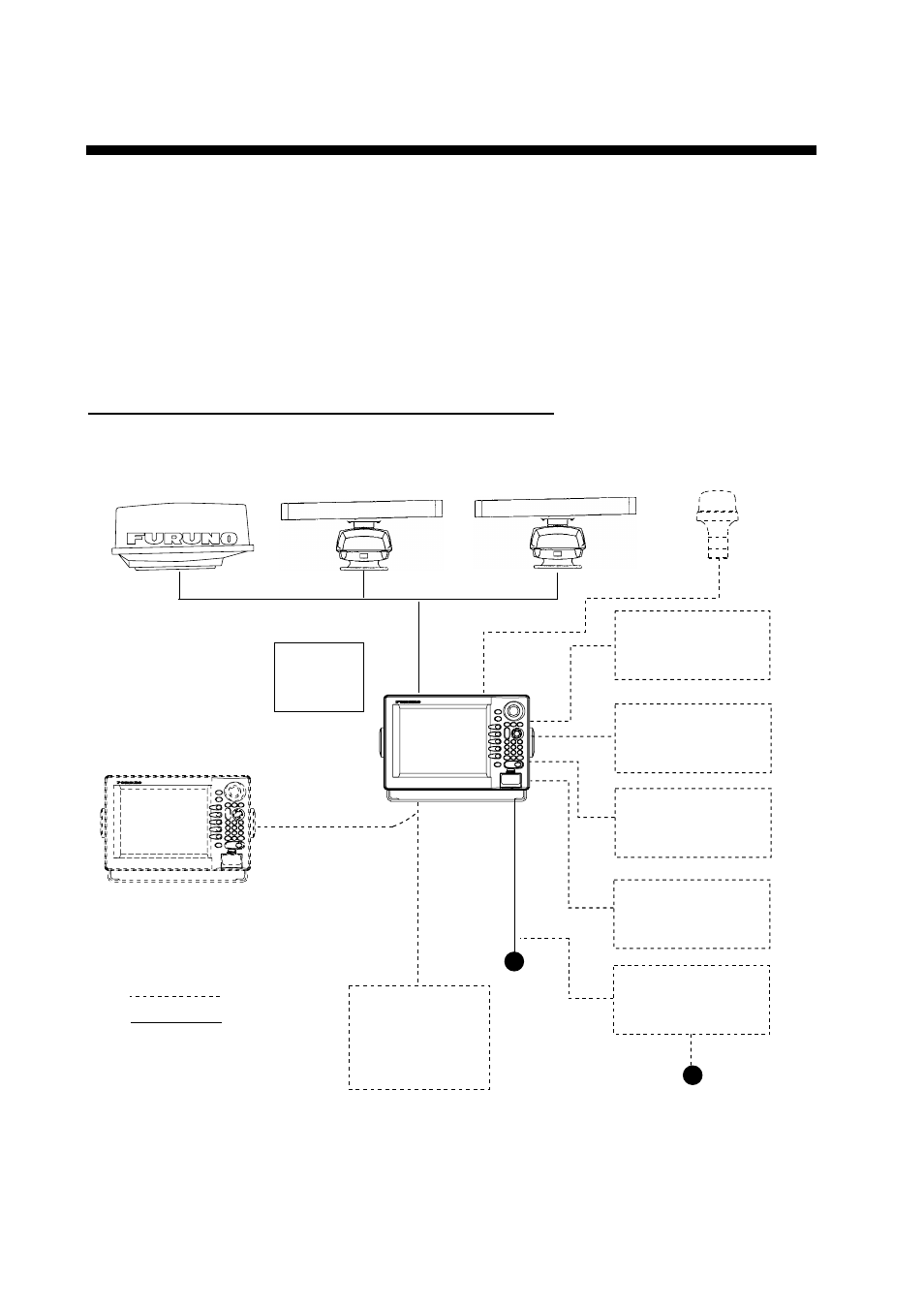

Single-unit NavNet system (Model 1833C/1933C/1943C)
Network
Sounder
ETR-6/10N
GPS receiver
GP-310B
12-24
VDC
Other NavNet Unit
(GD-1900C, etc.)
Antenna Unit
MODEL1833C MODEL1933C MODEL1943C
Display unit
RDP-138/139
Ship's mains
100/110/220/230 VAC
1
φ
, 50/60 Hz
: Standard
: Option
* = PR-62 for Model 1833C,
RU-3423 for Model 1933C,
1943C.
Remote
Controller
RMC-100
Heading
sensor
External buzzer
PC
Echo sounder
Rectifier*
PR-62
RU-3423
Echo sounder
Navigator
VGA monitor
Remote display
Video equipment
Single-unit NavNet system (Model 1833C/1933C/1943C)
