4. VIDEO SOUNDER OPERATION

4-6

Bottom-lock display

The bottom-lock display provides a compressed normal picture on the right half
of the screen and a 10 or 20 feet (3 or 6 meter) wide layer in contact with the
bottom is expanded onto the left half of the screen. This mode is useful for
discriminating bottom fish from the bottom echo. You may select the bottom lock
range from the SOUNDER RANGE SETUP menu. For details, see paragraph
5.9.3.

200k

80

This part
is zoomed.

Fish
school

Zoom marker

NORMAL DISPLAY

BOTTOM-LOCK
DISPLAY

50

0

100

-

-

-

-

-

-

-

-

-

-

10

8

6

4

2

0

10

-

-

-
-

-

-
-

-

-
-

-

-

-

-

-

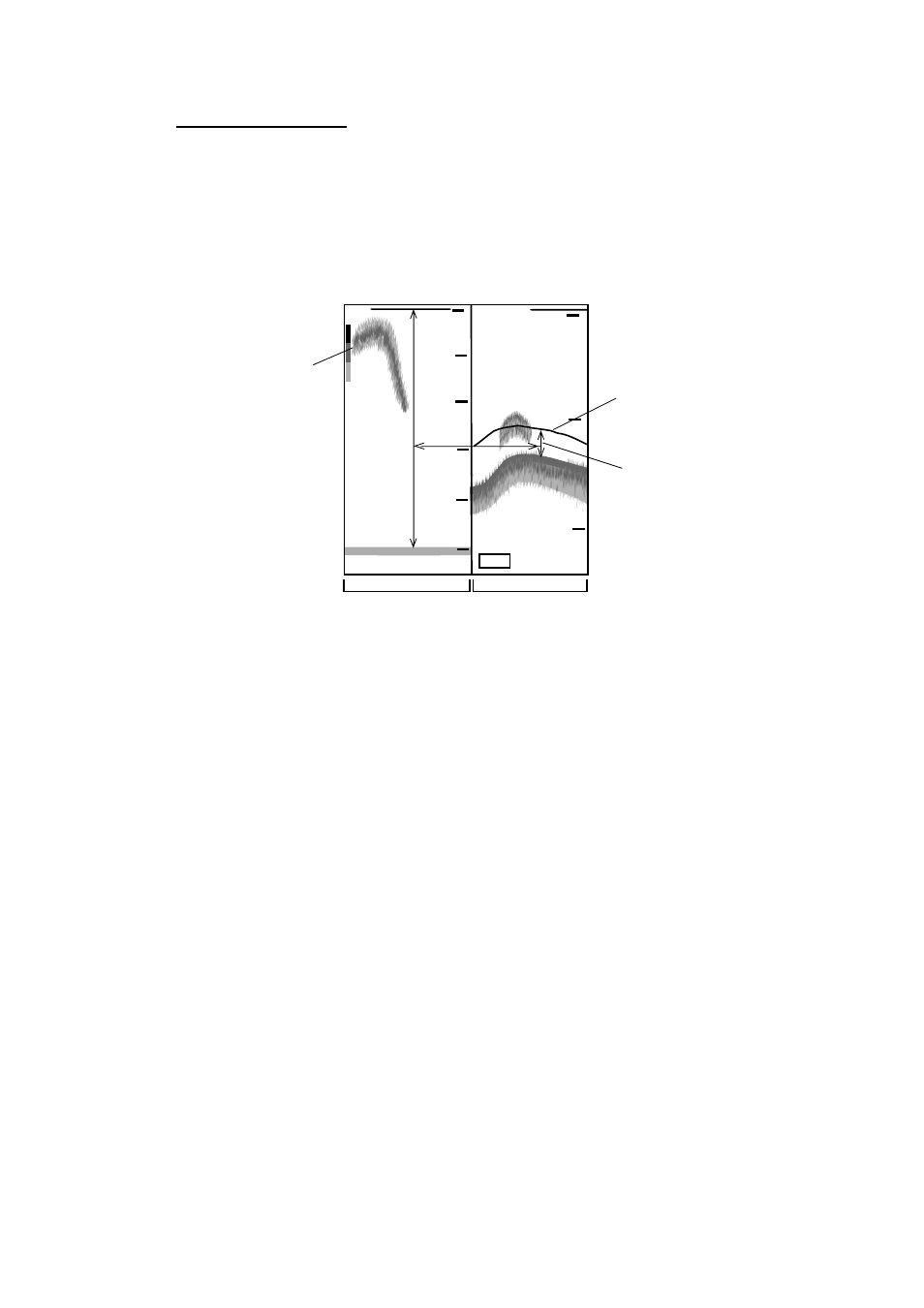

Bottom-lock display plus normal sounder display
