Assembly
26

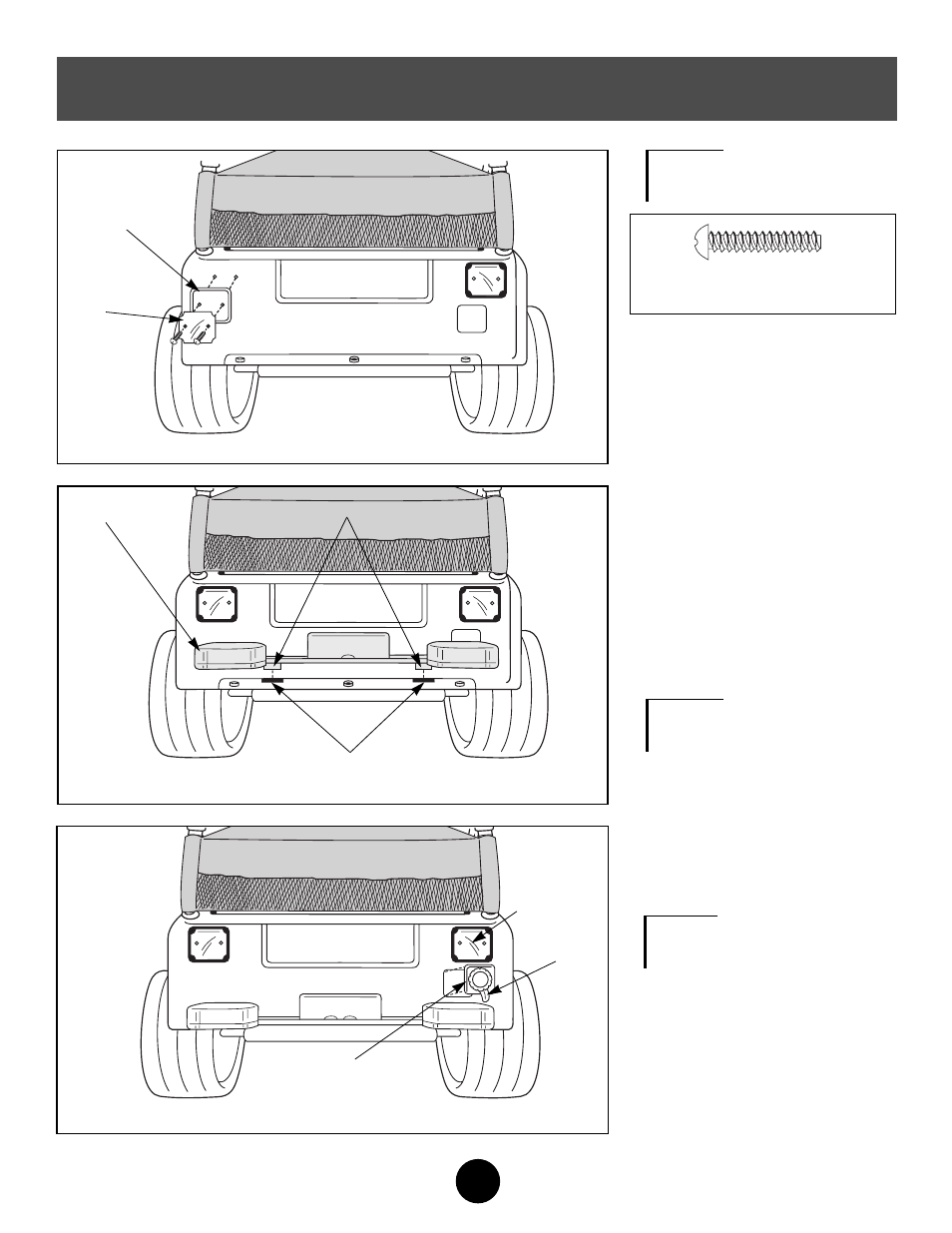

• Fit the tabs on the rear bumper
into the slots in the vehicle body.
• Push down on the rear bumper
to fit the holes in the rear bumper
onto the pegs on the vehicle
body.
36
Slots
Rear Bumper
Tabs
Gas Cap Assembly
37
• Position the gas cap assembly so
that its tether points down.
• Snap the gas cap assembly
into the opening under the right
taillight.
Right Taillight
Gas Cap
Tether
35
• Using safety scissors, remove the
taillight lenses and the taillight
housings from the plastic connec-
tors. Dispose of the plastic con-
nectors.
• Face the rear of the vehicle.
• Fit a taillight lens inside a
taillight housing.
• Position the taillight housing with
lens against the vehicle body
with the screw holes aligned, as
shown.
• Insert two #8 x 1" screws through
the taillight lens and housing and
into the vehicle body as shown.
• Tighten the screws with a Phillips
screwdriver. Do not over-tighten.
• Repeat this procedure to attach
the other taillight.
#8 x 1" Screw – 4
Shown Actual Size
Taillight
Housing
Taillight
Lens
