TX120 Operating Manual 63
Hot-plug hard disk drives Removing/Installing the dummy module
8.2 Removing/Installing the dummy module
Free slots are provided with dummy modules. Remove the dummy module
before installing an additional HDD module.

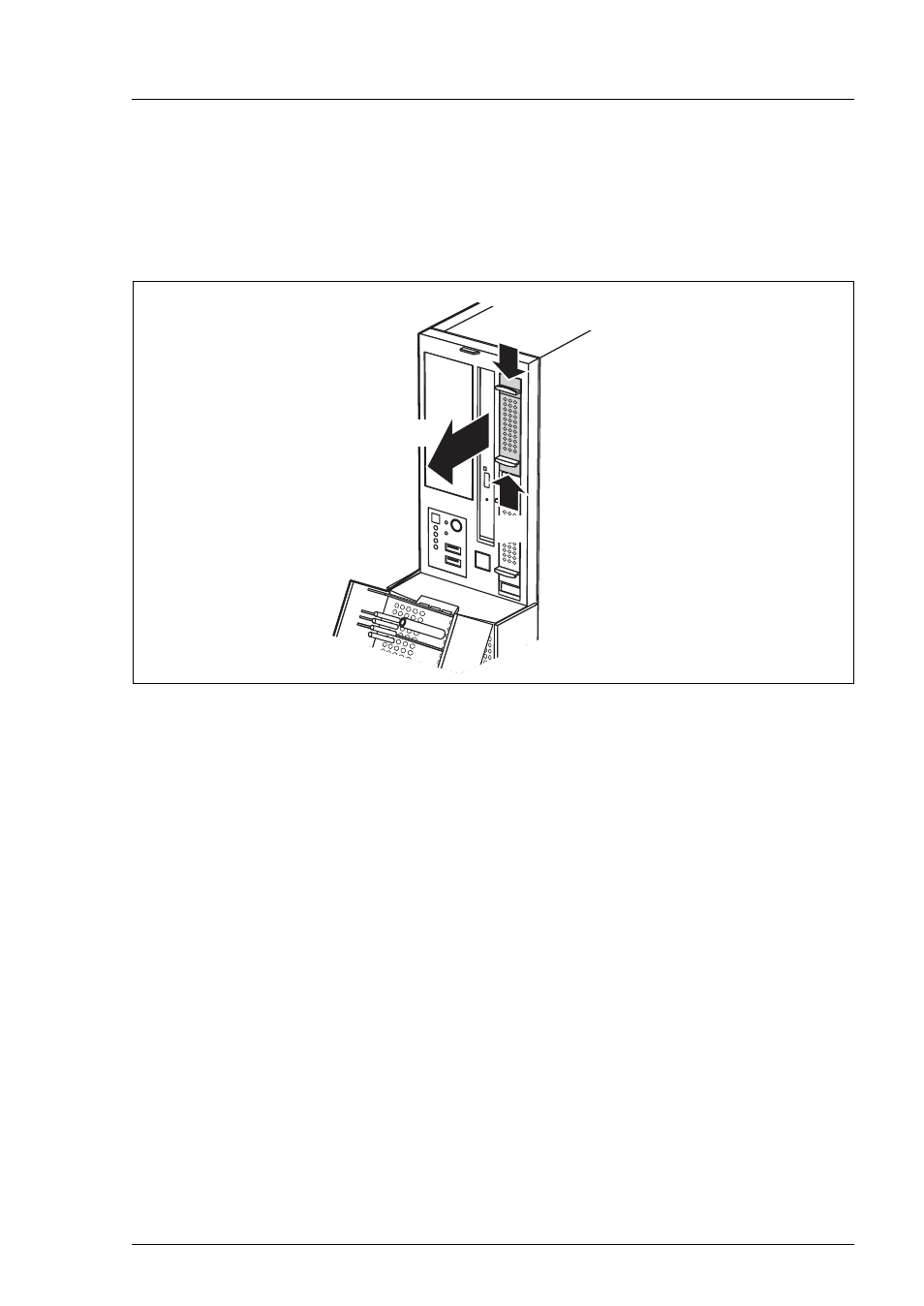

Figure 11: Removing the dummy module
Ê Press both tabs on the dummy module together until the locking mechanism
disengages (1).
Ê Pull the dummy module out of the slot (2).
To install a dummy module, follow the same procedure in reverse order.
V
CAUTION!
Store the dummy module in a safe place. If you have removed an HDD
module and do not install a new one in its place, put the dummy module
back in its place for cooling, to comply with EMC regulations (regulations
regarding electromagnetic compatibility), and for protection against fire.
Ensure that the dummy module engages correctly in the slot.
1
1
2
