40 Operating Manual TX120
Connecting devices to the server Hardware installation
4.3 Connecting devices to the server
The ports for external devices are on the front and rear of the server. The
additional ports available on your server depend on the PCI boards installed.
For further information refer to the “Options Guide” (see
“Literature” on
page 77 ).
The standard ports are indicated by symbols and color coding:

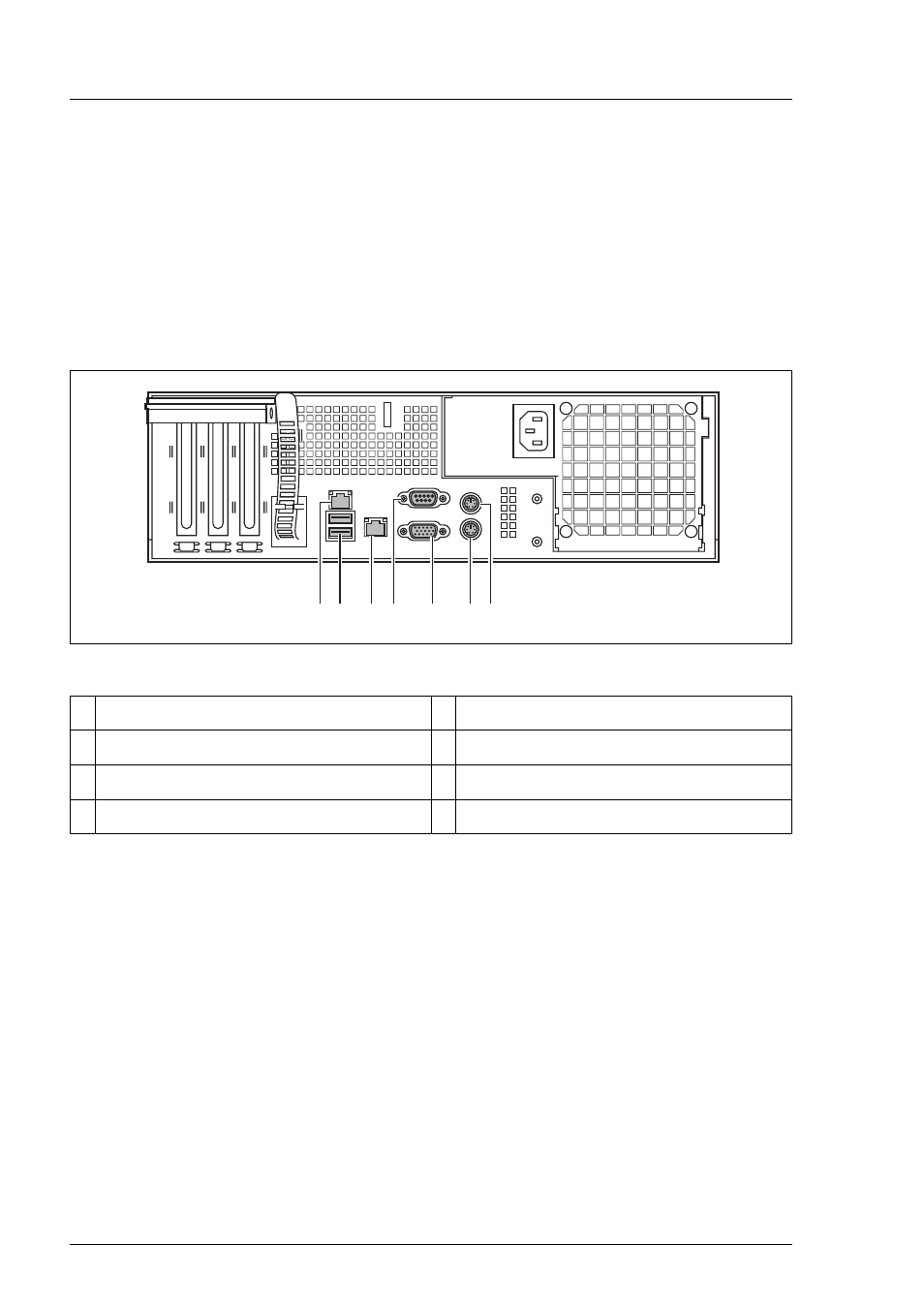

Figure 6: Standard ports
I
Some of the devices that can be connected may require special drivers
(see the documentation for the connected device).
Ê Connect the data cables to the server and peripherals.
Two additional USB ports are located on the front of the server (see figure 9 on
page 44 ).
1 LAN port 5 Monitor port (VGA) (blue)
2 2 x USB ports (black) 6 Keyboard port (PS/2) (purple)
3 Service LAN port 7 Mouse port (PS/2) (green)
4 Serial port COM1 (turquoise)
2 1 6 5 3 7 4
