Installing DC Power Supplies

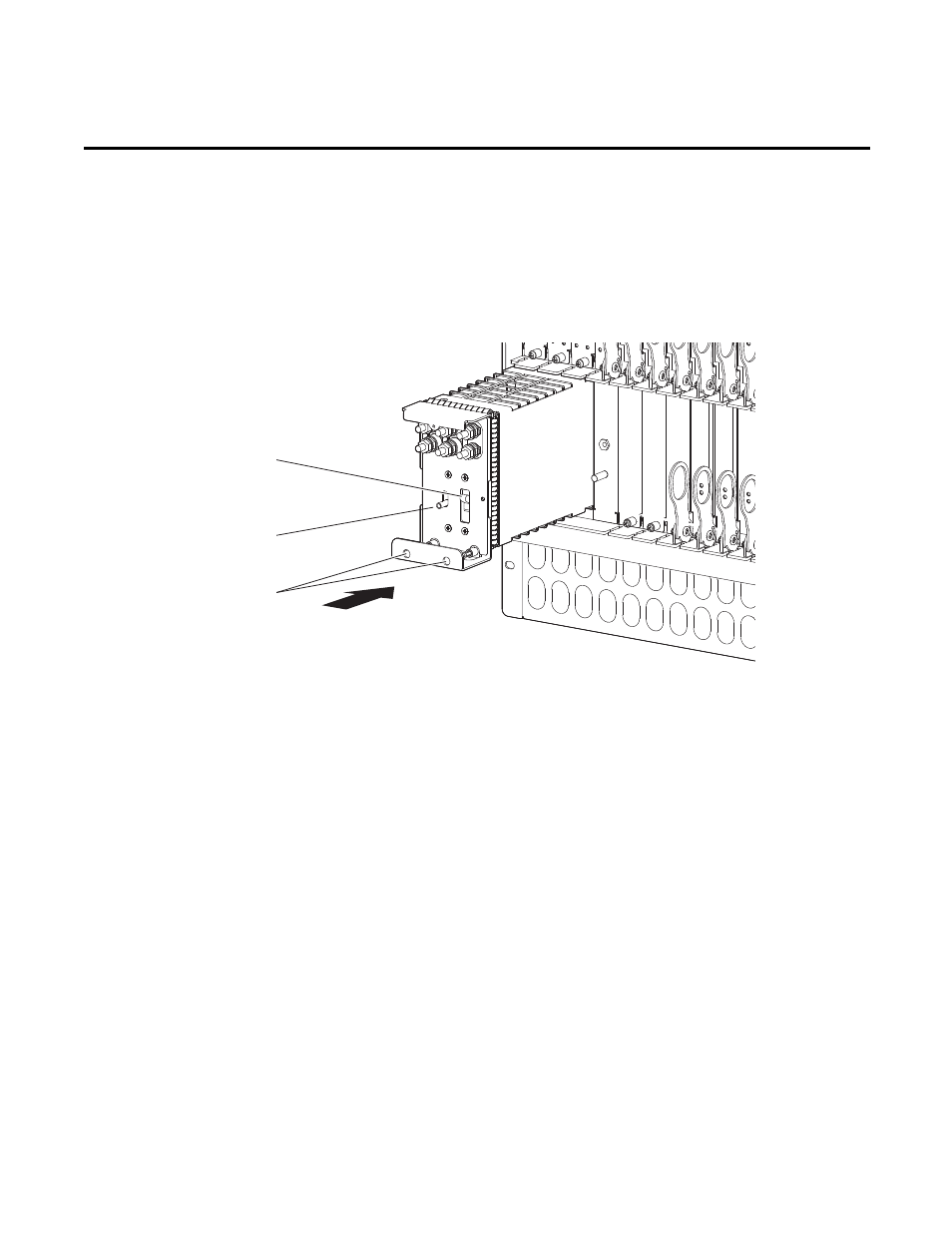

PEM interlock lever
Locking screws
Over current protector
fn00104lp
4.
Slide the PEM into the 0 or 1 slot (
):
a Lift up and hold the PEM interlock lever and carefully push the unit inward to fully seat it to the
backplane. When the PEM is fully inserted, the interlock lever will drop to hold the PEM in position.
b Tighten the two locking screws with a #2 Phillips screw driver to secure the PEM. Do not exceed
5 inch/lbs torque.
Step
Task (continued)
