Figure 4, E1200i dc chassis rear view, Table 2 – Force10 Networks Force10 TeraScale E-Series E1200i User Manual
Page 17

Installing and Maintaining the E1200i System
17

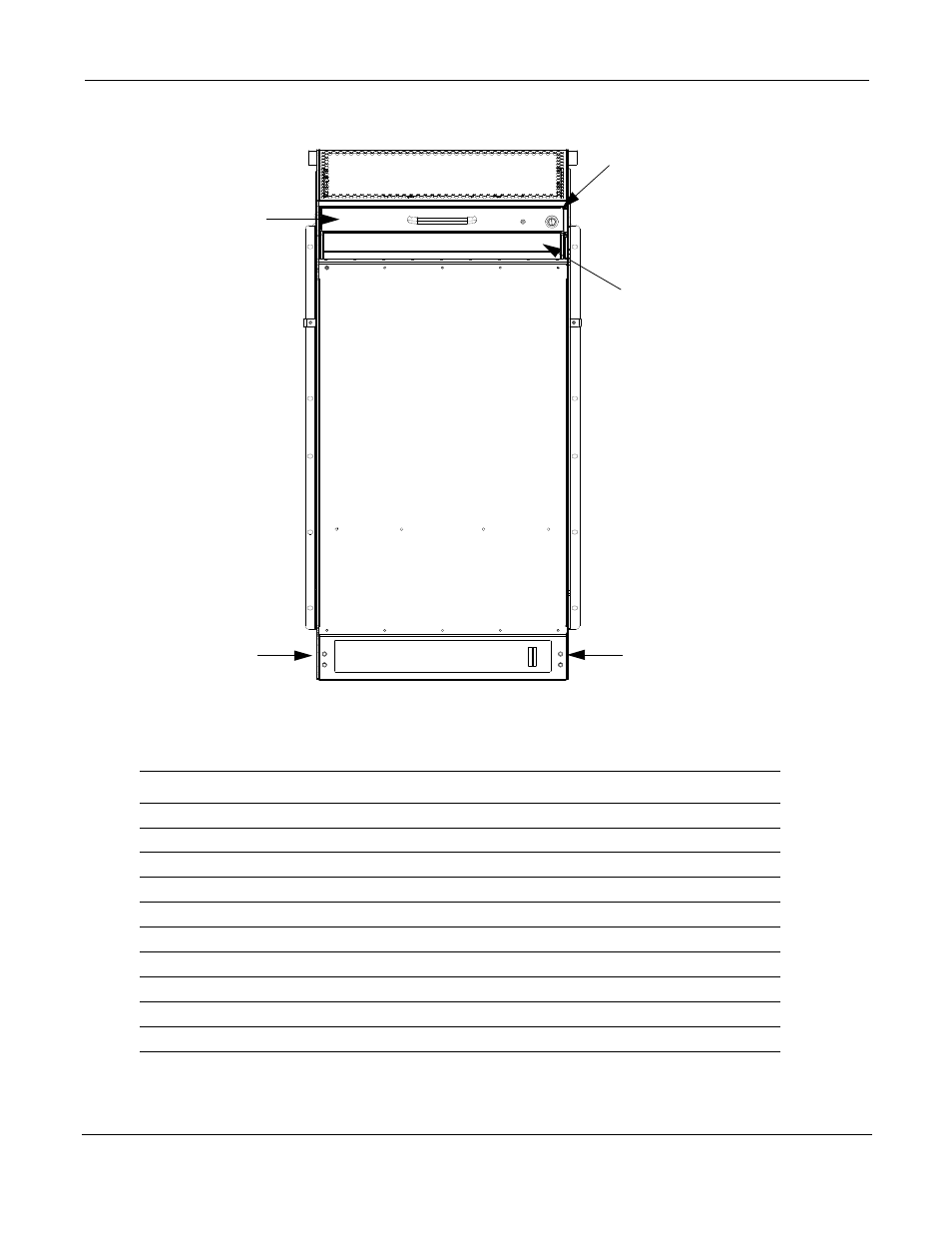

Figure 4 E1200i DC Chassis Rear View
Table 2 E1200i Hardware Component Operating Requirements Summary
Component
Minimum
Maximum
Field-Replaceable
Backplane (factory installed)
1
1
N
Air filter (factory installed)
1
1
Y
Fan trays
2
2
Y
RPMs
1
2
Y
Line cards
1
14
Y
SFMs
8
9
Y
AC Power Supply
2
6
Y
DC Power Supply
1
2
Y
Cable management system
0
1
Y
Cable management system cover
0
1
Y
Self-closing Door
Installed Fan Tray
Empty Fan Tray with
Locking screw
Ground Connection
Ground Connection
