8-14

Surveyor

User’s Guide

Transmit Specification Example, Bursts

Transmit Specification

dialog box is shown in Figure 8-3. The dialog box only

shows values for one stream, the stream that contains a burst. Multiple streams are
defined in the specification. Since a burst of 100 is specified, 101 frames will be
transmitted even though there are only two “streams” defined.

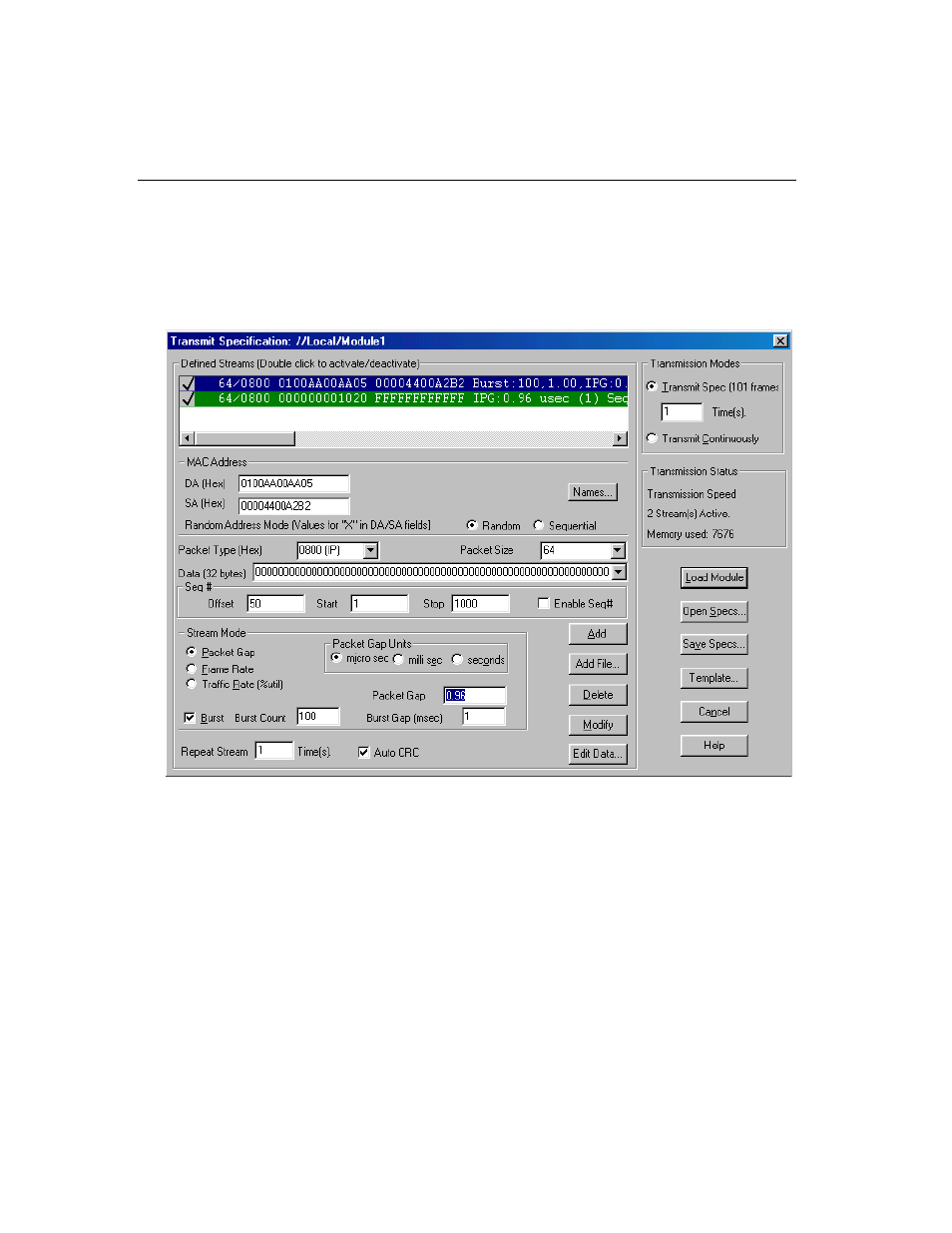

Figure 8-3. Transmit Specification Dialog Box, Bursts
