Appendix E

DC Power Supply Model

E-3

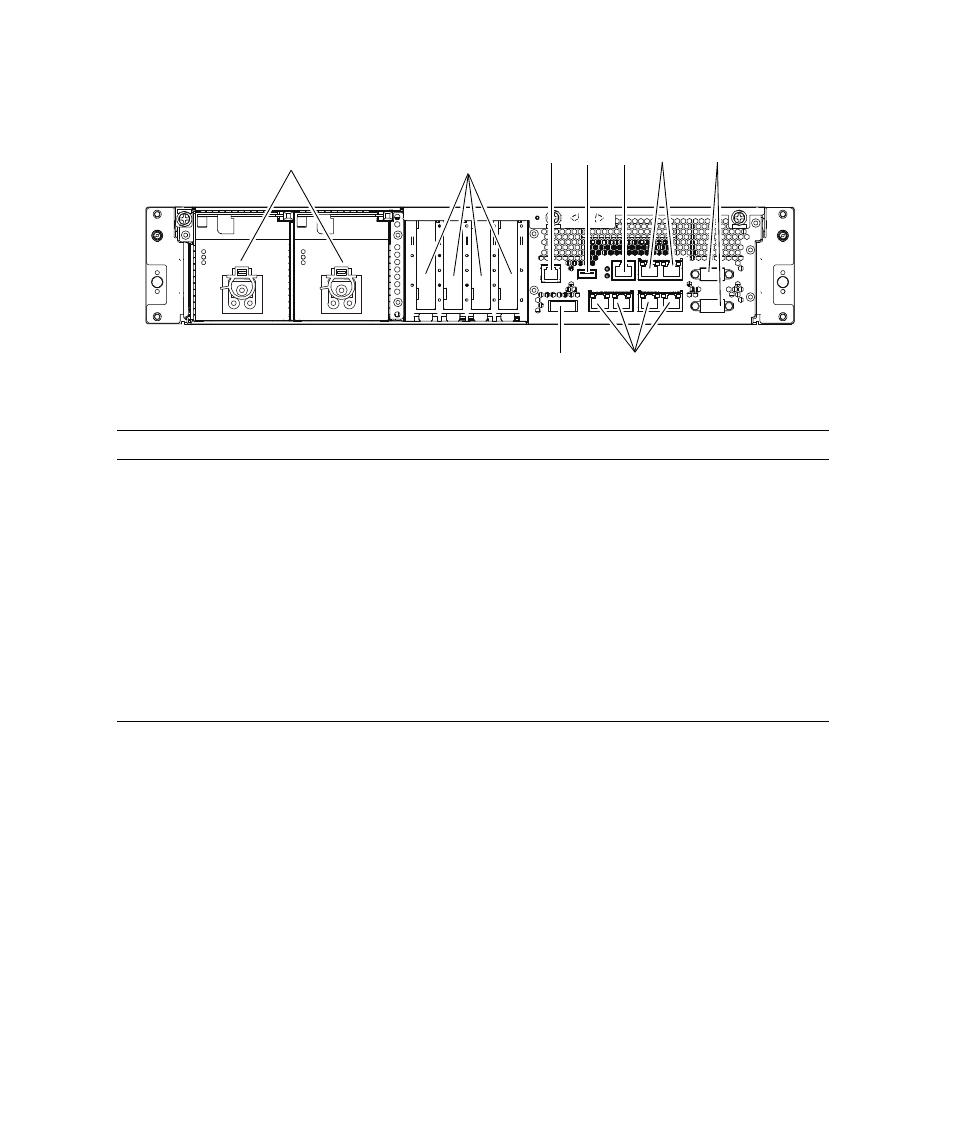

FIGURE E-2

Rear View of the Server (DC Power Supply Model)

Location No.

Component

Maximum Number per Server

1

Power supply unit (PSU)

2

2

PCIe slot

4

3

RCI port

1

4

USB port (for XSCF)

1

5

Serial port (for XSCF)

1

6

LAN port (for XSCF)

2

7

UPC port

2

8

Serial Attached SCSI (SAS) port

1

9

Gigabit Ethernet (GbE) port (for OS)

4

1

2

3

4

5

6

7

8

9
