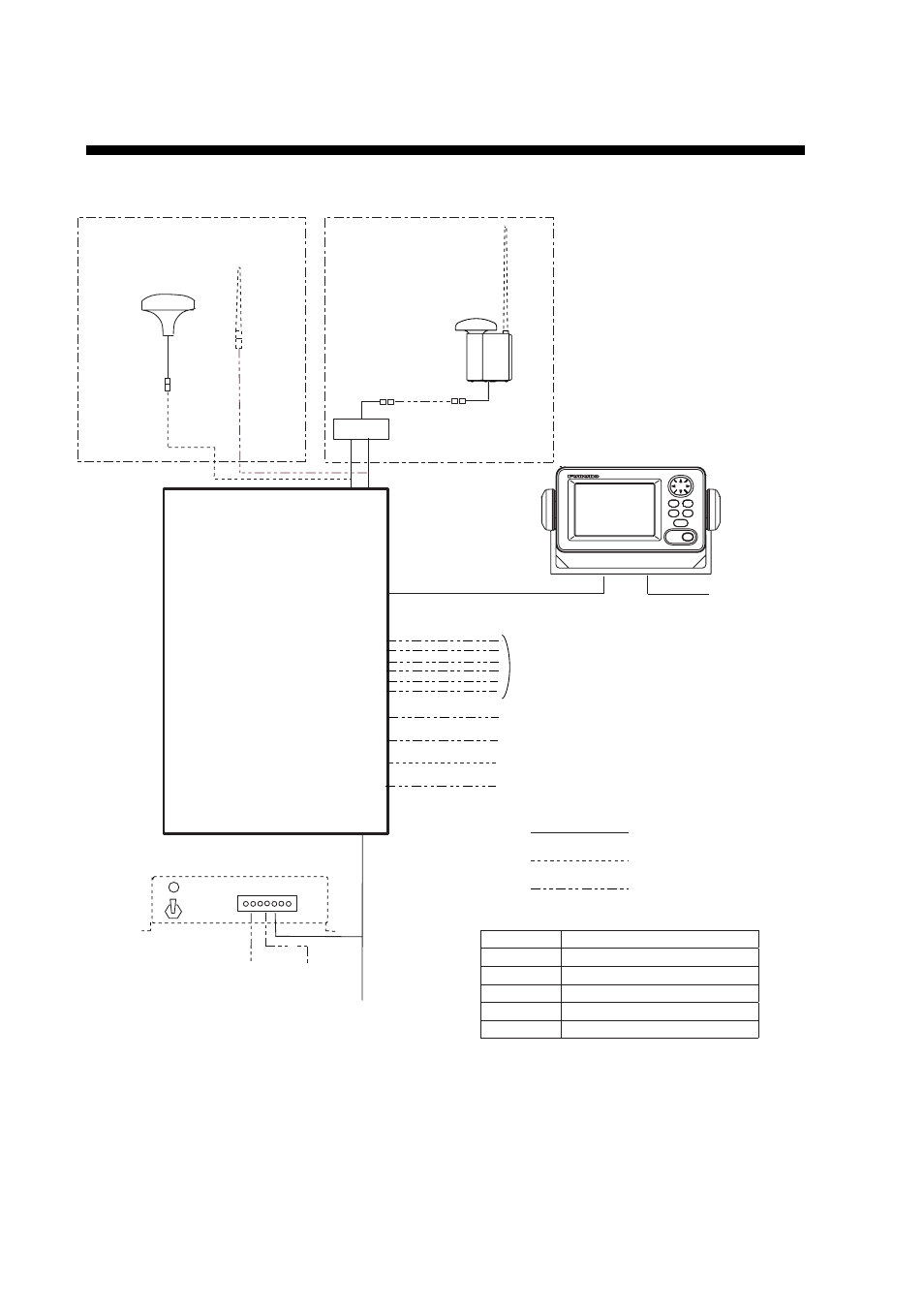

SYSTEM CONFIGURATION
: Standard
: Option
GPS/VHF
combined antenna
GVA-100
GPS antenna
GSC-001
GPA-017S
Distributor unit
DB-1
VHF antenna
Power supply
PR-240
100/110/115/200/
220/230 VAC
1
φ
, 50/60Hz 12-24 VDC
: Local supply
Either
24 VDC
MONITOR UNIT
FA-1502
(two units may
be connected)
12-24 VDC
TRANSPONDER UNIT
FA-1501
External display, Pilot plug,
NavNet2, Sensor
PC, Beacon receiver
Alarm system
UNIVERSAL AIS
STATUS NAV
FA-150 PWR
DISP DIM
MENU ENT
GSC-001 Exposed to the weather
GVA-100 Exposed to the weather
FA-1501 Protected from the weather
FA-1502 Protected from the weather
DB-1 Protected from the weather
PR-240 Protected from the weather
LAN
Blue Sign
