9. MENU OVERVIEW

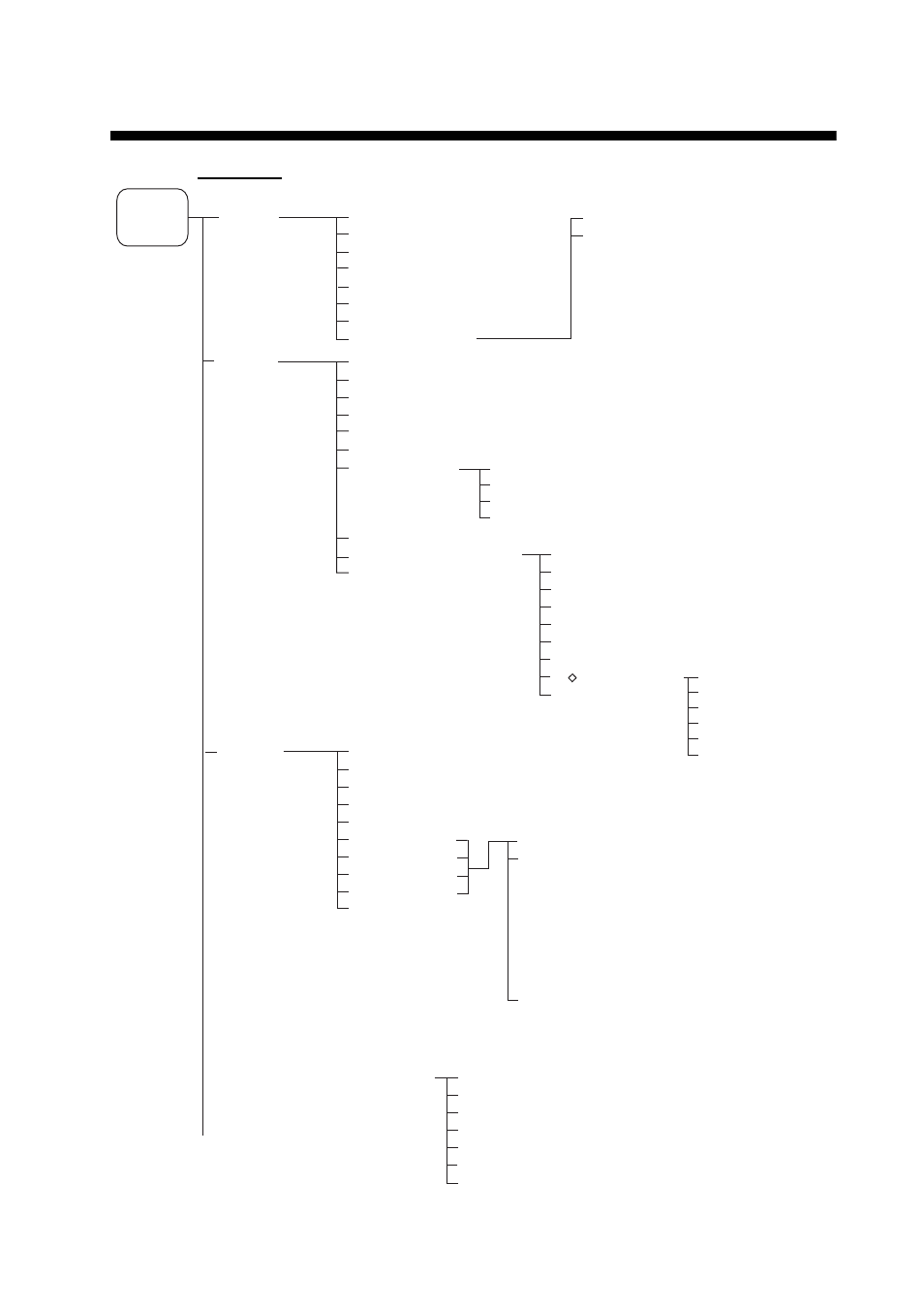

Menu tree
1 BACK
2 TARGET ALARM MODE (IN, OUT)
3 TARGET ALARM LEVEL (1, 2, 3, 4)
4 WATCH ALARM (OFF, 6M, 10M, 12M, 15M, 20M)
5 ALARM SOUND LEVEL (OFF, LOW, MID, HIGH)
6 [ALARM OUT1]
7 [ALARM OUT2]
8 [ALARM OUT3]
9 [ALARM OUT4]
0 ANCHOR WATCH
(OFF, ON)
(0.00-9.99(NM))
1 BACK
2 2ND ECHO REJ (OFF, ON)
3 TUNE INITIALIZE
4 PM (OFF, ON)*
1
5 SART (OFF, ON)
6 WIPER (OFF, 1, 2)
7 ECHO AREA (CIRCLE, WIDE, ALL)
8 PICTURE SELECT
MENU key
or
MENU box
1 BACK
2 EBL1 (REL, TRUE)
3 EBL2 (REL, TRUE)
4 VRM1 (NM, SM, km, kyd)
5 VRM2 (NM, SM, km, kyd)
6 CURSOR BEARING (REL, TRUE)
7 CURSOR RANGE (NM, SM, km, kyd)
8 [ CURSOR SHAPE]
9 CURSOR BRG
SCALE (360 °,
32 POINTS)
1 BACK
2 OWN SHIP MARK (OFF, ON)
3 STERN MARK (OFF, ON)
4 INDEX LINE BEARING (REL, TRUE)
5 INDEX LINE (1, 2, 3, 6)
6 INDEX LINE MODE (VERTICAL, HORIZONTAL)*
2
7 [BARGE MARK]*
3
8 EBL OFFSET BASE POINT (STAB GND, STAB HDG, STAB NORTH)
9 [EBL, VRM, CURSOR SET]
0 RING (OFF, ON)
1 BACK
2 CURSOR (OFF, ON)
3 FRONT HALF LENGTH
4 REAR HALF LENGTH
5 NET WIDTH
6 ROTATE STEP
(360
°,
32 POINTS)
1 [ECHO]
2 [MARK]
3 [ALARM]
(Continued on next page)
1 BACK
2 (TARGET ALARM, WATCH ALARM,
GUARD ZONE, LOST TARGET, CPA
LIMIT, AUTO ACQ TGT FULL,
MAN ACQ TGT FULL, ARP
SYSTEM ERROR, AZIMUTH, HEAD
LINE, TRIGGER, VIDEO, GYRO, LOG,
EPFS, XTE, ARRIVAL WPT, DEPTH,
ALARM ACK OUT, OPERATOR FITNESS)
9 ALARM OUT POLARITY (NORMAL, INVERT)
*
1
Not available on FAR-2157 or FAR-2167DS.
*
2
Appears when 5 INDEX LINE is set for other than "1".
*
3
When BARGE MARK is disabled, INS MARK menu appears.
1 BACK
2 BARGE MARK (OFF, ON)
3 BARGE SIZE (LENGTH and WIDTH)
4 ARRANGEMENT
1 BACK
2 USER CHART (OFF, ON)
3 CURVED EBL (OFF, ON)
4 CHART SYMBOL (OFF, ON)
5 NOTE BOOK (OFF, ON, DISPLAY)
6 ROUTE (OFF, CENT, ALL)
7 PREDICTOR (OFF, ON)
INS MARK
1 BACK
2 PICTURE SELECT#
(PICTURE 1, PICTURE 2,
PICTURE 3, PICTURE 4,
NEAR, FAR, NEAR BUOY,
FAR BUOY, ROUGH SEA,
SHIP, NEAR BIRD,
FAR BIRD)
# Turn OFF/ON item.
