3.4 Bearing Reference
The EBL bearing (and cursor bearing) can be referenced to your ship heading (relative
bearing) or North (true bearing). This radar indicates true or relative bearings with an
R or T in the EBL and cursor data boxes. In the head-up and cursor gyro modes you
can switch between true and relative bearings. In all other modes true bearings are
normally displayed. Heading signal is required to display true bearing.
To select bearing reference, do the following:
1. Left-click the MENU box.
2. Select 2 [MARK] then push the left button.
3. Select 9 [EBL, VRM CURSOR SET] then push the left button.
4. Select 2 EBL1, 3 EBL2 or 6 CURSOR BEARING as applicable then push the left
button.
5. Select REL or TRUE as applicable then push the left button.
6. Push the right button three times to close the menu.

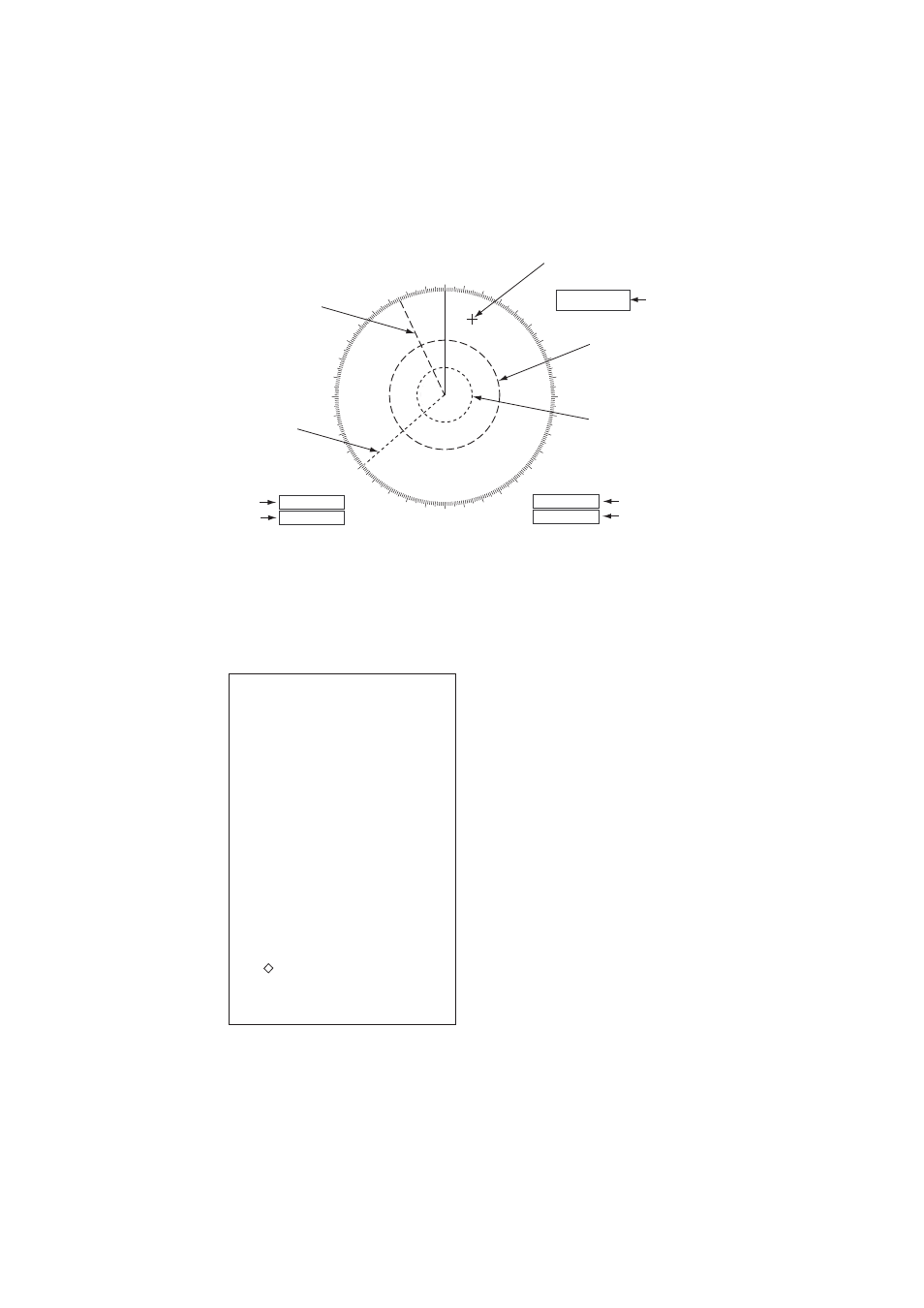

000 010
