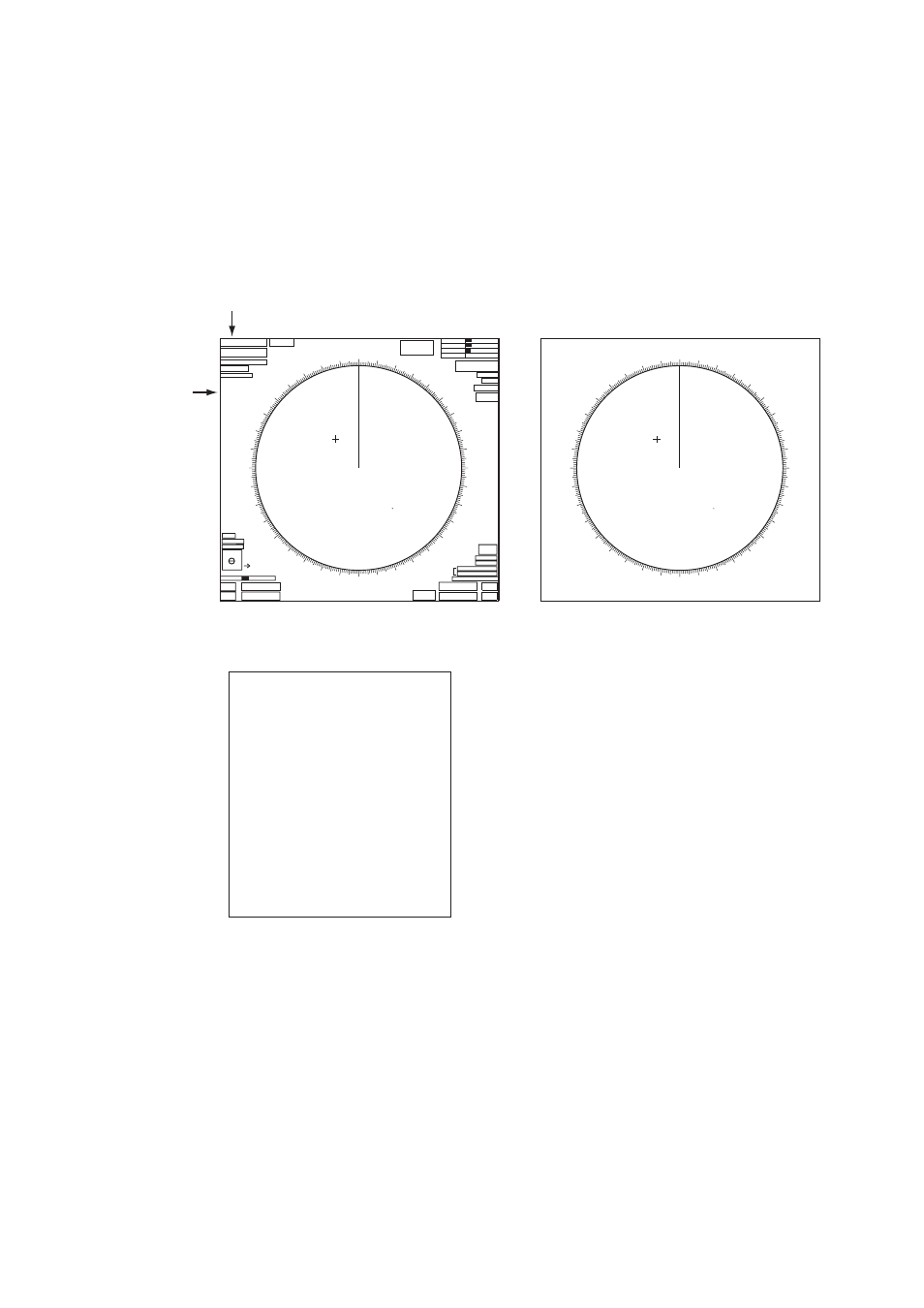

3.2 Turning On-screen Boxes On/Off
If you are using the "wide" or "all" echo display area, the on-screen boxes and indica-
tions outside the effective display area (data fields at right 1/4 of screen are not
included) may obscure radar targets. To view those radar targets, you can turn the
boxes and indications off, by a function key. The default setting of the F2 key turns the
boxes on/off. If the function of the F2 key is set for other than ICON DISP, program for
that function (see "Programming the F1, F2 and F3 keys" on page 24) then follow the
procedure below.
1. Press the F2 key.
2. Select 6 ICON DISP then push the left button. Each press of the button turns the
boxes and indications on or off alternately.
3. Push the right button to close the menu.
