FUJITSU ServerView Resource Orchestrator Cloud Edition J2X1-7611-03ENZ0 User Manual
Page 61

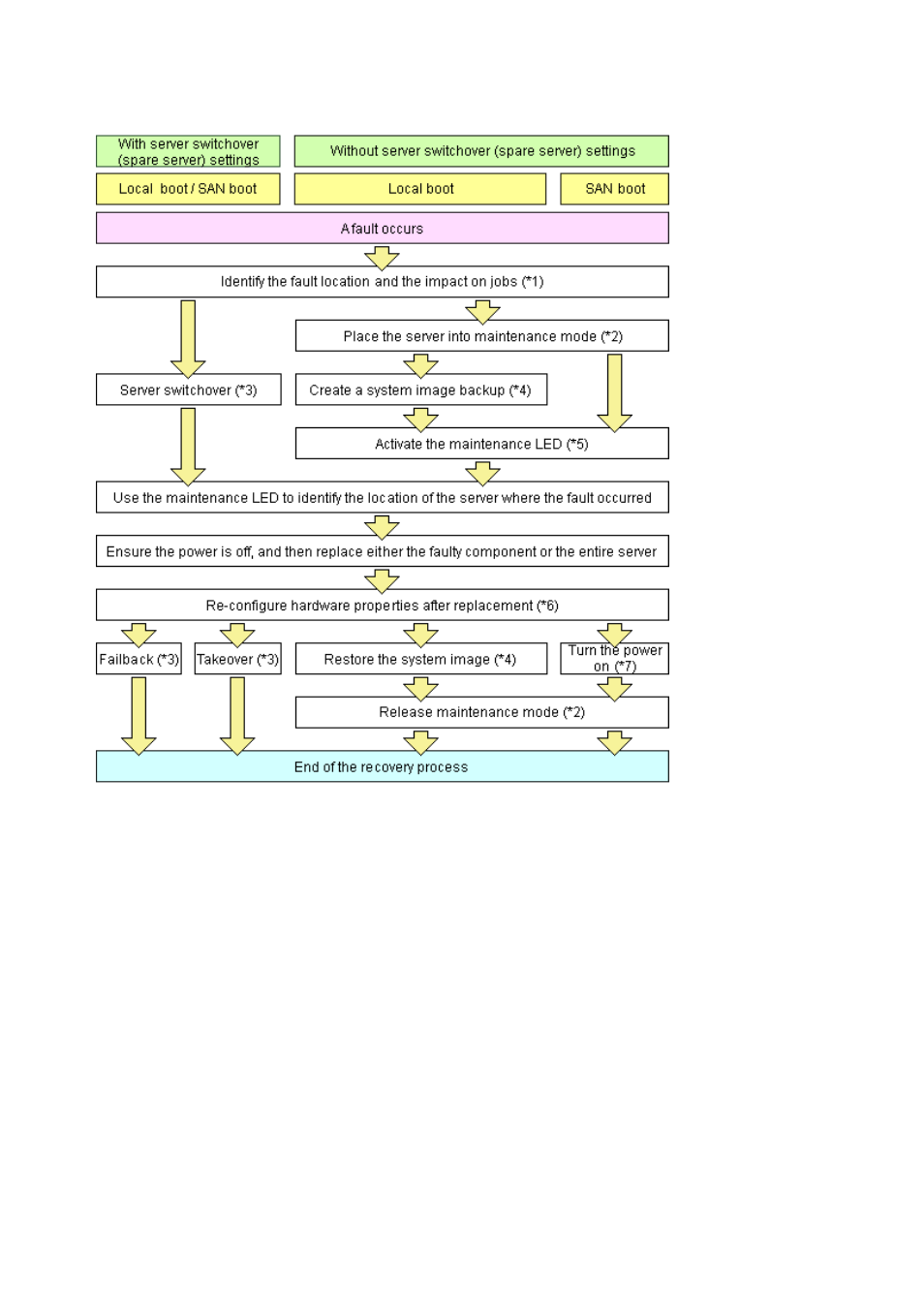

Figure 9.3 Flow of Hardware Maintenance when a Server Fails
*1: For details on how to identify failures, refer to "
11.3 Addressing Resource Failures
*2: For details on how to configure and release the maintenance mode, refer to "Appendix C Maintenance Mode" in the "User's Guide for
Infrastructure Administrators (Resource Management) CE".
*3: For details on server switchover, failback, and takeover, refer to "Chapter 4 Server Switchover" in the "Operation Guide VE".
*4: For details on backing up and restoring system images, refer to "Chapter 16 Backup and Restore" in the "User's Guide VE".
*5: For details on maintenance LED operations, refer to "
". Please note that maintenance LED operations are only
supported for PRIMERGY BX servers.
*6: For details on reconfiguring hardware properties, refer to "
9.3.1 Reconfiguration of Hardware Properties
".
*7: For details on power control, refer to "Chapter 14 Power Control" in the "User's Guide VE".
The following hardware replacements can be performed:
-
Replacing Servers
Replace a server that has been registered in Resource Orchestrator.
For details on replacing servers, refer to "
-
Replacing Server Components
Replace hardware components (such as a NIC, HBA, or hard disk) of a registered server.
For details on replacing or adding server components, refer to "
9.3.3 Replacing and Adding Server Components
".
- 47 -
