SPECIFICATIONS
Range . . . . . . . . . . . . . Up to 70 ft. (21 m) [varies with
surrounding temperature]
Sensing Angle . . . . . . . Up to 180°
Electrical Load . . . . . . . Up to 500 Watt Maximum
Incandescent
Power Requirements . . 120 VAC, 60 Hz
Operating Modes . . . . . TEST, AUTO and MANUAL
MODE
Time Delay . . . . . . . . . 1, 5, 10 minutes
Replacement lamp . . . . T 500W (or less) halogen 120
VAC
HeathCo LLC reserves the right to discontinue prod-
ucts and to change specifications at any time without
incurring any obligation to incorporate new features in
products previously sold.
Motion
TEST AND ADJUSTMENT
❒ Turn on the circuit breaker and light switch.
NOTE: Sensor has a 1 1 /
2
minute warm up period be-
fore it will detect motion. When first turned on
or when switching modes wait 1
1 /
2
minutes.
Bottom of Sensor
Avoid aiming the sensor at:
• Objects that change temperature rapidly, such as
heating vents and air conditioners. These heat
sources could cause false triggering.
• Areas where pets or traffic may trigger the control.
• Nearby large, light-colored objects reflecting light
may trigger the shut-off feature. Do not point other
lights at the sensor.

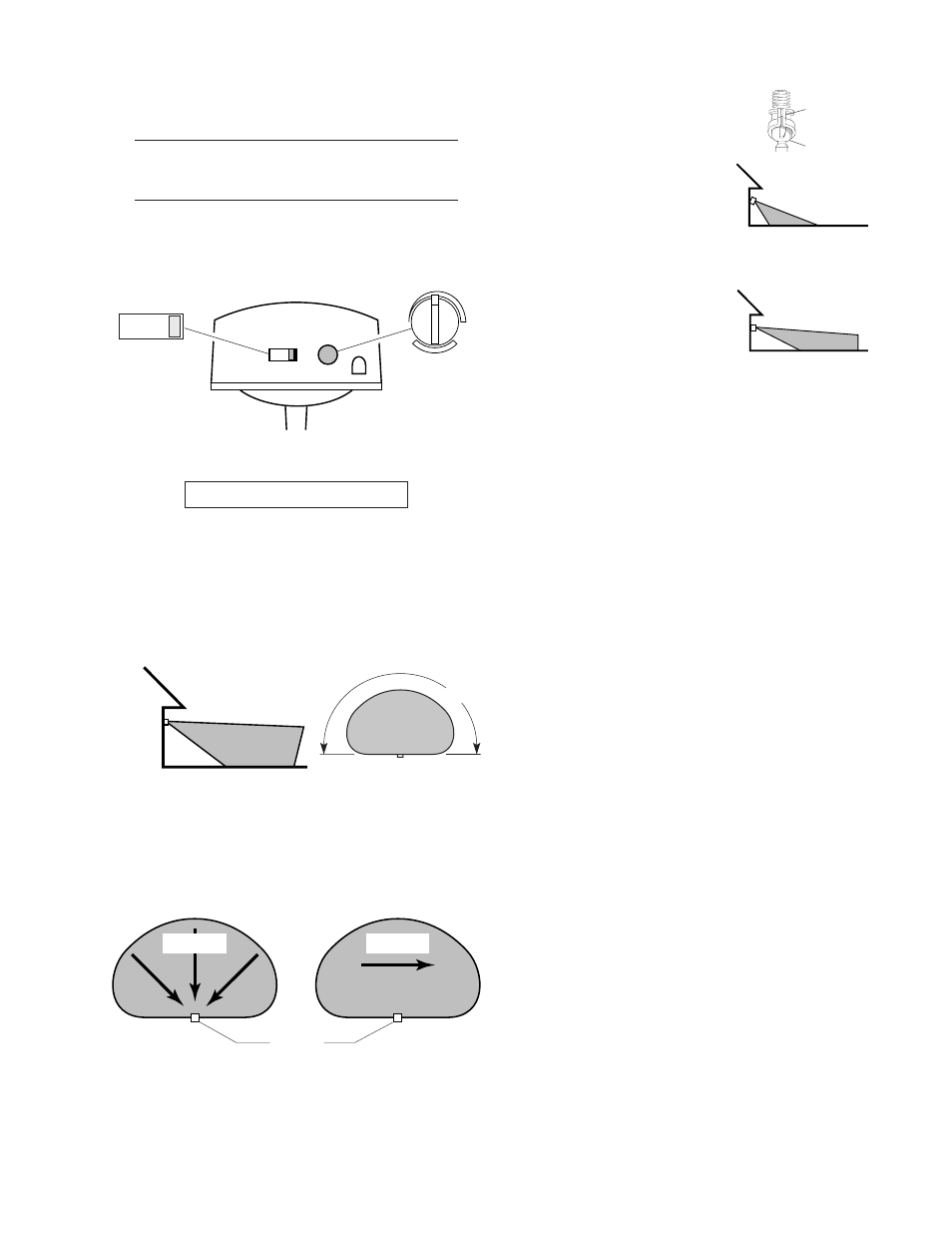

Maximum Range Maximum
Coverage Angle
8 ft.
(2.4 m)
70 ft.
(21 m)
Least Sensitive Most Sensitive
Sensor
The detector is less sensitive to motion directly towards it.
180°
❒ Turn the RANGE control to the mid position and the
ON-TIME control to the TEST position.
❒ Loosen the clamp screw in the
sensor ball joint and gently
rotate the sensor.
❒ Walk through the coverage
area noting where you are
when the lights turn on. Move
the sensor head up, down,
or sideways to change the
coverage area.
❒ Adjust the RANGE as needed.
RANGE set too high may
increase false triggering.
❒ Secure the sensor head’s
aim by tightening the clamp
screw. Do not overtighten the
screw.
❒ Set the amount of TIME you
want the lights to stay on after
motion is detected (1, 5, or 10 minutes).
Clamp
Screw
Ball
Joint
Aim Sensor
Down for Short
Coverage
Aim Sensor
Higher for Long
Coverage
Motion
RANGE
10 5 1 TEST
ON-TIME
MIN MAX
