2 598-1323-01

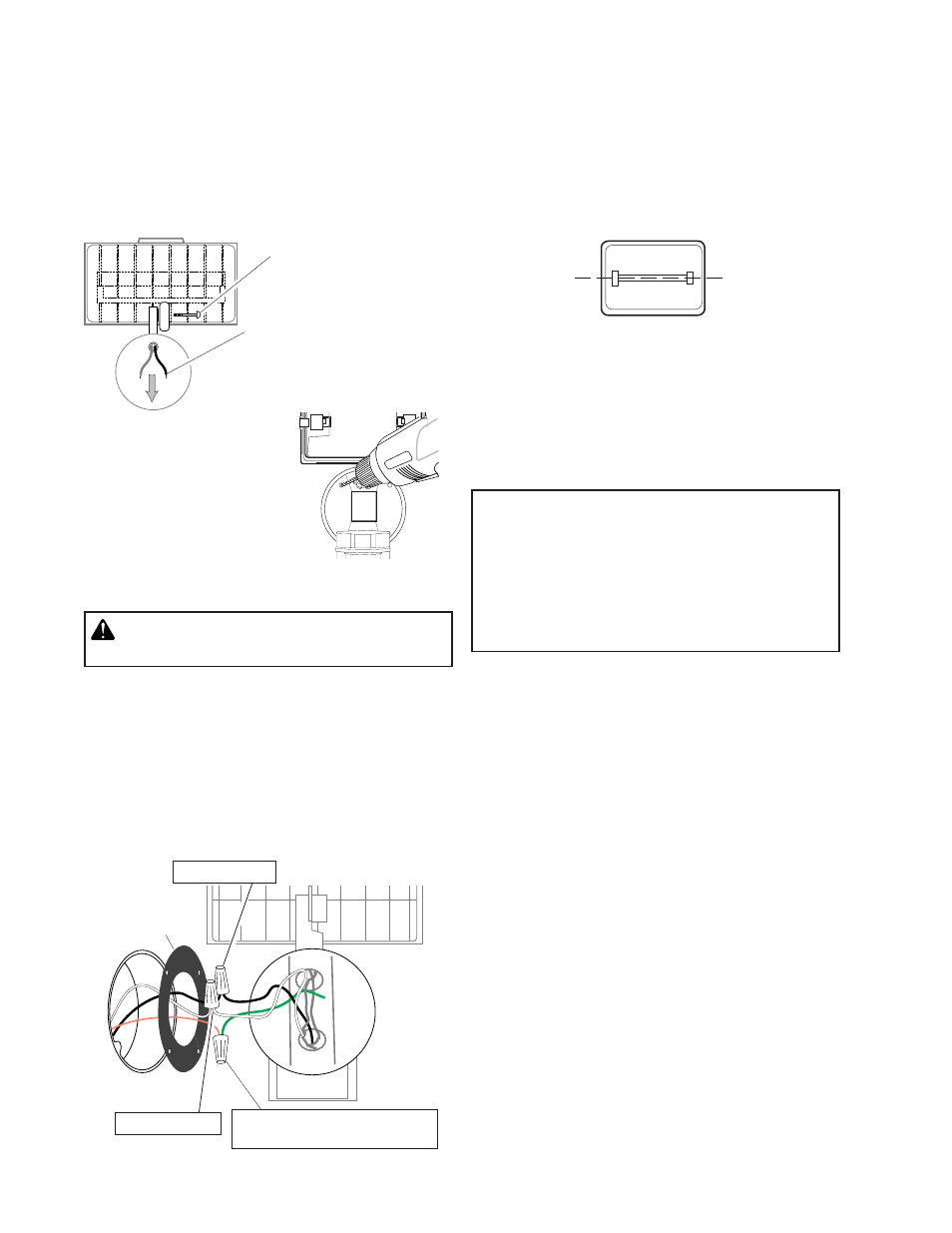

Mount the Light Control
❒ Align the light control cover plate and cover plate
gasket and the junction box. Insert and tighten the
mounting screws.
❒ If not installed on a weatherproof box or if an adaptor
plate is used, caulk the wall plate and mounting
surface with silicone weather sealant.
Cover Plate
Gasket
+/- 4°
The halogen light must be
mounted horizontally (+/- 4°).
MOUNT HORIZONTALLY
Bulb Installation and Re-lamping
❒ When re-lamping, turn power off and let the fixture
cool.
CAUTION to avoid fire or burn hazards:
• Allow fixture to cool before touching. The bulb and
fixture operate at high temperatures.
• Keep fixture at least 2" (51 mm) from combustible
materials. Do not aim at objects closer than 3 feet
(1 m).
• Re-lamp with type T halogen, 500 W max., 120
VAC lamp only.
❒ Drill out the holes if needed
to mount the backplate to the
junction box.
White to White
INSTALLATION
CAUTION: Risk of fire. This fixture is designed for
wall mounting only. DO NOT install on a ceiling or
soffit.
For easy installation, select an existing light with a wall
switch for replacement.
❒ Attach the lamp arm to
the backplate arm and
secure with the long
bolt.
Note: When tightening the arm
screw, pull on the wires to make
sure the wires are not pinched
by the joint.
❒ Remove the existing light fixture.
❒ The S-hook can be used to hold the fixture while
wiring. The small end of the hook can be inserted
into a hole in the junction box. The large end goes
around the “neck” of the fixture.
❒ Route the light control’s wires through the large
hole in the gasket.
❒ Twist the junction box wires and fixture wires together
as shown. Secure with a wire connector.
Black to Black
Junction box ground wire to green
ground wire on fixture.
❒ Remove glass cover and remove the old bulb by
pushing the bulb towards the right until the left side
of the bulb is clear of the left socket.
❒ To insert the new bulb, push the bulb into the right
socket so the bulb fits completely into the left
socket.
❒ Check that the bulb is seated properly.
❒ Re-install the glass cover.
For proper operation and safety, the light fixture must
be above the sensor and the sensor head must be
rotated so that the controls are on the bottom.
Wire the Light Control
WARNING: Turn power off at circuit breaker
or fuse.
