2.3.1.2 Rear Views

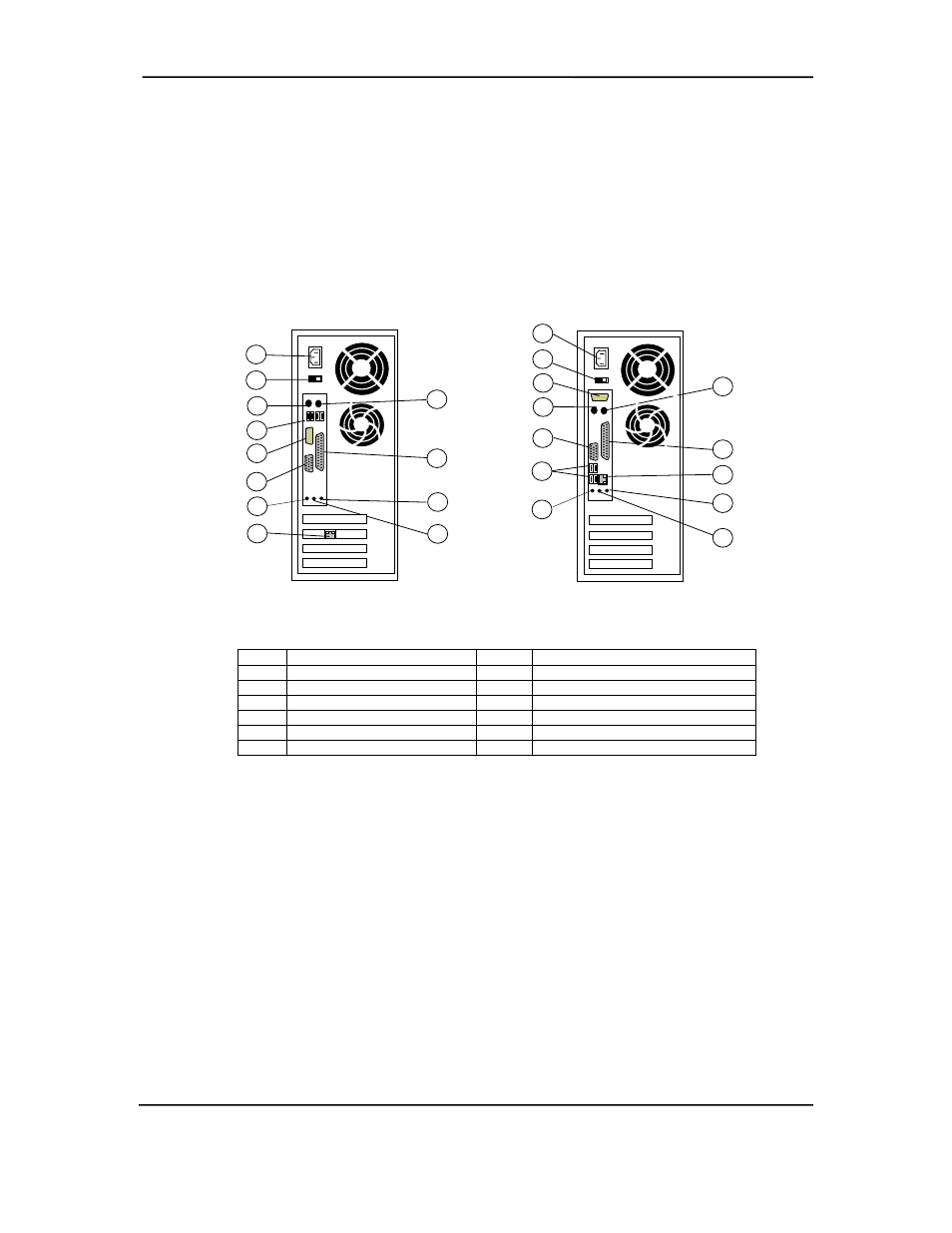

Figure 2-4 shows the rear view of the Compaq D315 and HP d325 systems.
5
9
9
10
3
6
12
1
11
4
7
2
9
8 10
3
6
12
1
11
7
4
5
2
hp d325 Compaq D315
Item Description Item Description
1 AC voltage switch 7 VGA monitor connector
2 AC power connector 8 Audio microphone in jack
3 Mouse connector 9 Audio line input jack
4 Keyboard connector 10 Audio line output jack
5 Serial connector 11 Network interface connector
6 Parallel connector 12 USB ports (4)
Figure 2-3. Cabinet Layout, Rear Views
Compaq D315 and hp d325 Personal Computers
Featuring the AMD Athlon XP Processor
Second Edition - March 2003
2-5
