Analog Out Map
This control selects which two SDI embedded audio channels receive the
incoming L R analog audio when Embed into SDI is set to
Analog
or
Analog + DP
.
Choose from Ch 1-2, Ch 3-4, Ch 5-6, or Ch 7-8.

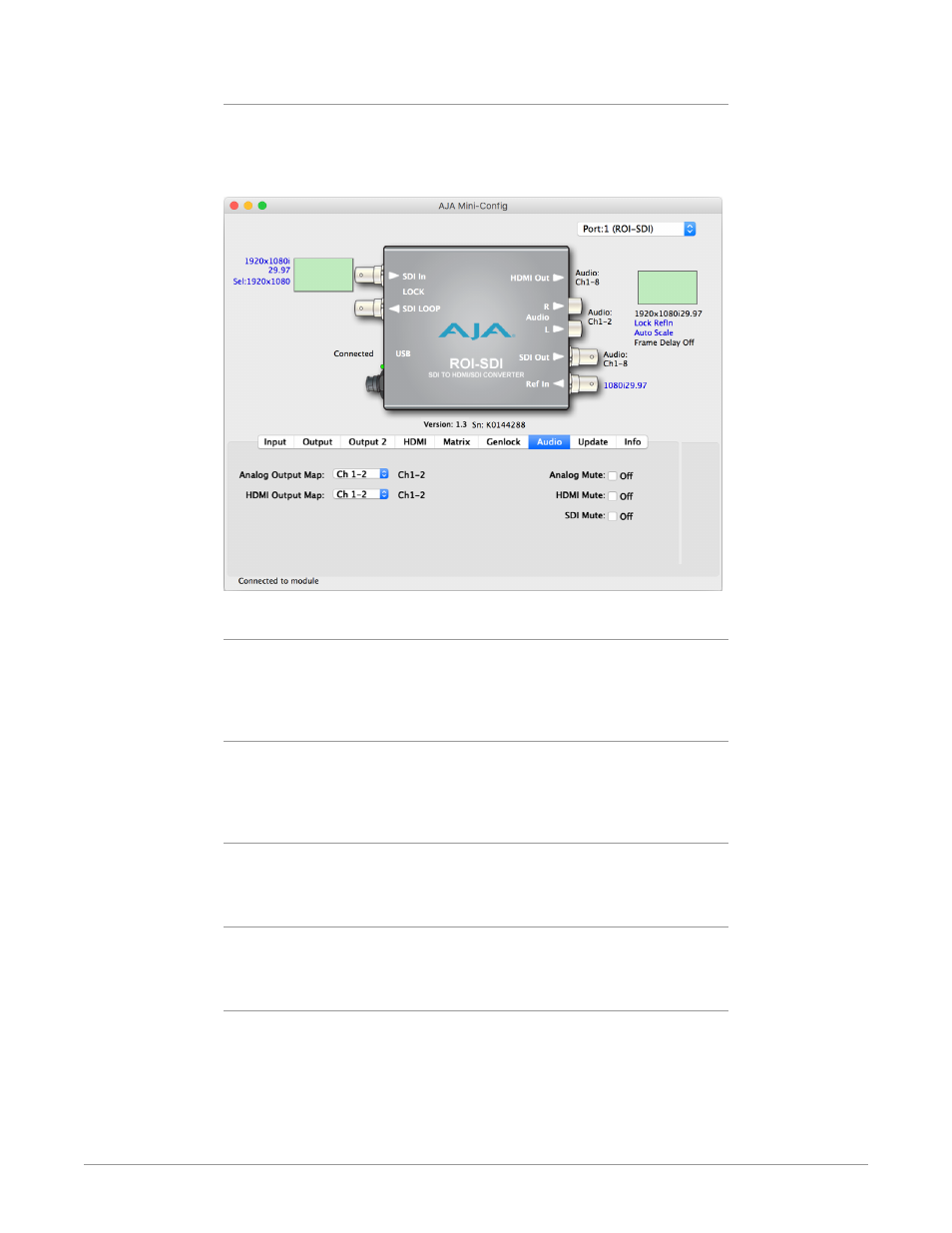

Figure 23. ROI-SDI Audio Tab Screen
Analog Output Map
This control selects which two SDI embedded audio channels, when present, are
sent to the outgoing L R analog audio outputs. Choose from Ch 1-2, Ch 3-4, Ch
5-6, or Ch 7-8.
HDMI Output Map
This control selects which SDI embedded audio channels, when present, are
embedded in the HDMI output. Choose from Ch 1-8 (default), Ch 1-2, Ch 3-4, Ch
5-6, or Ch 7-8.
Analog Mute
Select the Analog Mute checkbox to mute the audio that is being sent to the L R
analog audio outputs.
HDMI Mute
Select the HDMI Mute checkbox to mute the audio that is being sent to the HDMI
output.
SDI Mute
Select the SDI Mute checkbox to mute the audio on the processed SDI output.
