ROI Series Mini-Converter v1.7 31 www.aja.com
X, Y, W, H
The currently calculated Input Region of Interest position (X,Y) and size (W,H) are
displayed here. These values are grayed out and cannot be adjusted. Once the
values are applied, they can be adjusted on the Input tab.
Apply
Click on the Apply button to transfer the current Input Region of Interest
dimensions to the Input screen.
Genlock Tab Screen

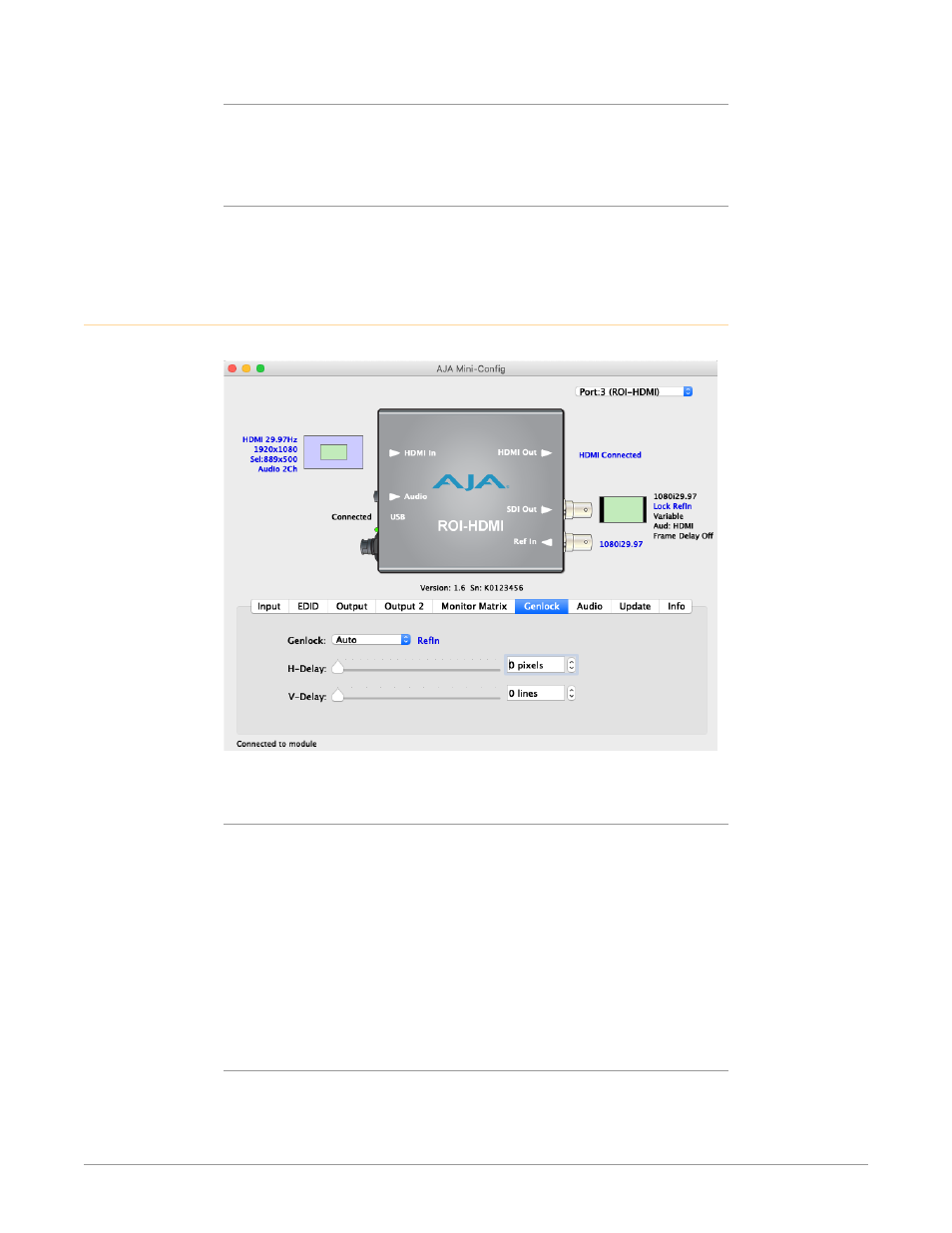

Figure 20. Genlock Tab Screen, HDMI, DVI, and SDI Models
The Genlock screens vary depending on the ROI model.
Genlock
The Genlock control offers the following options, depending on ROI model:
• Auto – use Ref Input if present, then Input signal if valid, then free-run
• Free-run – Lock to internal clock
• Ref In – Lock to the Video Reference input
• HDMI – Lock to the HDMI/DVI Input (if valid video rate)
• SDI – Lock to the SDI Input (if valid video rate)
NOTE: When HDMI or SDI is selected, ROI can lock to input formats that have a SMPTE
raster and frame rate and are within 50 ppm of the SDI output format.
NOTE: The actual resultant Genlock status is reported to the right of the selection menu.
H-Delay and V-Delay
These controls let you adjust H and V delay from the sync input by dragging the
slider or entering values in the windows on the right. Horizontal delay is entered
in pixels, while Vertical delay is entered in lines.
