Installing on a Wall

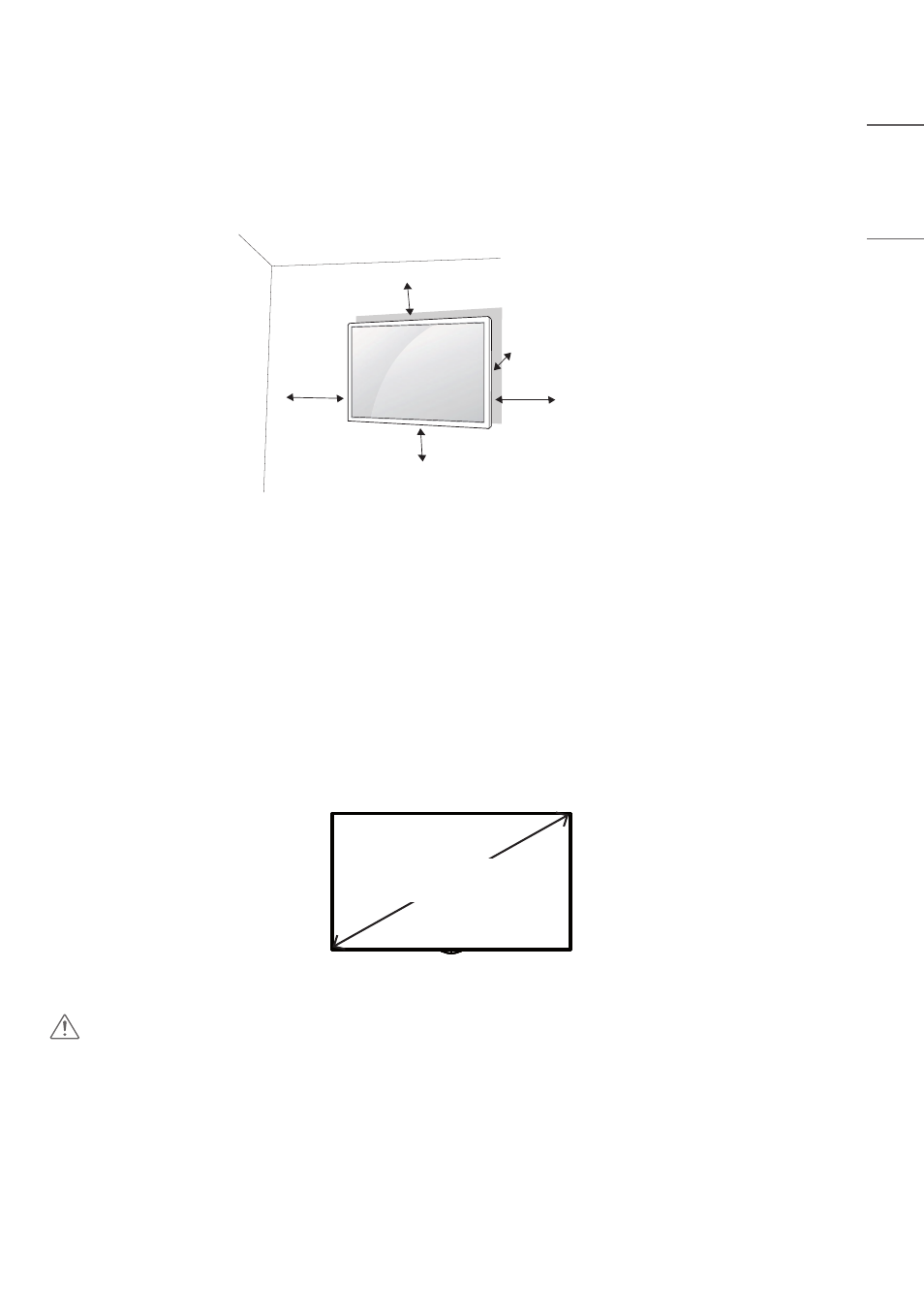

For proper ventilation, allow a clearance of 100 mm (3.9 inches) on each side and from the wall. Detailed installation
instructions are available from your dealer, see the optional Tilt Wall Mounting Bracket Installation and Setup Guide.
100 mm (3.9 inches)
100 mm
100 mm
100 mm
100 mm
To install your monitor on a wall, attach a wall mounting bracket (optional part) to the back of the monitor.
Make sure that the wall mounting bracket is securely fixed to the monitor and to the wall.
1
Use only screws and wall mounting brackets that conform to VESA standards.
2
Screws which are longer than standard length may damage the inside of the monitor.
3
A non-VESA standard screw may damage the product and cause the monitor to fall. LG Electronics is not liable for
any accidents related to the use of non-standard screws.
4
Please use VESA standard as below.
•
785 mm (30.9 inches) and above
* Fixing screws: Diameter 8.0 mm x Pitch 1.25 mm x Length 14 mm (Max: 18 mm (0.7 inches))
(Diameter 0.3 inches x Pitch 0.04 inches x Length 0.5 inches)
785 mm
(30.9 inches)
CAUTION
•
Disconnect the power cord before moving or installing the monitor to avoid risk of electric shock.
•
If you install the monitor on a ceiling or slanted wall, it may fall and result in injury.
•
Do not over tighten the screws as this may damage the monitor and void your warranty.
•
Use only screws and wall mounting brackets that meet the VESA standard. Any damage or injuries caused by misuse
or use of improper accessories are not covered by the warranty.
•
If you want to install the monitor on the wall with the media player and OPS kit attached, leave a space of at least
45 mm (1.7 inches). Otherwise, interference may occur.
