PoE Installation Manual
Specifications
Appendix
Tr
oubleshooting
Configuration
Network Clock
Connect
Installation
Intr
oduction
Specifications
Power over Ethernet Digital/Calendar Clocks
Available in the following configurations:
POEXXXXSXE
POEXXXXSEB - Buzzer version
POEXMXXSE - Calendar version
POEXMXXSEB - Calendar buzzer version
Note: The X's are model dependent
Optional Products:
PoE Injector, single port – TMA200
USB Drive with Network Clock Connect Software – H004167B-POE
Double Dial Kit (part number varies by size)
Features
• Time Zone Management
• Supports up to 10 SNTP servers for redundancy
• Supports Daylight Saving Time
• 12/24 Hour Mode with AM/PM indicators
• Power over Ethernet (IEEE802.3af)
• DHCP or Static IP addressing
• Network Clock Connect configuration
• Programmable Brightness Controls (High, Low, Sleep, Off)
• Countdown Timer
• Scheduling (Buzzer/Relay) - maximum of 100 scheduled events
• Calendar Clock Display Modes:
-MM:DD:YY
-DD:MM:YY
-YY:MM:DD
-M:D:YY
-D:M:YY
-YY:M:D
• Configurable date/time toggle durations
Specifications
Dimensions: 2.5" display: 4 & 6 digit - 14
1
/
8
" x 4
1
/
8
" x 2
1
/
4
"d
4" display: 4 digit - 17
1
/
2
" x 6
1
/
16
" x 2
3
/
8
"d
4" display: 6 digit - 23
5
/
8
" x 6
1
/
16
" x 2
3
/
8
"d
Weight: Varies by model
Power Consumption: PoE, IEEE 802.3af compliant
Operating Temperature: 32˚F to 104˚F (0˚ to 40˚C)
Operating Humidity: 95% maximum, non-condensing
Accuracy: ±1 second
Relay Option Specifications
Dry contact closure
Wiring for the internal relay closure:
Maximum Voltage: 125vdc, 150vac
Maximum Switched Current: 1A
Maximum Carrying Current: 1A
Maximum Switch Power: 30W (DC), 60VA (AC)
Buzzer Option Specifications
Sound Level: 65dBA at 10 feet
1
2
3
Normally open
Normally closed
Common
Activate
+
–
Alarm
System
Comm

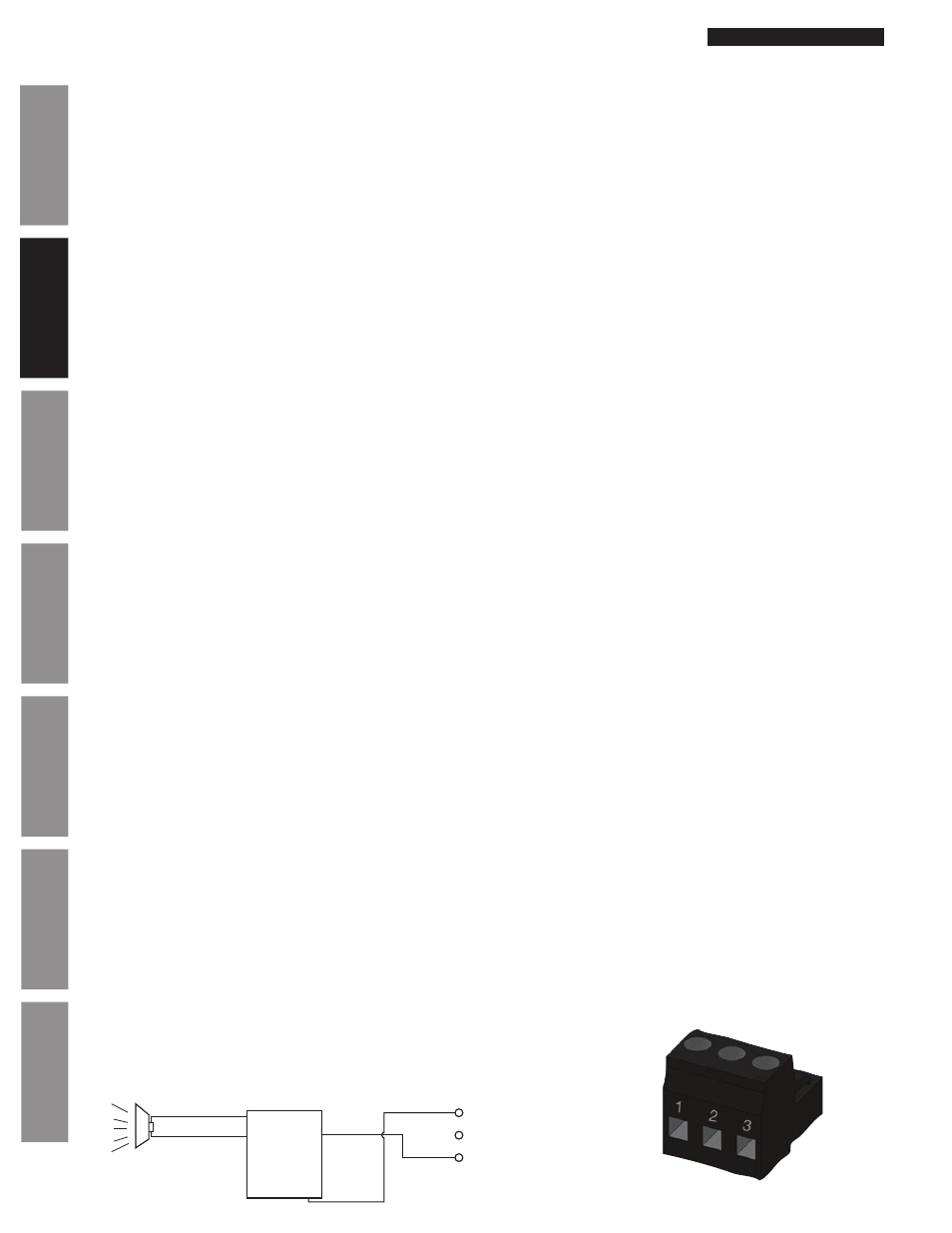

Connection Diagram
Connector Relay
Size Digits
Color Power (in watts)
2.5" 4 Green
7.6W
2.5" 4 Red
8.1W
2.5" 6 Green 10.6W
2.5" 6 Red
11.7W
Size Digits
Color Power (in watts)
4" 4 Green
7.5W
4" 4 Red
8.5W
4" 6 Green 11.2W
4" 6 Red 11.7W
