Digital Clock Installation
Digital Double Face Display Mounting
CAUTION: RISK OF ELECTRICAL SHOCK - Disconnect and lock out power to the electrical box before installing or servicing the clock.
u

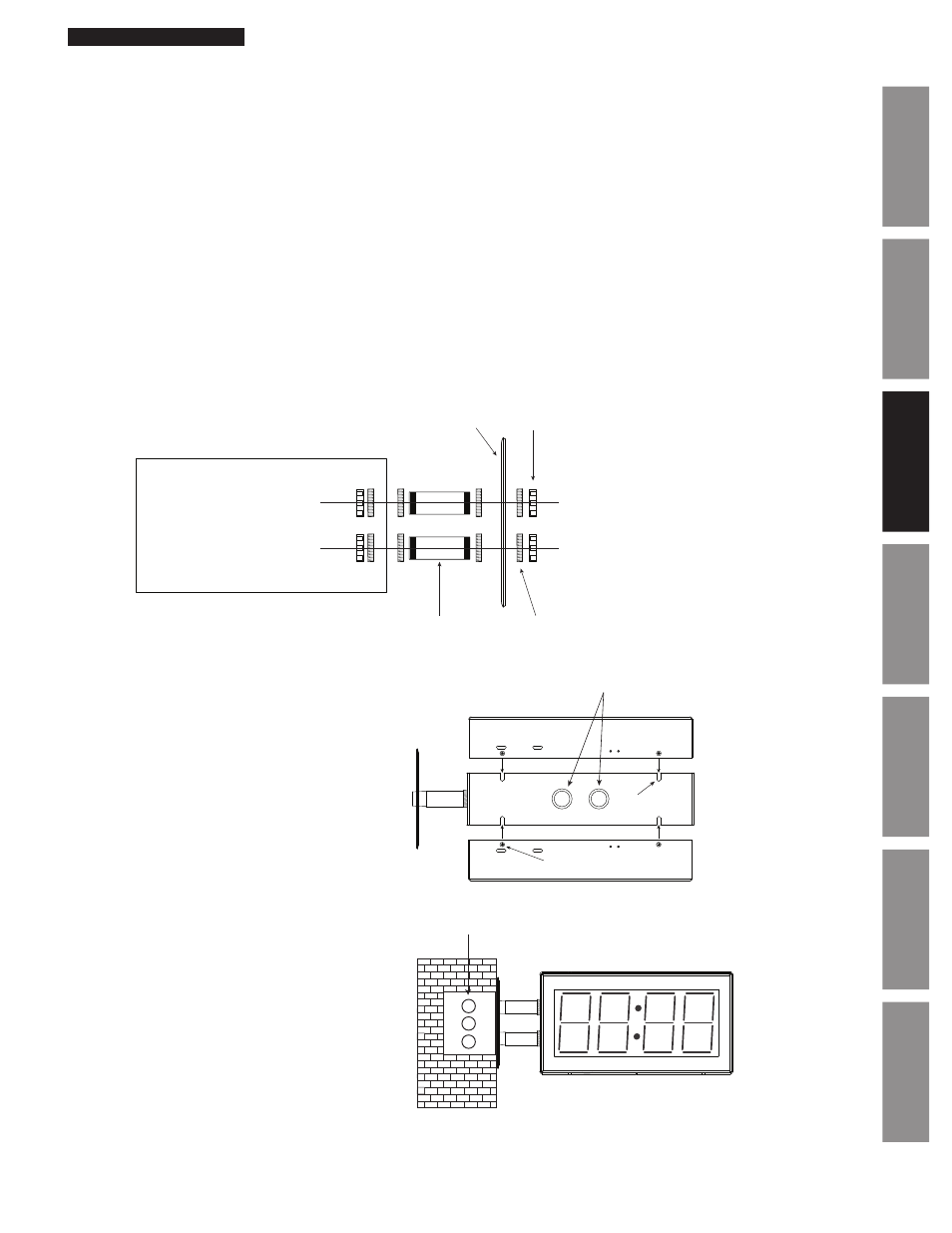

For wall mount, assemble double dial clock enclosure as shown in Figure 1. For ceiling mount, use the same assembly procedure,
except use the two knockouts that are located on the top of the wraparound (see Figure 2).
v
Depending on the orientation of the 4" square backbox, use two #8-32 x
3
/
4
" screws and two #8-32 nuts for the two dummy holes in
the mounting plate.
w
Run patch cable through the conduit.
x
Using two #8-32 x
3
/
4
" screws, mount double dial clock enclosure assembly to 4" square backbox (see Figure 2).
y
Loosen the four screws in the digital clock approximately
3
/
32
" (see Figure 2)
z
Make patch cable connection to the digital clock.
Slide the digital clock into the wraparound making sure the screws and slots line up (see Figure 2), then tighten the 8 screws securely.
Repeat steps 5 through 7 for the second clock
Slots
Screws
4 square
backbox
(not supplied)
Wraparound
Digital clock
Digital clock
Knockouts for ceiling mount
WALL
Wraparound
Plate
Bushing
Locknut
Conduit
Figure 1
Figure 2
