Appendix D: Brightness Control
Scheduling Example

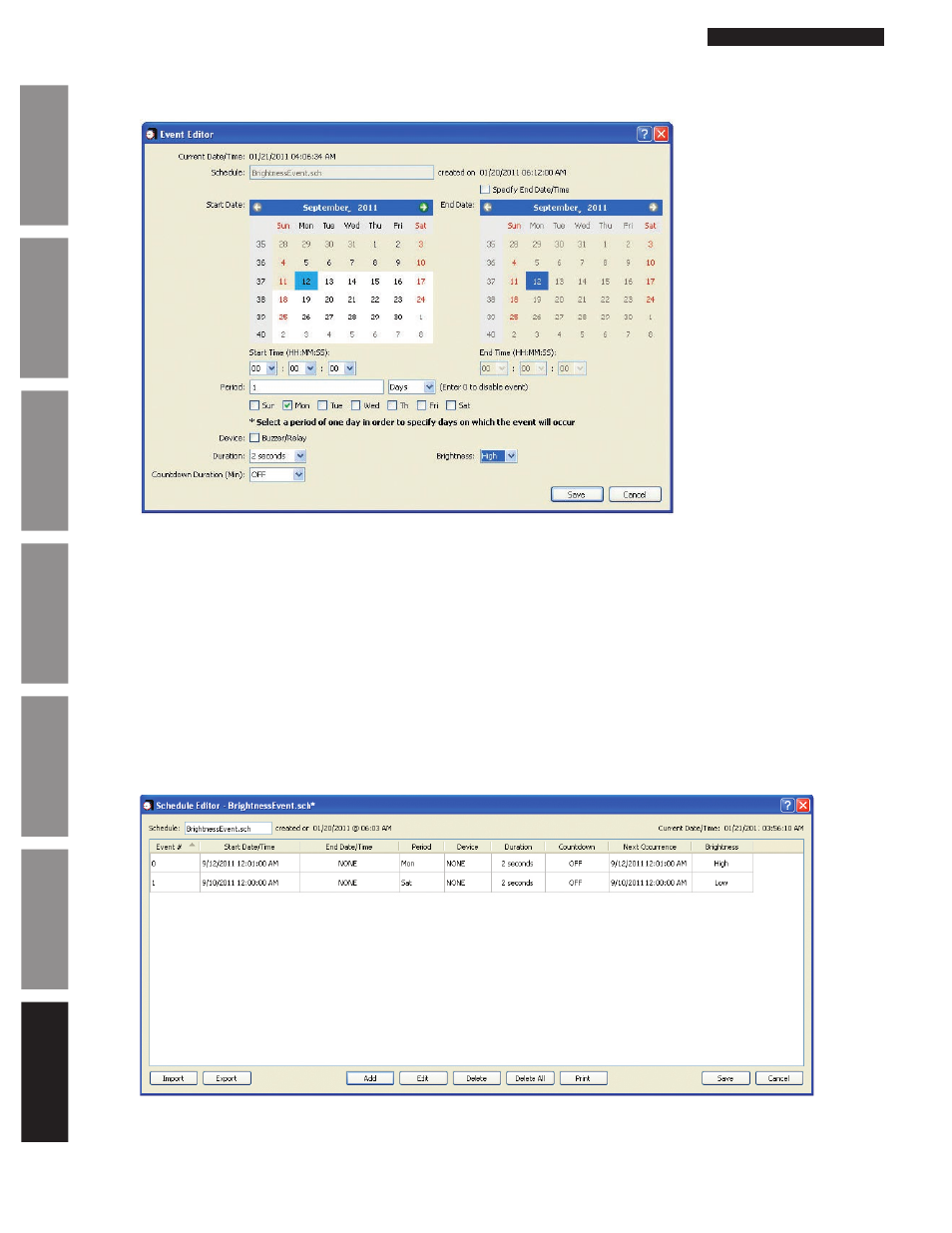

Step 5: Enter the parameters as shown below:

• The Start Date is set to September 12, 2011

• The Start Time is 00:00:00 (Hours dropdown is in military format) which is 12:00 AM

• The Period is set to 1 Day

• The Buzzer/Relay checkbox is not selected

• The Duration is set to 2 seconds (Duration is irrelevant as long as it is not set to ON or OFF for this example)

• Brightness is set to High

• Countdown Duration is set to Off (available only with clocks with countdown functionality)

• No End Date/Time is specified for the recurring event

Step 6: Name the schedule in the Schedule Editor to BrightnessEvent.sch

Step 7: Click Save in the Schedule Editor

Event #0
