Appendix C: Buzzer/Relay
Scheduling Examples

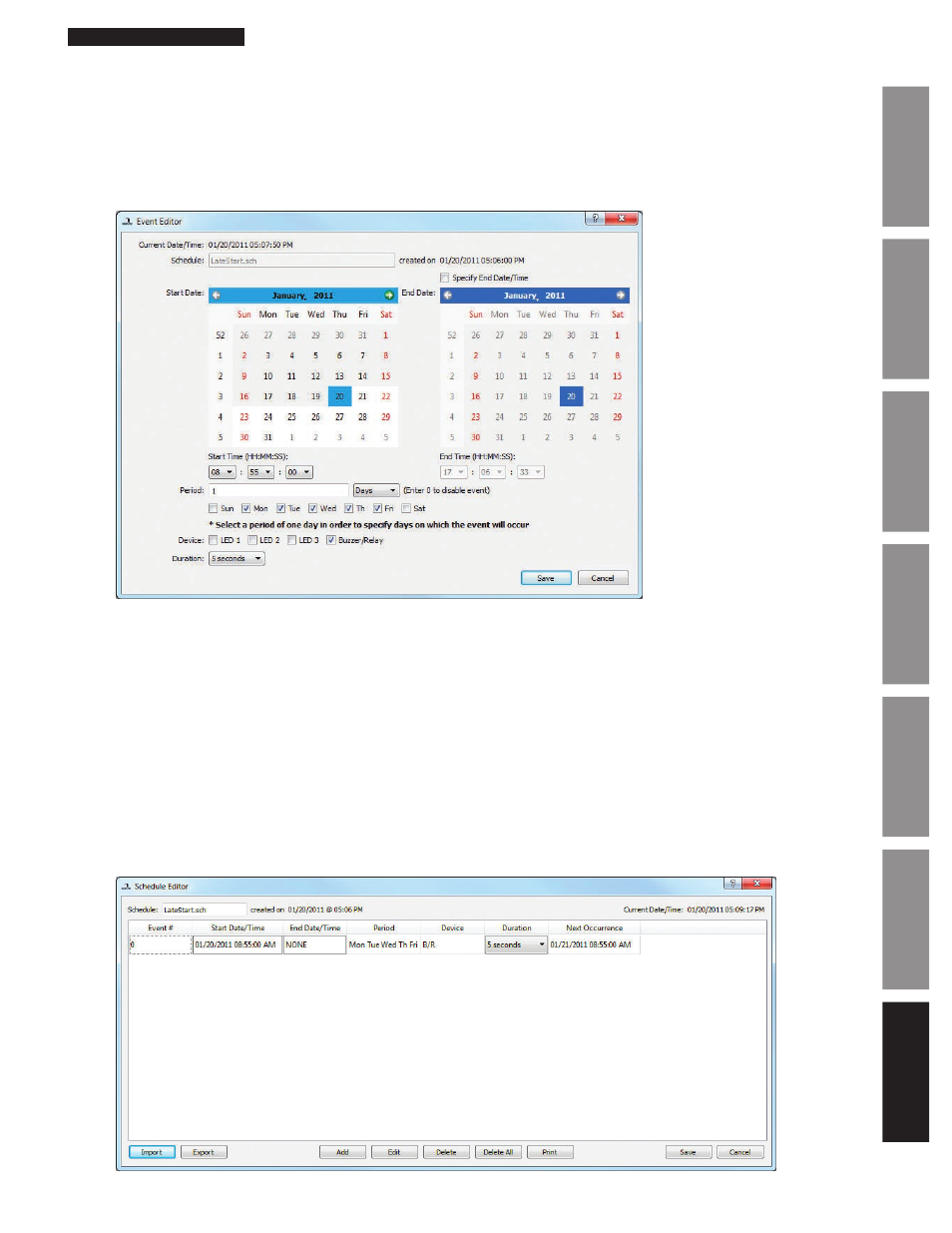

Example: Scheduling Recurring Events
To schedule a new event that turns on the buzzer for 5 seconds starting at 8:55 AM every weekday Monday – Friday, follow the
instructions below:
Step 1: Click on Add to prompt the Event Editor
Step 2: Enter the parameters as shown below:
• The Start Date is set to the current date
• The Start Time is 08:55:00 (Hours dropdown is in military format) which is 8:55 AM
• The Period is set to 1 Day
• The Mon, Tue, Wed, Th, Fri checkboxes are selected
• The Buzzer/Relay checkbox is selected
• The Duration is set to 5 seconds
• No End Date/Time is specified for the recurring event
Step 3: Click Save in the Event Editor
Step 4: Name the schedule in the Schedule Editor to LateStart.sch
Step 5: Click Save in the Schedule Editor
n Note: The maximum number of scheduled events is 100.
