PoE Installation Manual
Appendix
Tr
oubleshooting
Configuration
Network Clock
Connect
Installation
Intr
oduction
Specifications
Appendix C: Buzzer/Relay
Scheduling Examples

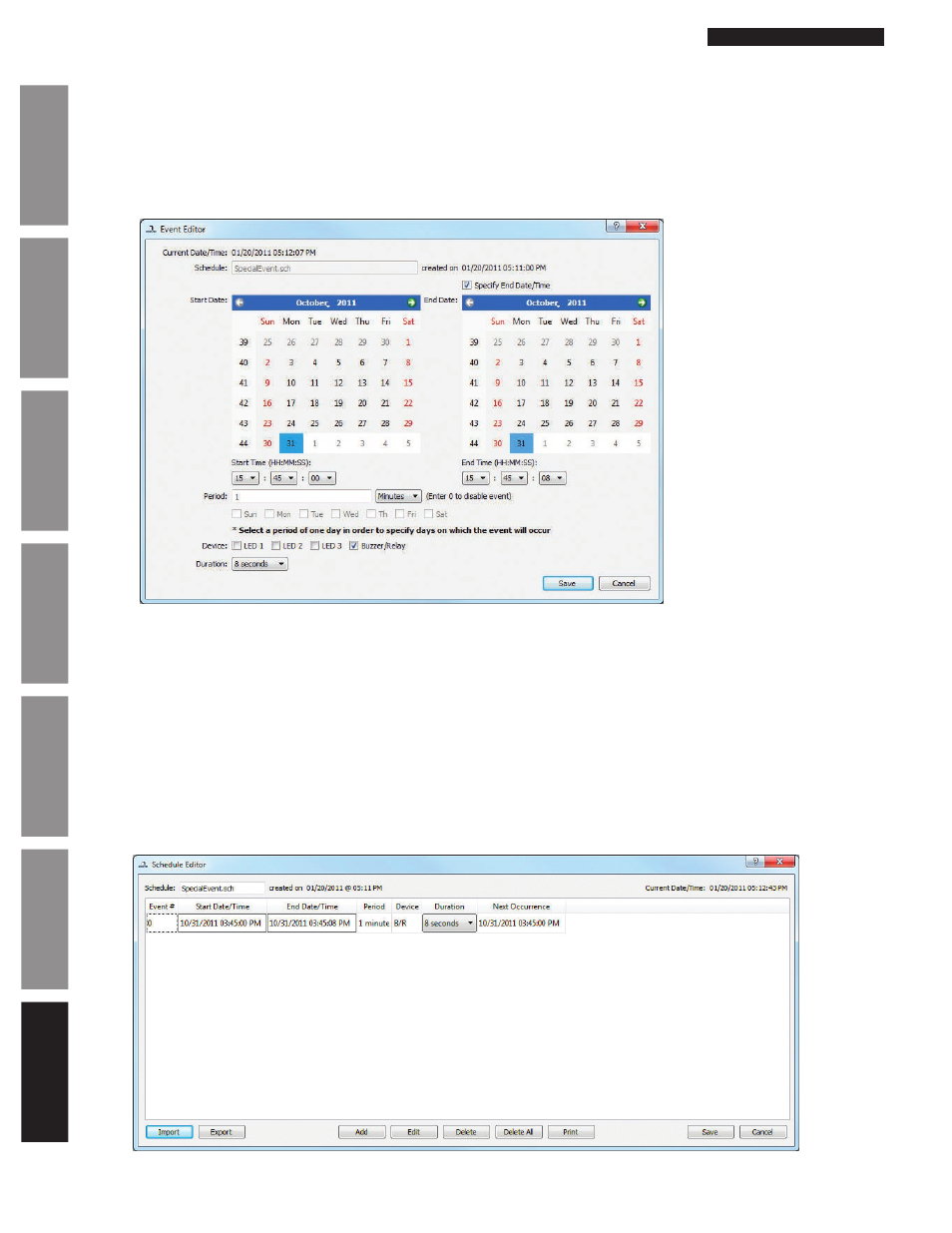

Example: Scheduling Special Events
To schedule a new special event that turns on the buzzer for 8 seconds starting at 3:45 PM on October 31, 2011, follow the
instructions below:
Step 1: Click on Add to prompt the Event Editor
Step 2: Enter the parameters as shown below:
• The Start Date is set to October 31, 2011
• The Start Time is 15:45:00 (Hours dropdown is in military format) which is 3:45 PM
• The Period is set to 1 Minute (Period is irrelevant since this is a special event)
• The Buzzer/Relay checkbox is selected
• The Duration is set to 8 seconds
• The End Date/Time is specified as the start time plus the event duration. Therefore, October 31, 2011 at
15:45:08 (3:45:08 PM)
Step 3: Click Save in the Event Editor
Step 4: Name the schedule in the Schedule Editor to SpecialEvent.sch
Step 5: Click Save in the Schedule Editor
