Digital Clock Installation
CAUTION: RISK OF ELECTRICAL SHOCK - Disconnect and lock out power to the electrical box before installing or servicing the clock.
u
Use mounting template included with the Quick Start Installation Guide to place mounting screws in the wall.
v
Run CAT 5 or higher Ethernet patch cable from the PoE switch or PoE injector to the clock enclosure.
w
Connect the patch cable to the clock. Route field wiring away from sharp projections, corners and internal components.
x
Hang clock on mounting screws.
y
Confirm correct operation of the clock.

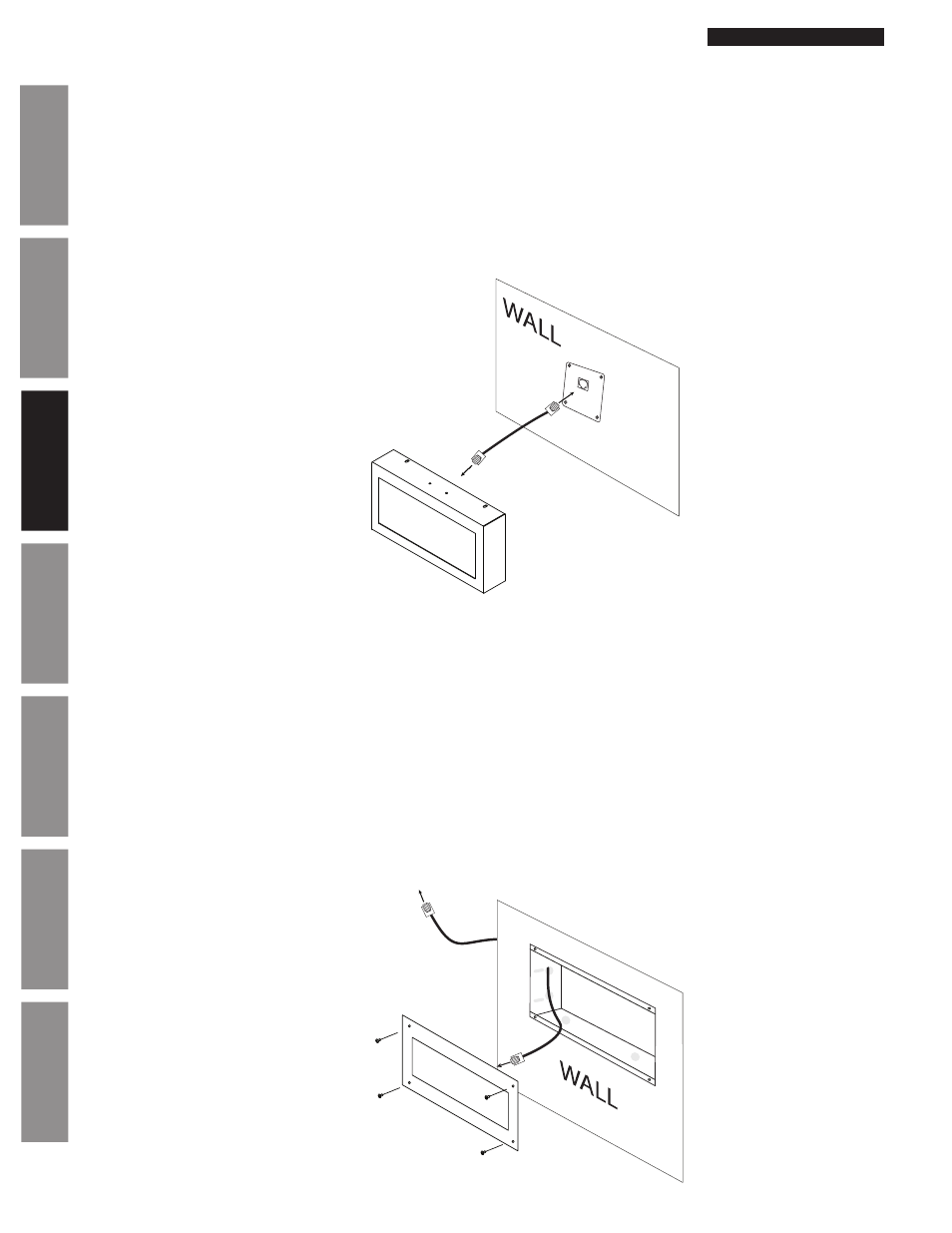

Digital Single Display Surface Mounting
Digital Single Display Flush Mounting
CAUTION: RISK OF ELECTRICAL SHOCK - Disconnect and lock out power to the electrical box before installing or servicing the clock.
u
Remove the four sheet metal screws that hold the cover assembly and enclosure base together. Be sure to keep the sheet metal
screws for reassembly.
v
Mount the enclosure base into the wall.
Opening for 2.5" four and six digit is 14.5" x 5.5" x 2.635".
Opening for 4", four digit is 18.1" x 7.4" x 2.635"
w
Run CAT 5 or higher Ethernet patch cable from a PoE switch or PoE injector through the enclosure base.
x
Connect the patch cable to the clock. Route field wiring away from sharp projections, corners and internal components.
y
Re-attach the cover assembly to the enclosure base using the sheet metal screws removed in Step 1.
z
Confirm correct operation of the clock.
n
Note: Time format (12 or 24 hour) for American Series Wireless Digital Clocks is set at the SiteSync IQ system controller. The format
displayed on the system controller will display on the digital clocks.
