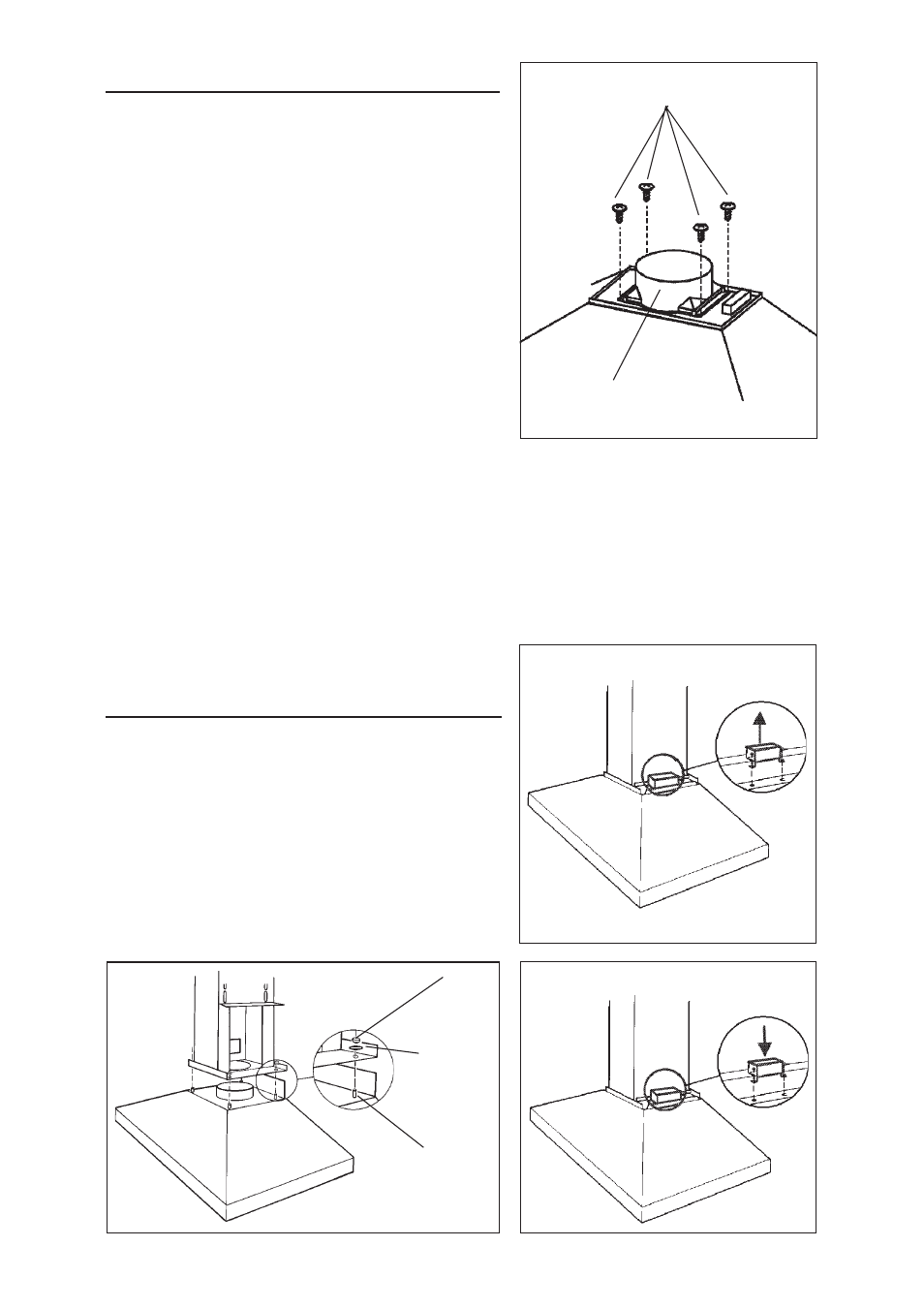

INSTALL DUCT COLLAR
1. Fix the discharge collar onto the hood; it
must be fixed either by means of 4
mounting screws (3,9x9,5mm).
MOUNTING SCREWS
(3.9x9.5mm)
DISCHARGE COLLAR
MOUNT HOOD TO SUPPORT
FRAME
1. Before mount hood to support frame remove
the electrical box.
2. Mount hood to support frame.
3. Insert four (4) bolts through the top of the
hood - from the inside.
4. Use four (4) nuts and 4 washers (D.6.4mm)
to secure hood to support frame as shown.
5. Replace electrical box.
BOLT
NUT
WASHER
(D. 6.4MM)
