Installing the TPM

Attention: Do not open your server or attempt any repair before reading and understanding “Safety information”
on page iii and “Guidelines” on page 61.

Before you begin, print all the related instructions or ensure that you can view the PDF version on another
computer for reference.

Notes:

• Use any documentation that comes with the TPM and follow those instructions in addition to the

instructions in this topic.

• Depending on the model, your server might look slightly different from the illustration in this topic.

To install the TPM, do the following:

1. Remove all media from the drives and turn off all attached devices and the server. Then, disconnect all

power cords from electrical outlets and disconnect all cables that are connected to the server.

4. Remove the riser card assembly 1 and 2 if needed. See “Replacing the riser card assembly” on

5. Touch the static-protective package that contains the TPM to any unpainted surface on the outside of

the server. Then, take the TPM out of the package.

Note: Carefully handle the TPM by its edges.

6. Locate the TPM connector on the system board and then insert the TPM into the TPM connector

on the system board.

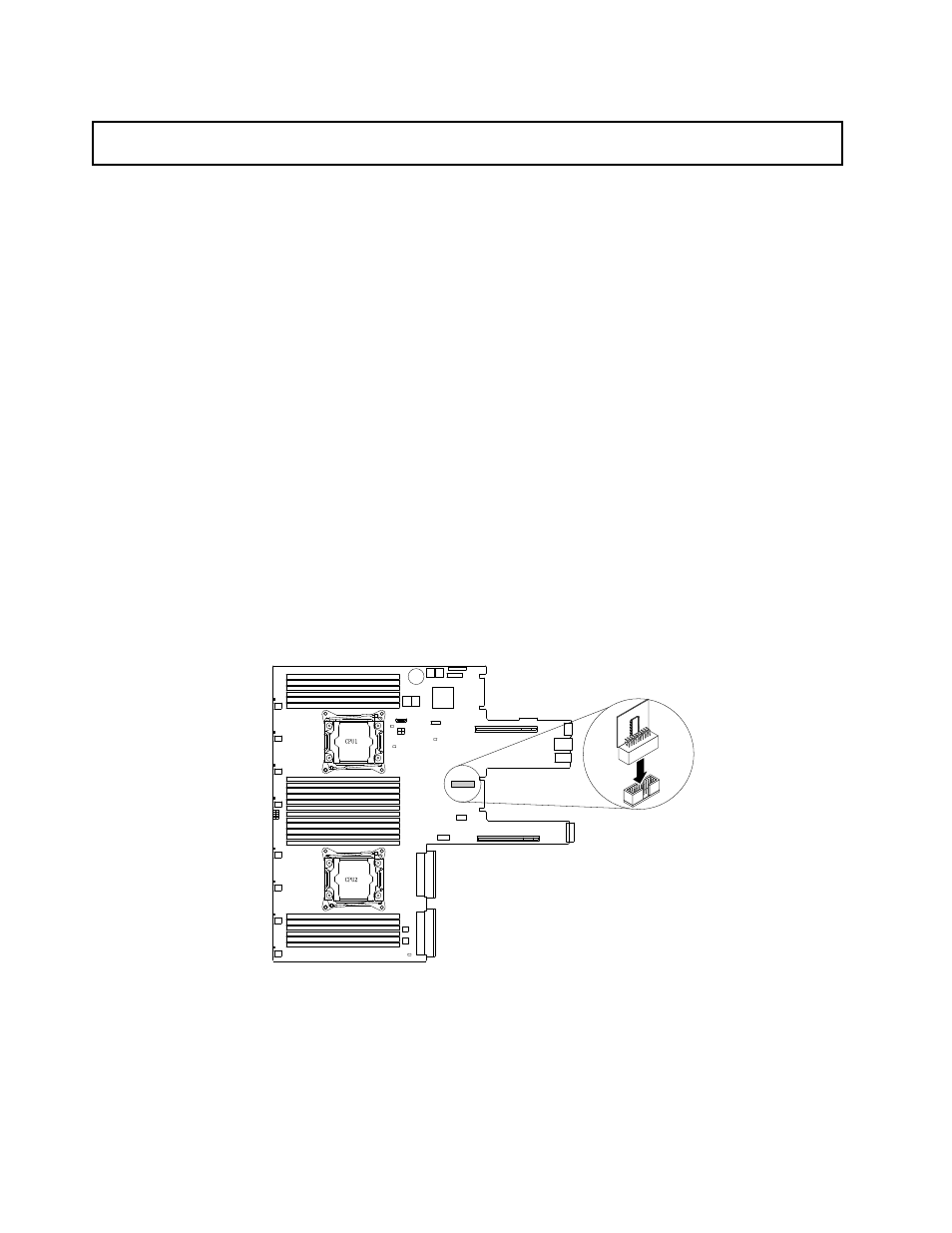

Figure 42. Installing the TPM

What to do next:

• To work with another piece of hardware, go to the appropriate section.

• To complete the installation, go to “Completing the parts replacement” on page 144. Then, you can

configure the TPM function in the Setup Utility program. See “Configuring the TPM function” on page 54.
