Notes:

• You can install two ThinkServer RAID Super Capacitor Modules in your server.

• Use any documentation that comes with the ThinkServer RAID Super Capacitor Module and follow those

instructions in addition to the instructions in this topic.

To install the ThinkServer RAID Super Capacitor Module, do the following:

1. Remove all media from the drives and turn off all attached devices and the server. Then, disconnect all

power cords from electrical outlets and disconnect all cables that are connected to the server.

4. Touch the static-protective package that contains the ThinkServer RAID Super Capacitor Module to

any unpainted surface on the outside of the server. Then, take the ThinkServer RAID Super Capacitor
Module out of the package.

5. Locate the place for installing the Super Capacitor Module in the server. See “Server components”

6. Note the orientation of the ThinkServer RAID Super Capacitor Module. Then, lower the Super Capacitor

Module and gently slide it until it is secured by the mounting studs on the chassis.

Note: Depending on your server model, refer to one of the following illustrations below.

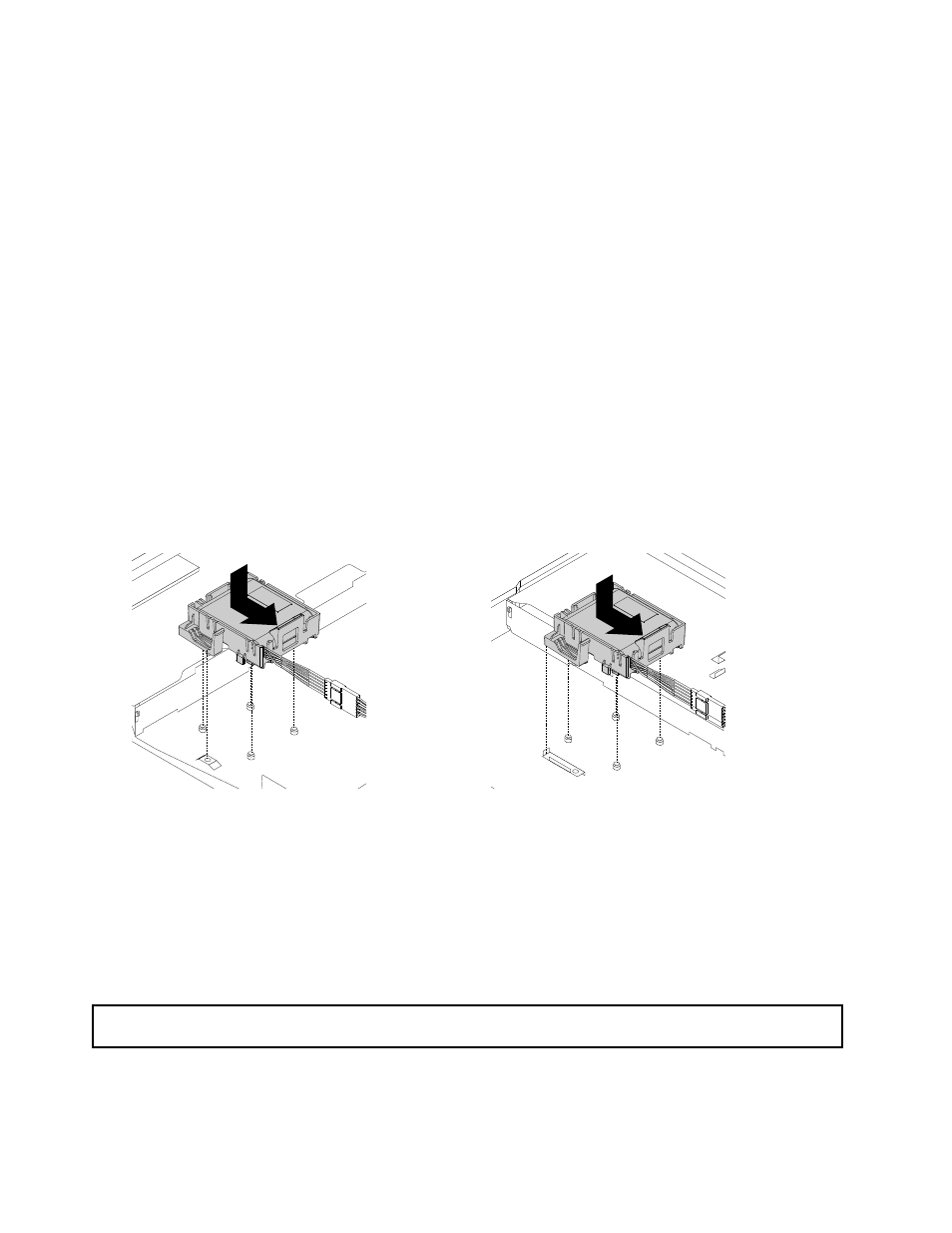

Figure 55. Installing the ThinkServer RAID Super Capacitor Module

7. Connect the ThinkServer RAID Super Capacitor Module to a RAID card.

What to do next:

• To work with another piece of hardware, go to the appropriate section.

Removing the ThinkServer RAID Super Capacitor Module

Attention: Do not open your server or attempt any repair before reading and understanding “Safety information”
on page iii and “Guidelines” on page 61.

Before you begin, print all the related instructions or ensure that you can view the PDF version on another
computer for reference.
